Quadro completo de contagem e distribuição Hager universZ ZB323T15T 1100x550x205mm classe de proteção II

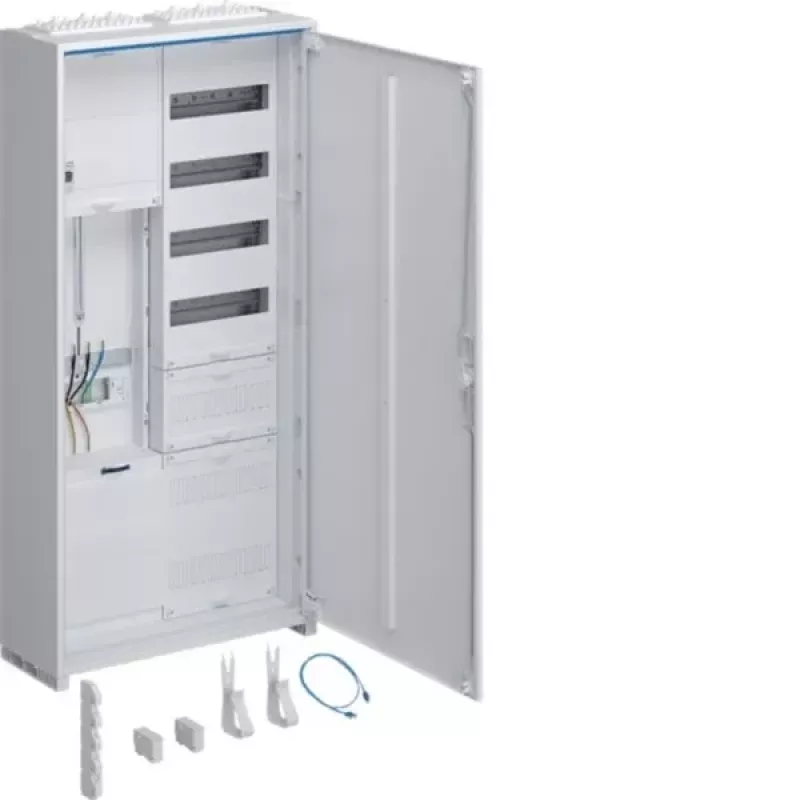

The Hager universZ Complete Meter and Distribution Cabinet ZB323T15T is a high-quality enclosure designed for efficient and safe electrical distribution in residential and commercial buildings. With its robust steel sheet construction and Protection Class II (double insulated), this cabinet ensures reliable performance and user safety. The cabinet measures 1100x550x205mm and features a sleek RAL 9010 (Pure White) finish, making it suitable for various installation environments.

Advantages

This cabinet offers exceptional flexibility with support for surface, flush, or partially recessed mounting (accessories required). It provides ample space for metering and distribution, featuring 3 meter fields and 2 distribution fields with 5 rows each, accommodating up to 120 module units (TE). The integrated 5-pole busbar system simplifies wiring and ensures efficient power distribution up to 63 A rated current. The steel door adds durability and security, while the IP31 degree of protection guards against dust and dripping water.

Suitable for

• Residential electrical installations requiring multiple meter and distribution circuits
• Commercial buildings where modular and expandable distribution is needed
• Applications demanding double insulation (Protection Class II) for enhanced safety

Key specifications

• Product Type: Complete Meter and Distribution Cabinet
• Series: universZ
• Protection Class: II (Double Insulated)
• Degree of Protection: IP31
• Material: Steel Sheet
• Colour: RAL 9010 (Pure White)
• Mounting Type: Surface, Flush, or Partially Recessed (with accessories)
• Number of Meter Fields: 3
• Number of Distribution Fields: 2
• Rows per Distribution Field: 5
• Module Units (TE) per Row: 12
• Total Module Units (TE): 120
• Rated Current (In): Up to 63 A
• Rated Voltage (Un): 230/400 V AC
• Door Type: Steel Door
• Busbar System: 5-pole
• Standards: DIN VDE 0603-1, DIN 43870-1

Recommendations

For optimal installation, use appropriate mounting accessories for flush or partially recessed mounting. Ensure compliance with local electrical regulations. This cabinet is ideal for new constructions or upgrades where modularity and safety are priorities.
