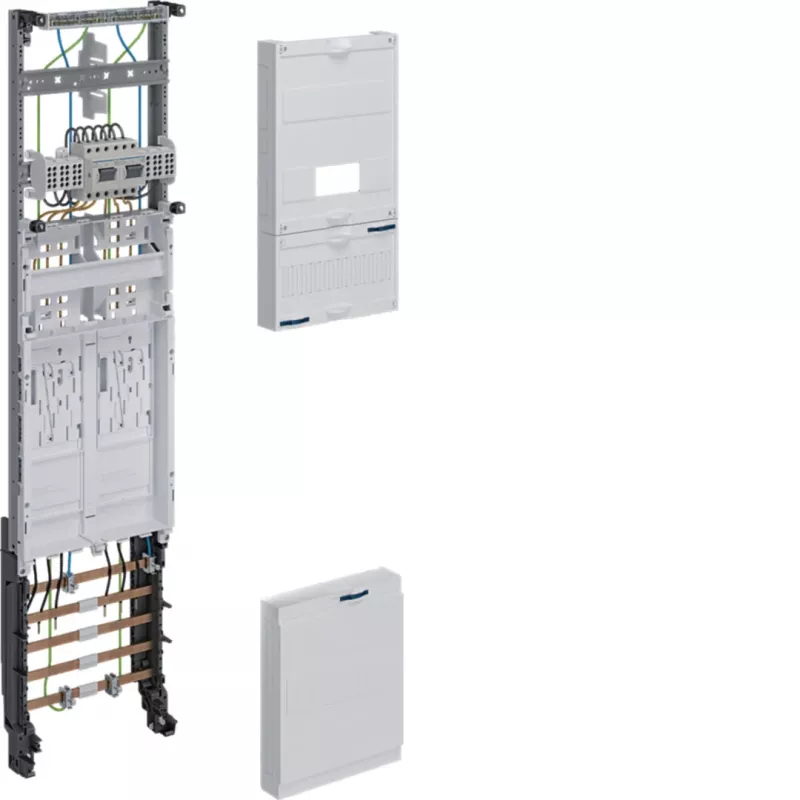

Quadro de contadores completo Hager univers Z 2x ZH3EL22T BKE-I 1050mm

For electricians and panel builders fitting out residential or light commercial distribution boards, the Hager univers Z complete meter panel provides a pre-wired, ready-to-install solution for two meter positions. This unit integrates BKE-I mounting for modern eHZ meters and 3-point mounting for conventional meters, all within a compact 1050 mm high field. The galvanized steel construction ensures durability, while the included busbar system and connection compartments simplify wiring and reduce installation time.

Key specifications

• Number of meter positions: 2
• Meter mounting: BKE-I (eHZ) and 3-point
• Field dimensions: 1050 mm height x 250 mm width
• Upper connection compartment: 3 PLE
• APZ space: 3 PLE
• Lower connection compartment: 3 PLE
• Busbar system: 5-pole, 250 A rated
• Rated current: 63 A
• Protection class: IP2XC (when installed in suitable enclosure)
• Material: Galvanized sheet steel
• Compliance: VDE-certified, meets TAB requirements

Why choose it

This panel is engineered for efficiency and compliance. Pre-wired meter connections save valuable time on site, and the inclusion of an APZ space ensures adherence to current utility requirements. The robust galvanized steel frame withstands the rigors of installation and provides long-term reliability.

Ideal use cases

• Residential distribution boards with two dwelling units
• Light commercial installations requiring dual metering
• Upgrades to eHZ meter systems in existing buildings
• New construction projects following TAB guidelines

Good to know

The Hager univers Z series is designed for seamless integration with Hager distribution cabinets. The panel's 250 mm width matches standard mounting rails, and the 1050 mm height fits common cabinet sizes. Always install in a suitable enclosure to achieve the specified IP2XC protection.
