Quadro elétrico EMITER ligado DCAC Hermetic IP65 EMITTER com descarregador de sobretensão DC Dehn 1000V Tipo 2, 2 x PV-String, 2 x MPPT // og. AC Dehn Tipo 2, 16A 3-Ph, RCD Tipo A 40A/300mA

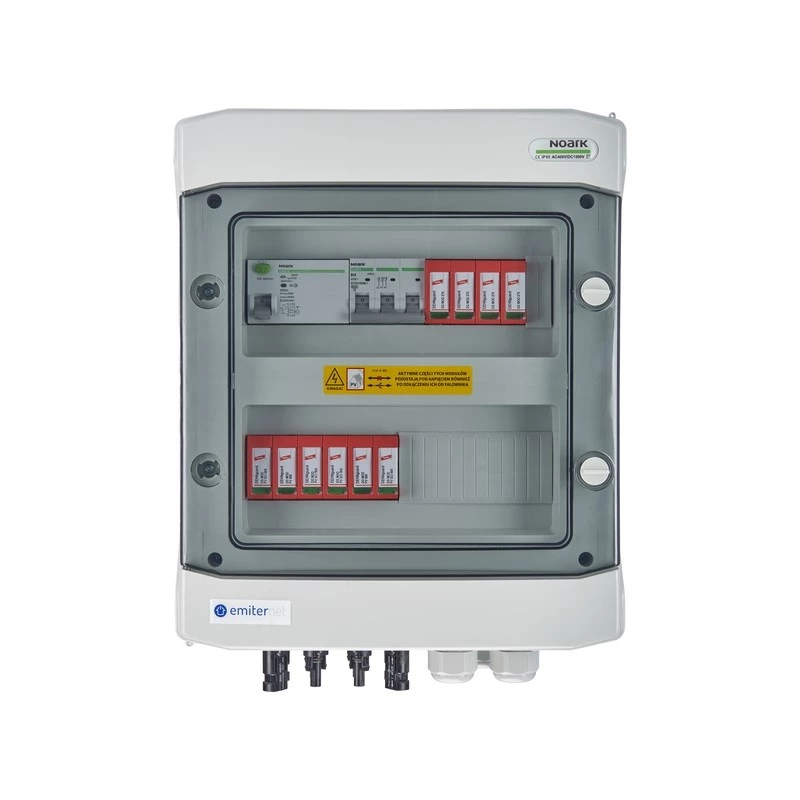

The EMITER Switchgear Attached DCAC Hermetic IP65 EMITTER is a robust and reliable solution for photovoltaic systems, integrating both DC and AC surge protection in a single hermetic enclosure. Designed for outdoor use with IP65 rating, it ensures durability and safety in harsh environments. This unit features DC surge arrester Dehn 1000V type 2 for two PV strings and two MPPT trackers, as well as AC surge arrester Dehn type 2, 16A 3-phase, and RCD type A 40A/300mA. Ideal for solar installations requiring comprehensive protection against overvoltages and earth faults.

Advantages

Combines DC and AC protection in one compact unit, saving space and simplifying installation. Hermetic IP65 enclosure provides excellent weather resistance. High-quality Dehn surge arresters ensure reliable performance and long service life. Suitable for both residential and commercial PV systems.

Suitable for

• Photovoltaic systems with up to 2 PV strings and 2 MPPT inputs
• Outdoor installations requiring IP65 protection
• Systems needing Type 2 surge protection on DC and AC sides
• 3-phase AC networks with 16A rating and RCD protection

Key specifications

• Brand: EMITER
• Model: EM-528_DCAC
• EAN: 5904473570860
• DC Surge Arrester: Dehn 1000V Type 2, 2 x PV string, 2 x MPPT
• AC Surge Arrester: Dehn Type 2, 16A 3-phase
• RCD: Type A, 40A/300mA
• Enclosure: Hermetic, IP65

Recommendations

Ensure compatibility with your PV system configuration. Professional installation recommended. Verify local electrical codes and standards.
