Rack de parede EFB Elektronik 691712FTS.2

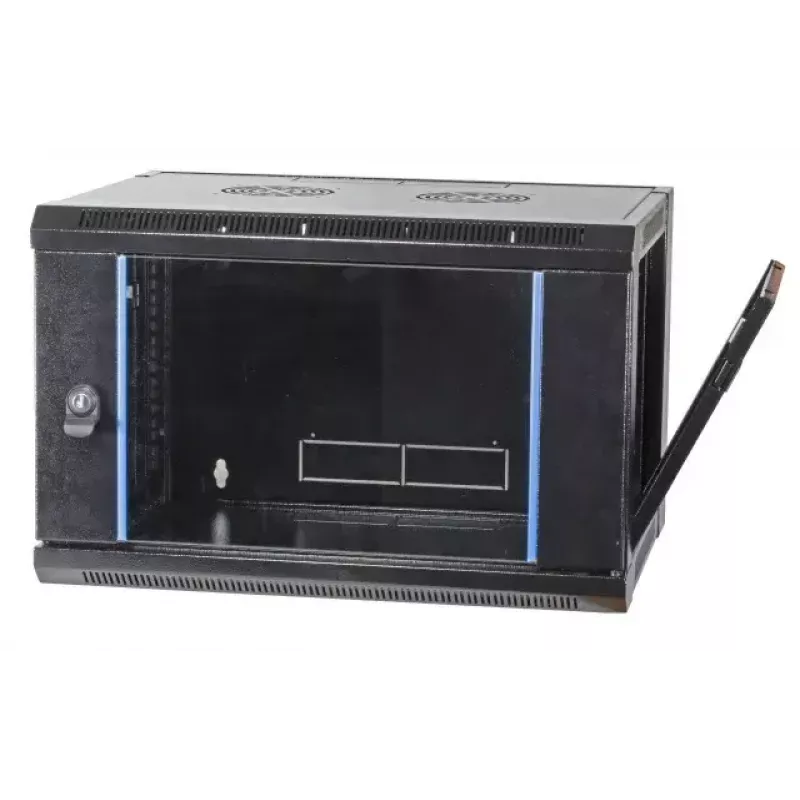

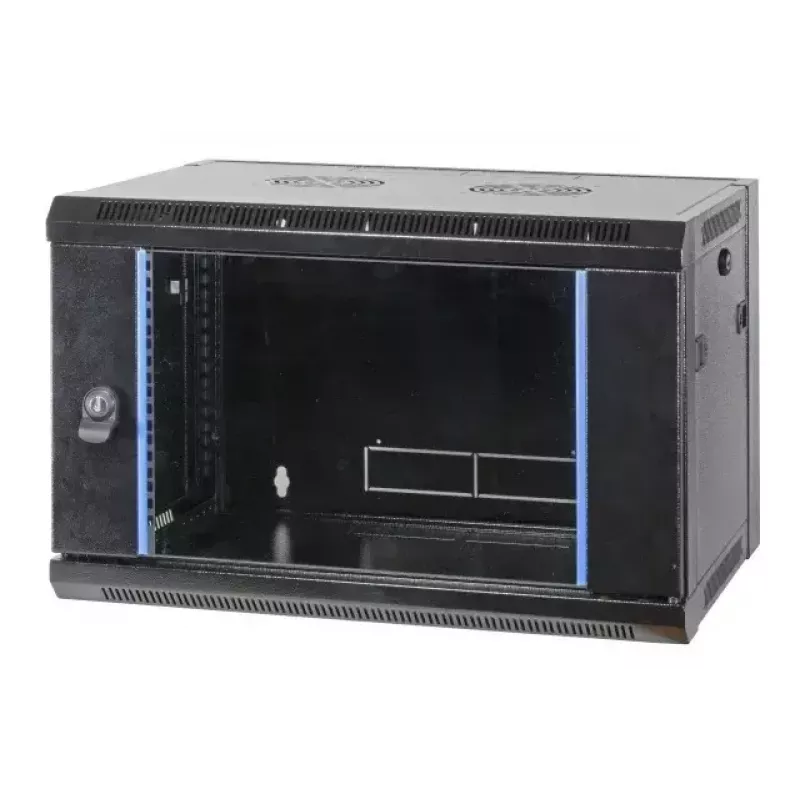

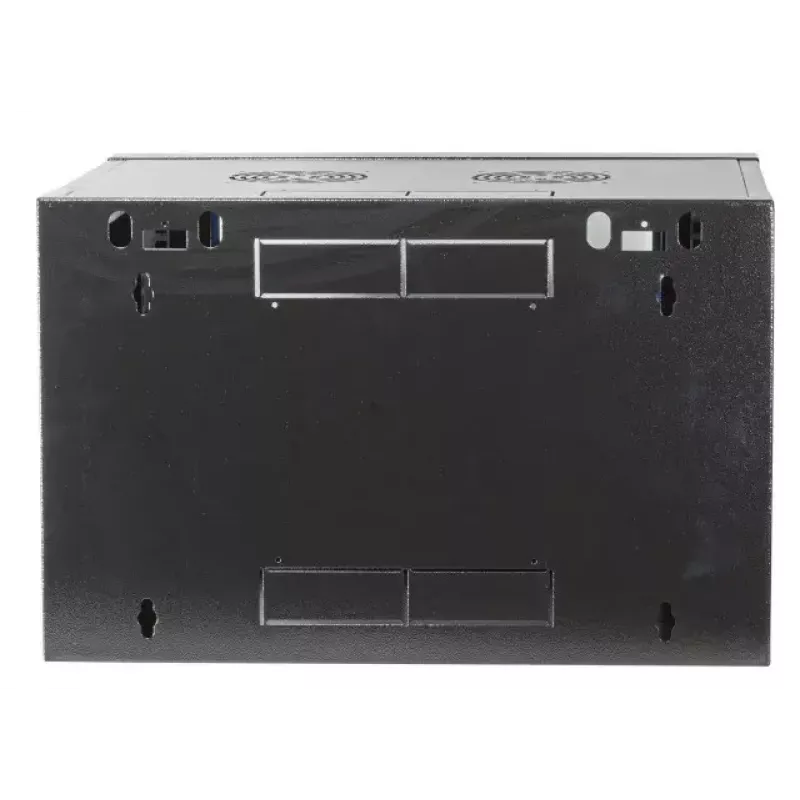

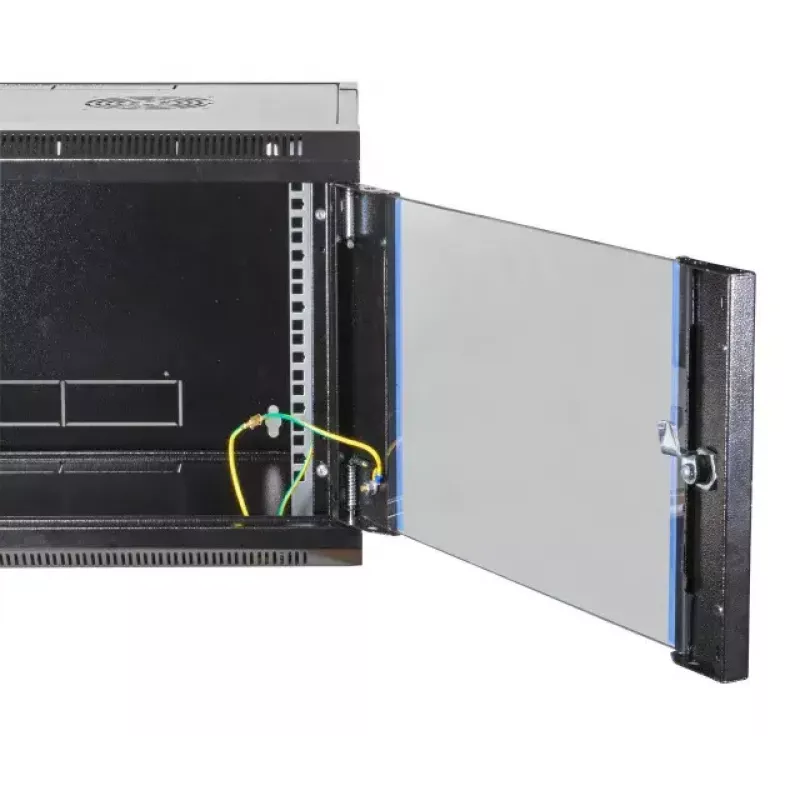

Wall mounted rack EFB Elektronik 691712FTS.2 is a steel-sheet cabinet with a screwed frame, designed for secure wall installation and efficient use of indoor space. The cabinet is supplied unassembled, self-ventilated and has a removable side wall with a quick fastener. Roof, bottom and rear wall include pre-punched openings for cable entry (230 x 41 mm), and the roof is prepared to accept 2 single fans (Art.-No. 691664). Inside there are two front-sided, depth-adjustable 19" rails. The front door features a window of certified safety glass (4 mm) and a lock. Cabinet parts are completely earthed, the paint finish is RAL9005 (jet black) and the maximum static load is 60 kg. Protection degree is IP20. Supplied unassembled in transport packaging; included accessories: 2 keys.

Advantages

The EFB Elektronik 691712FTS.2 provides a compact wall-mounted solution with a robust steel-sheet housing and earthable components for safe operation. Removable side wall with a quick fastener and depth-adjustable 19" rails allow flexible installation and easy access for maintenance. Pre-punched cable entries and provision for mounting two fans on the roof simplify cable management and cooling upgrades. Delivered unassembled to reduce transport volume and protected in transport packaging.

Suitable for

• Mounting network switches, patch panels and small servers in offices or comms rooms
• Indoor IT installations requiring IP20 protection
• Environments where wall-mounted, space-saving rack enclosures are needed

Key specifications

• Brand: EFB Elektronik
• Model: 691712FTS.2
• Width: 570 mm
• Depth: 600 mm
• Height: 635 mm
• Material: Steel sheet housing with screwed frame
• Protection class: IP20
• Max. load: 60 kg
• Front door: Safety glass window (4 mm) with lock
• Included accessories: 2 keys
• Delivery: Unassembled in transport packaging

How to use

Assemble the cabinet following the supplied instructions and fix it to a suitable load-bearing wall using appropriate anchors and fixtures (not included). Install network devices on the front-sided 19" rails and adjust rail depth as required. Route cables through the pre-punched openings (230 x 41 mm) in the roof, bottom or rear wall. If additional airflow is required, mount up to two single fans (Art.-No. 691664) on the roof openings. Ensure all cabinet parts are properly earthed before powering connected equipment.

Recommendations

Use the cabinet indoors only where IP20 protection is sufficient. Do not exceed the maximum load of 60 kg. For reliable fixation and safety, use appropriate wall anchors and ensure a qualified technician performs earthing and final installation checks.
