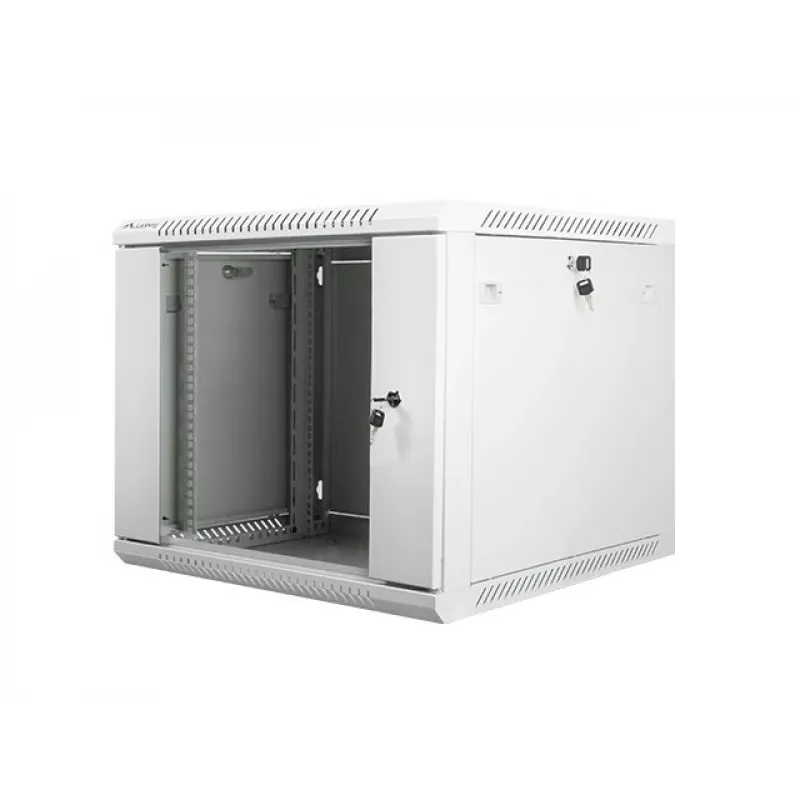

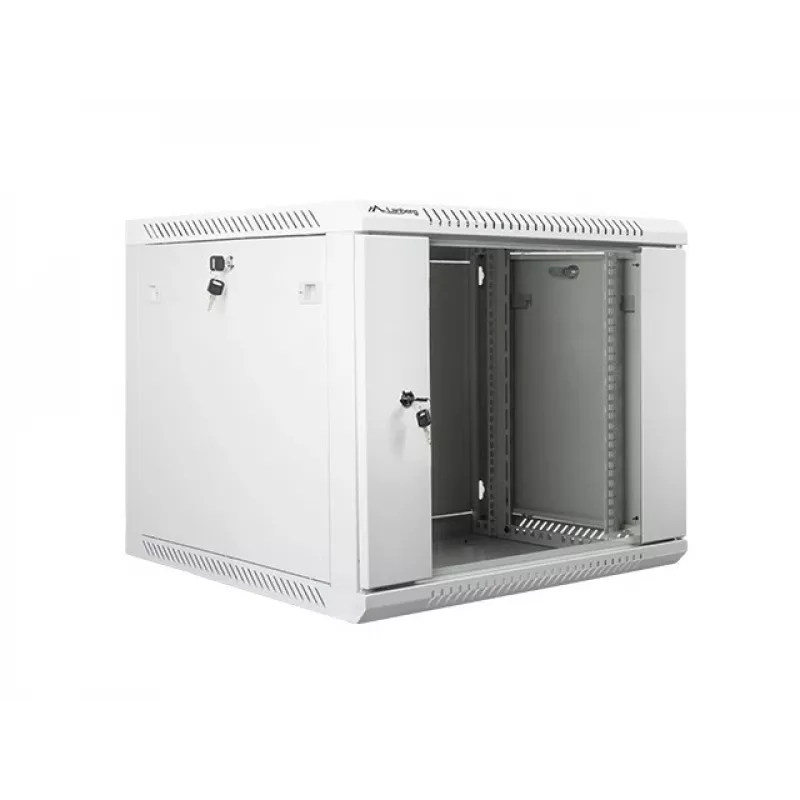

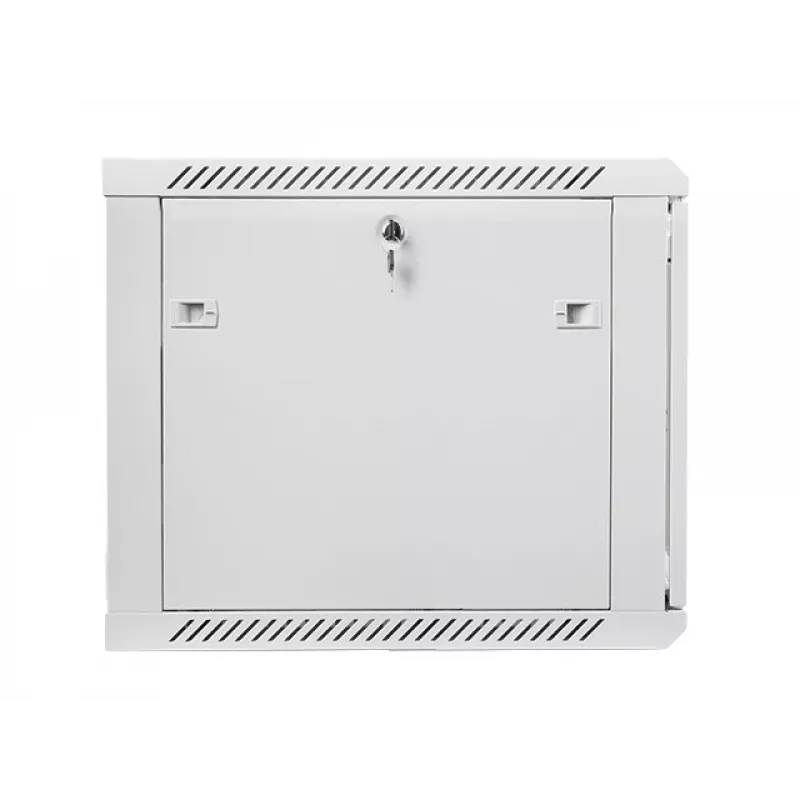

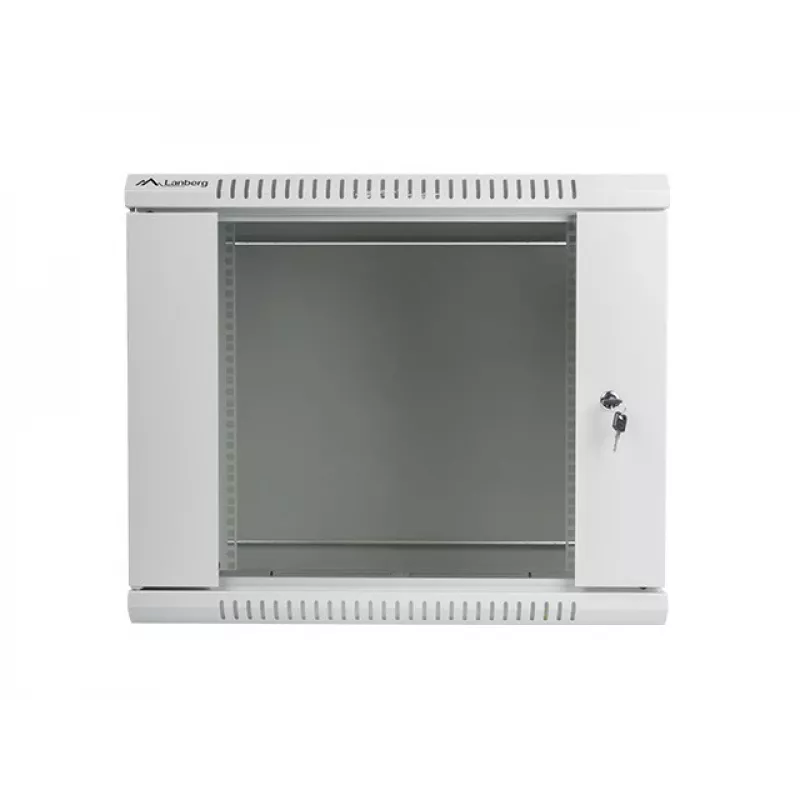

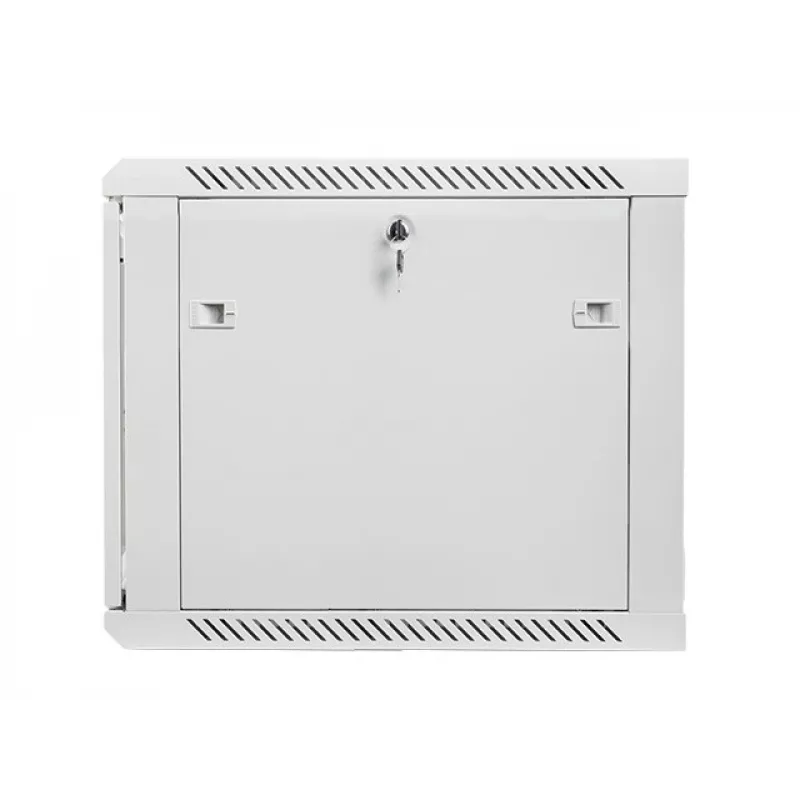

Rack de parede Lanberg WF01-6609-10S

When floor space is at a premium, keeping network and low-voltage equipment organized and secure becomes a real challenge. The Lanberg WF01-6609-10S wall-mounted rack solves this by lifting your 19-inch gear off the floor and onto the wall, freeing up valuable room while maintaining easy access. This 9U cabinet is built from high-grade cold-rolled steel with a grey finish, offering a robust and compact solution for small to medium installations.

Who is it for

This rack is ideal for small and medium businesses, server rooms with limited space, CCTV and IP surveillance setups, and low-voltage systems such as alarm, access control, and fire protection. It suits IT professionals and installers who need a dependable, space-saving enclosure for patch panels, switches, and other rack-mount equipment.

Main features

• 9U, 19-inch wall-mounted design with a compact 600 x 600 mm footprint
• Sturdy cold-rolled steel construction supports up to 60 kg of equipment
• IP20 protection against solid objects, suitable for indoor use
• Front door opens and rotates up to 180° with a lock for easy access and security
• Removable side panels simplify installation and maintenance
• Top and bottom cable entry panels with blanking plates for clean cable management
• Supplied flat-pack with M6 cage nuts, rail mounts, and mounting kit for quick assembly
• Passive ventilation with fan-ready top and bottom panels

Specifications

• Rack capacity: 9U
• External dimensions (W x D x H): 600 x 600 x 507 mm
• Maximum load capacity: 60 kg
• Weight: 21 kg
• Material: High-quality cold-rolled steel (mounting profile 1.5 mm, other parts 1.2 mm)
• Colour: Grey
• IP rating: IP20
• Front door: Steel with lock, opens 180°
• Side panels: Removable
• Cable entry: Top and bottom, adjustable
• Compliance: ANSI/EIA RS-310-D, IEC 60297-2, DIN 41494-1
• Included accessories: Mounting kit, 2 keys for front door, 10x M6 cage nuts

Tips

Before mounting, ensure the wall can support the combined weight of the cabinet and equipment. Use appropriate wall anchors and fixings for your wall type. Assemble the flat-pack on a clean, flat surface following the included instructions. For optimal airflow, leave space above and below the cabinet for ventilation, and consider adding fans if you plan to install heat-generating equipment.
