Rack de parede ROLINE Pro 7U 600x600 LxP duas partes oscilante preto, IP20, 50 kg

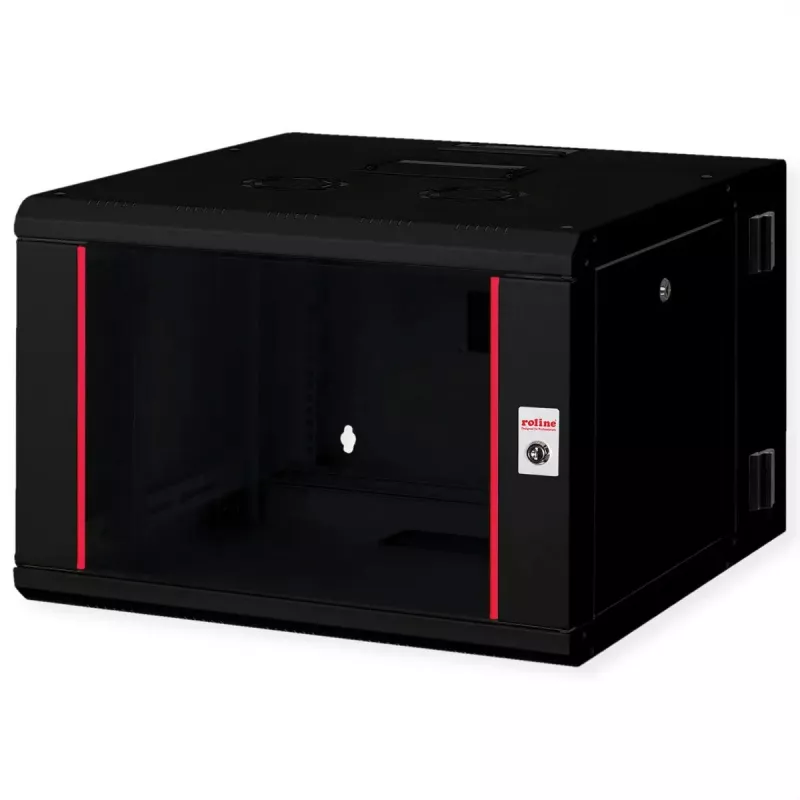

The ROLINE Pro wall-mounted rack 7U (600 x 600 mm) is a two-part swivelling steel enclosure designed for flexible network cabling and indoor equipment mounting. It includes galvanised, reversible 19" profile rails adjustable in depth, a lockable removable front door, removable side panels, and built-in provisions for cable entry and fan installation. The frame can be fixed to the wall and then connected to the cabinet or the cabinet can be used free-standing with optional levelling feet or castors. The unit is rated IP20 and supports a maximum load of 50 kg.

Advantages

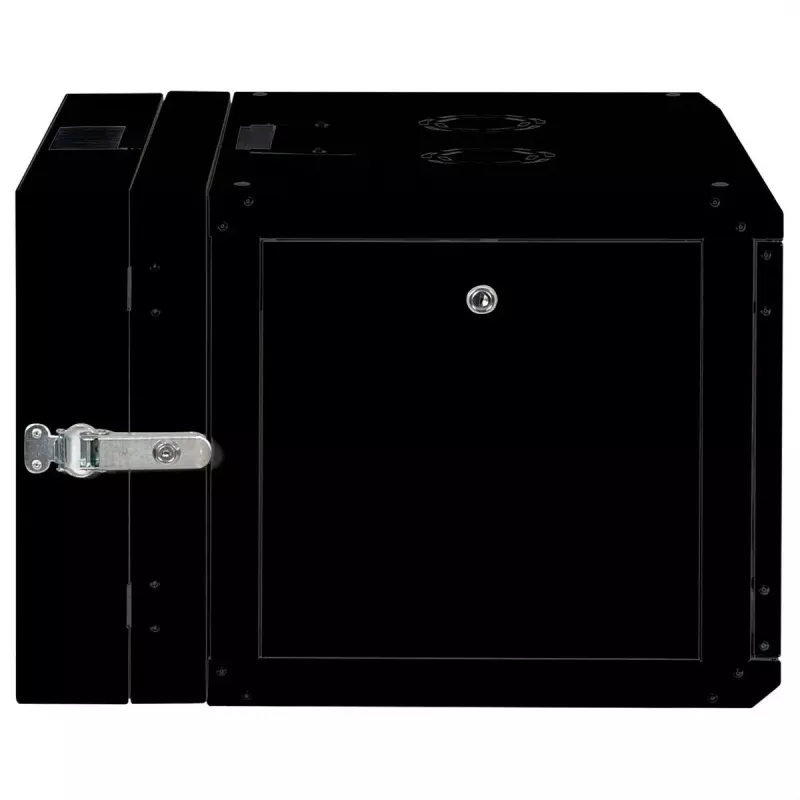

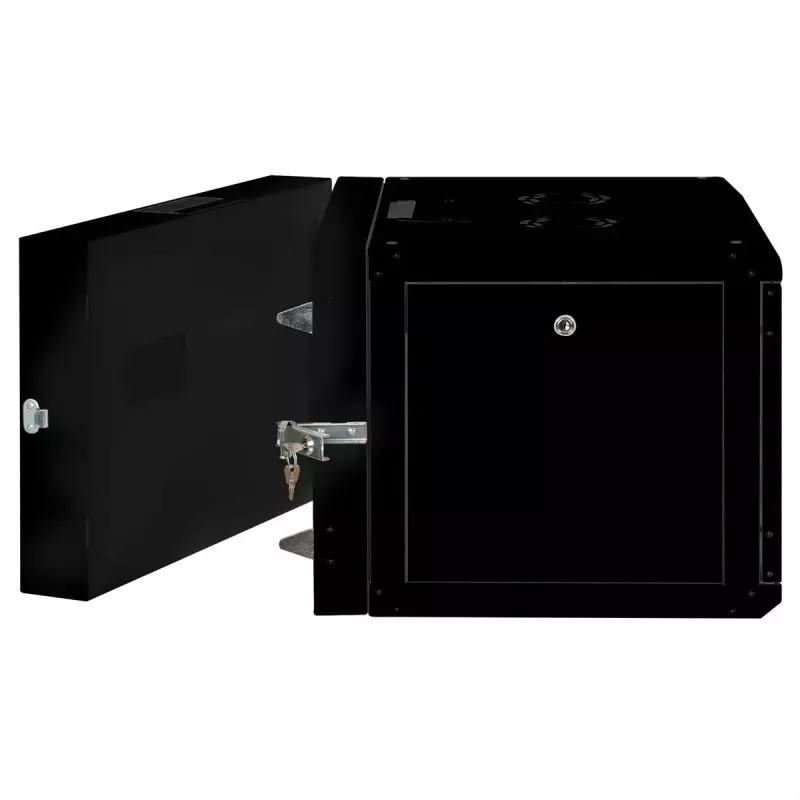

The two-part swivelling construction with an integrated hinge in the rear frame allows the enclosure to fold to the side for improved access to mounted devices. Multiple cable inlets are provided: a sliding cable inlet with foam seal in the roof, punched inlets with plastic covers on the rear panel and base, and brush strips at the top and bottom of the rear frame for tidy cable routing. The roof chassis includes a cut-out for an optional fan module. The robust steel body (sheet thickness up to 1.5 mm) is electrostatically powder-coated in standard grey (RAL 7035) or black (RAL 9005), and the door hinge is reversible.

Suitable for

• Mounting network switches and patch panels in offices or comms rooms
• Small servers, UPS units and edge devices that fit within 7U and the cabinet depth
• Retail or branch installations where wall-mounted racks save floor space
• Environments requiring lockable access for basic physical security

When it may not be suitable

This 7U, 600 x 600 mm enclosure is intended for small installations and has a maximum static load of 50 kg; it is not suitable for heavy server racks or large, high-density equipment. With an IP20 rating it is designed for indoor use and does not provide protection against dust accumulation or water ingress in harsher environments.

Key specifications

• Rack units: 7U
• External footprint (WxD): 600 x 600 mm
• Construction material: steel sheet up to 1.5 mm thickness
• Surface finish: electrostatic powder coating (standard colours: grey RAL 7035, black RAL 9005)
• Load capacity: 50 kg (maximum)
• Protection rating: IP20 (indoor use)
• 19" rails: galvanised, reversible, depth-adjustable
• Doors/panels: lockable removable front door, lockable removable side panels
• Cable management: sliding roof inlet with foam seal, punched inlets with covers, brush strips top and bottom
• Cooling provision: roof cut-out for fan module

How to use

Mount the rear frame of the enclosure on a suitable wall surface in the desired opening direction, then attach the cabinet to the frame. Adjust the depth of the 19" profile rails to match the equipment mounting depth, secure rails and install devices using standard 19" mountings. Use the sliding roof inlet, punched inlets and brush strips to route cables; fit the optional fan module into the roof cut-out if additional ventilation is required. The swivelling design allows folding the enclosure to the side for easier access during installation or maintenance. For free-standing use, install levelling feet or castors if required.

What to consider before purchase

• Confirm device depth and overall dimensions fit within a 600 x 600 mm footprint and 7U height
• Verify total equipment weight does not exceed the 50 kg load limit
• Check that IP20 protection is sufficient for your installation environment (indoor use only)
• Decide whether you need additional cooling (fan module) or mobility (castors)

Recommendations

Use the reversible 19" rails to position heavier items low in the rack and keep cable bundles organized through the roof inlet and brush strips; install a fan module if multiple heat-generating devices are mounted to maintain airflow within the 600x600 enclosure.
