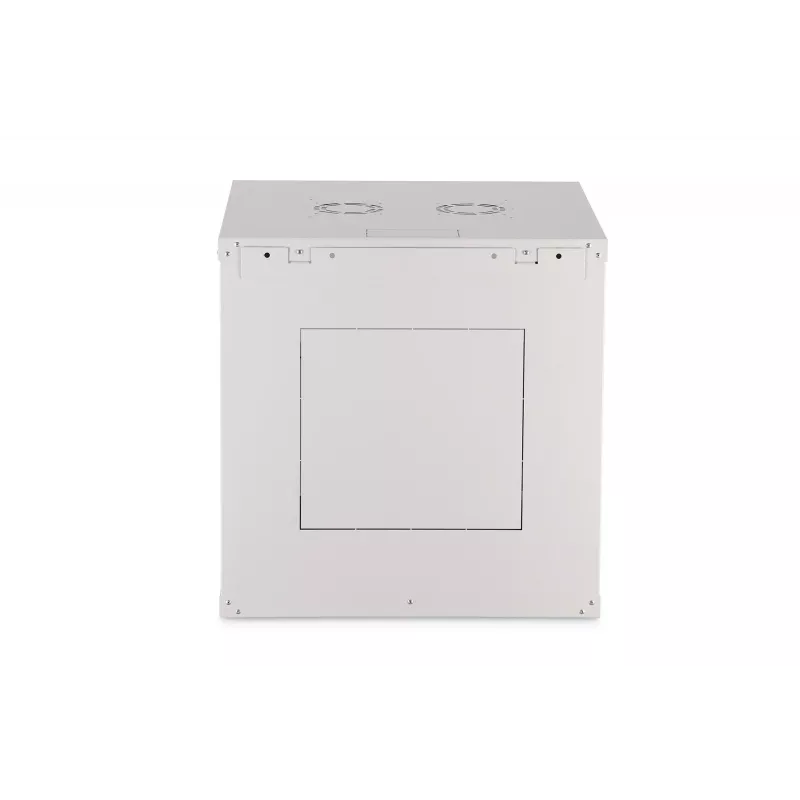

Rack para montagem na parede DIGITUS Dynamic-N 12U 600x600 mm IP20, fechadura com chave, gestão de cabos, desmontado

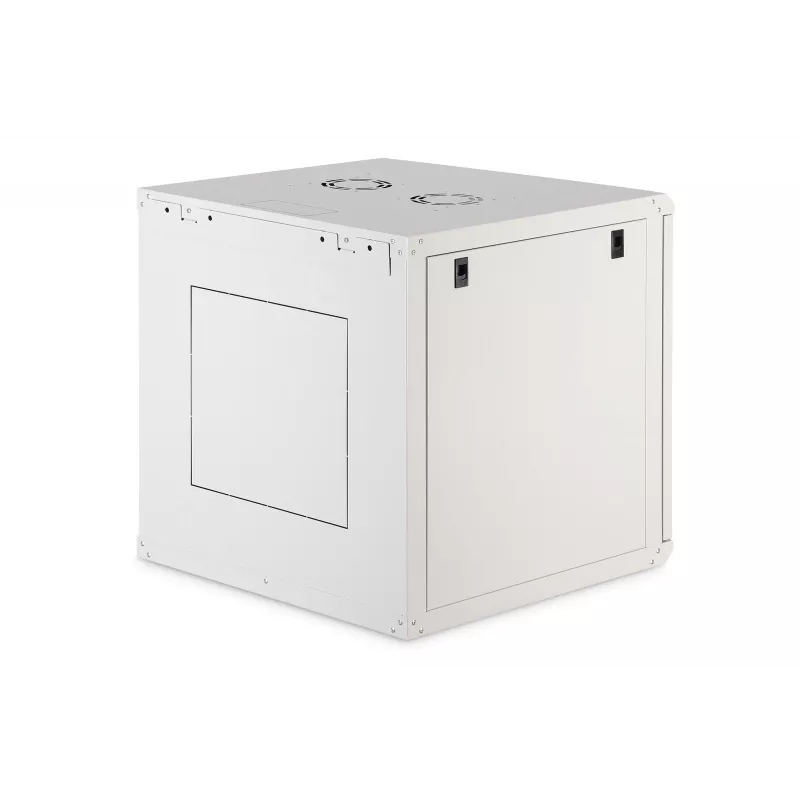

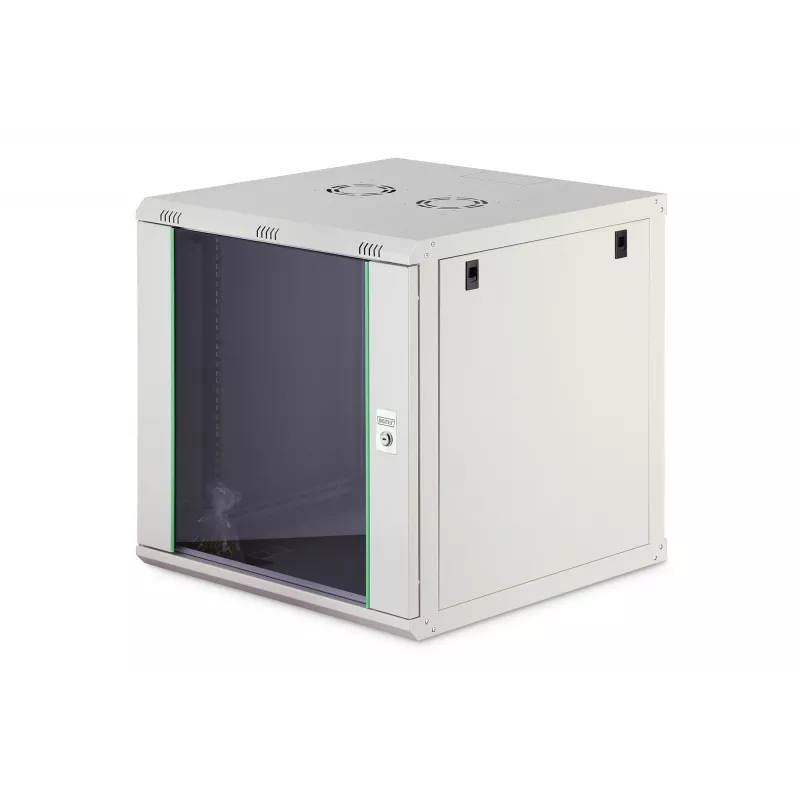

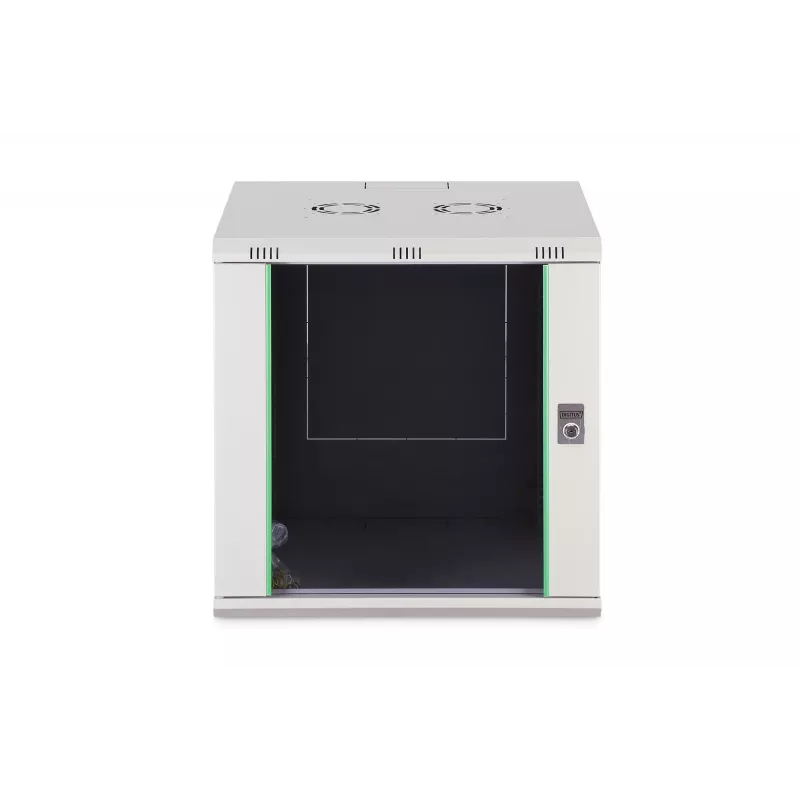

The DIGITUS Dynamic-N wall-mounted rack is a 12U, 19" enclosure designed for network and telecommunication installations. It measures 600 x 600 mm (W x D) with a total height of 607 mm, offers IP20 protection and comes unassembled to optimise transport. The cabinet is made from robust 1.0–1.2 mm sheet steel with an electrostatic powder finish in light grey and includes lockable safety glass front door in a steel frame, removable side panels and a removable back panel for easy access.

Advantages

The unassembled delivery reduces shipping volume and allows quick on-site assembly. Adjustable, galvanized 483 mm (19") front and rear profile rails with readable unit markings support standard 19" equipment and can be set to different installation depths. Pre-punched cable entries in the roof, base and rear plus roof provisions for a fan module and ventilation slots provide options for both passive and active airflow management. Wall mounting is simplified through a supplied mounting plate and clear installation instructions.

Suitable for

• Small server rooms and network closets
• Office communication points and patch panels
• Telecommunication installations requiring a 12U 19" rack
• Environments where compact, wall-mounted enclosures are needed

When it may not be suitable

This cabinet is rated IP20, which protects against solid objects but provides no protection against water; it is therefore not suitable for outdoor use or damp environments. The 12U capacity and maximum standard installation depth (369–470 mm) limit its suitability for larger server equipment or deep network devices.

Key specifications

• Rack units: 12U
• External dimensions (W x D x H): 600 x 600 x 607 mm
• Installation depth for components (standard maximum): 369–470 mm
• Material: 1.0–1.2 mm sheet steel, powder-coated
• Protection rating: IP20

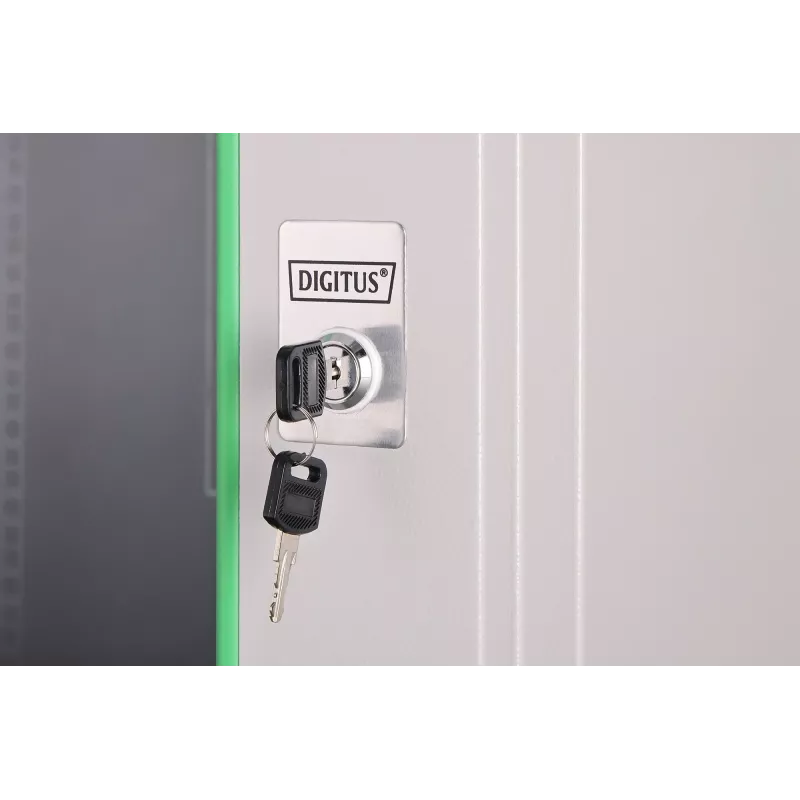

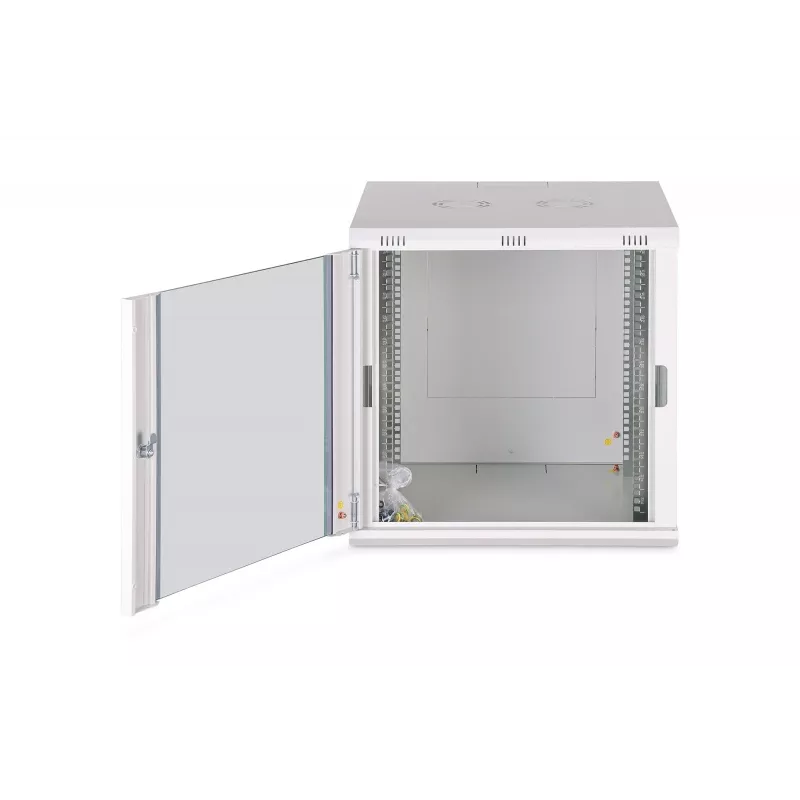

• Front door: Lockable safety glass with steel frame, 230° opening angle, 1-point lock

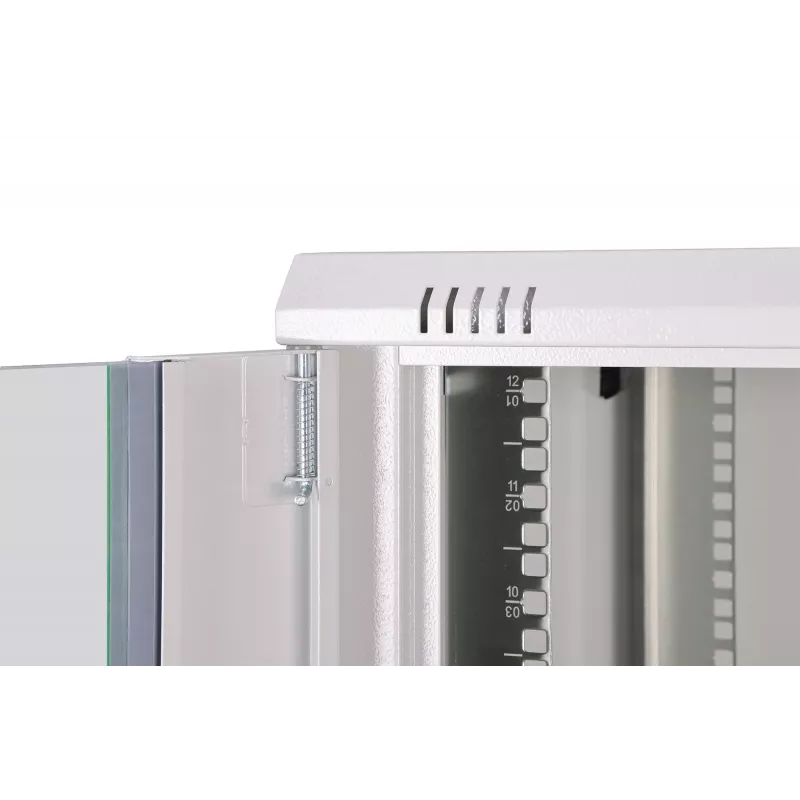

• Profile rails: Galvanized 483 mm (19") at front and rear, depth-adjustable, height-marked

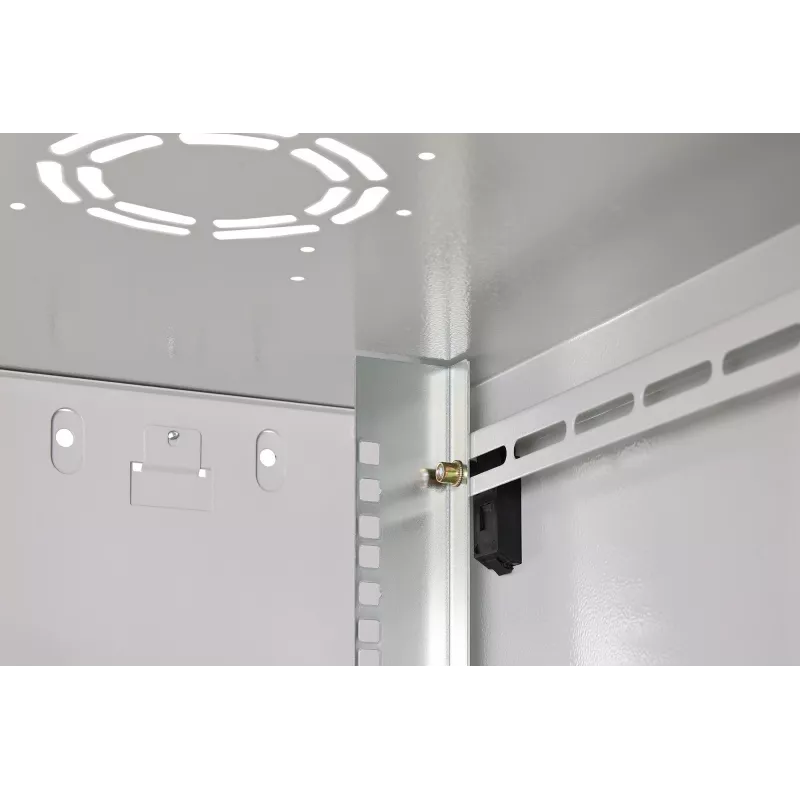

• Ventilation: Pre-punched roof for fan module, ventilation slots for passive/active airflow
• Cable entry: Pre-punched cut-outs at roof, base and rear

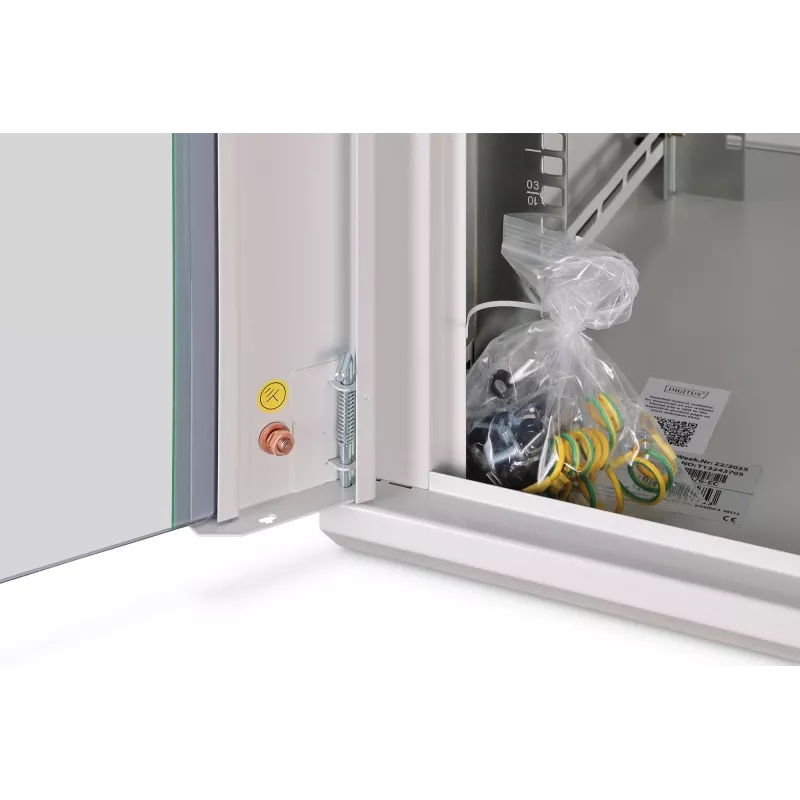

• Earthing points: 4 (base, side panel and front door) with protective caps
• Colour: Light grey
• Weight (packed): 22.6 kg

How to use

Unpack the flat-packed cabinet and follow the enclosed instructions to assemble the roof, base, side panels and front/back doors. Mount the supplied wall plate to a suitable load-bearing wall, then hang and secure the assembled housing onto the plate. Fit the front and rear 19" profile rails to the required depth and install network devices, patch panels or other 19" equipment. Use the pre-punched cable entries for routing cabling and install a fan module into the roof if active ventilation is required. Lock the front door with the supplied key to secure equipment.

What to consider before purchase

• Confirm that IP20 protection is sufficient for the installation environment (not for outdoor or damp locations)
• Check device depths against the available installation depth (369–470 mm)
• Ensure the wall structure can support the cabinet and loaded equipment (mounting plate required)
• Decide whether you need active cooling and, if so, whether a compatible fan module will be installed

Recommendations

Install the mounting plate into solid wall material or suitable anchors, distribute equipment weight evenly across the rails, and use the pre-punched entries and cable management to keep airflow unobstructed. For improved cooling, fit a compatible fan module in the roof and ensure ventilation slots remain clear.
