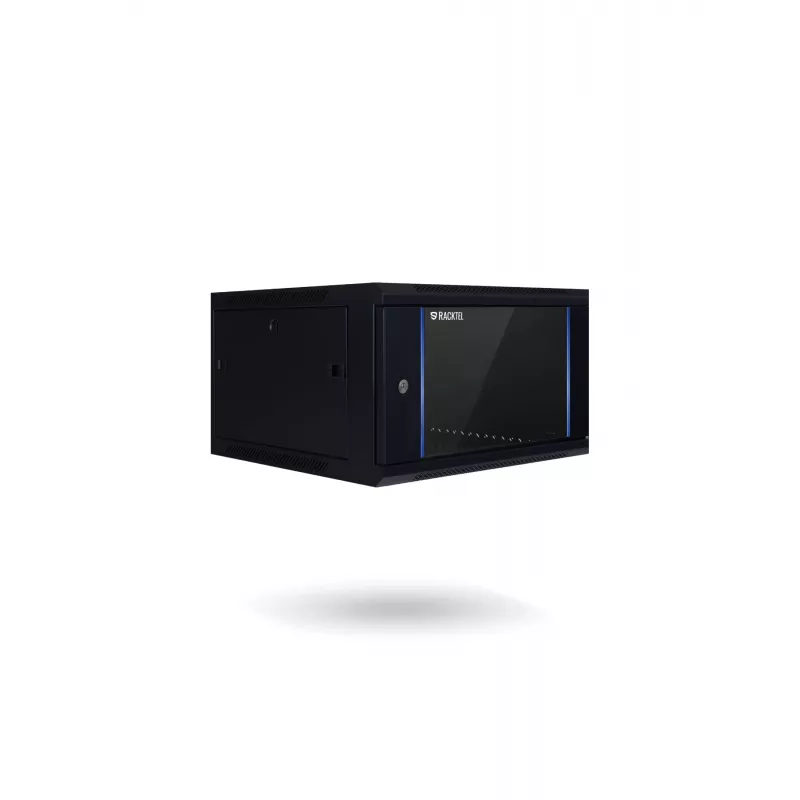

RACKTEL RL-4504WRE armário de parede 4U 600x450, preto, porta em vidro de segurança

The RACKTEL RL-4504WRE is a high-quality 4U wall-mounted rack cabinet designed for secure and organized installation of 19-inch network and IT equipment. With external dimensions of 600x450x230 mm, it offers a compact yet spacious solution for small to medium-sized setups. The cabinet features a lockable tempered glass front door, removable side panels, and cable entry points with brush panels for efficient cable management. Constructed from cold-rolled steel with a durable powder-coated finish in black (RAL 9004), it provides a load capacity of up to 60 kg. Ideal for use in server rooms, offices, or data centers where space is at a premium.

Advantages

This wall-mount rack cabinet combines robust construction with practical features. The tempered glass door allows easy monitoring of equipment while maintaining security. Removable side panels simplify installation and maintenance. Cable entry points with brush panels keep cables organized and dust-free. The cabinet is delivered as a flat-pack for self-assembly, ensuring cost-effective shipping and easy handling.

Suitable for

• Network switches, patch panels, and routers
• Small servers and UPS units
• Audio/video equipment in commercial or residential settings
• IT installations where floor space is limited

Key specifications

• Rack Units: 4U
• External Dimensions (WxDxH): 600 x 450 x 230 mm
• Internal Rack Standard: 19-inch
• Material: Cold-rolled steel, powder coated
• Front Door: Tempered glass, lockable, 180° opening angle
• Side Panels: Removable
• Cable Entry: Top and bottom with brush panels
• Mounting: Wall-mounted
• Color: Black (RAL 9004)
• Load Capacity: 60 kg
• Protection Rating: IP20
• Rack Profiles: 2 (front, adjustable depth)
• Ventilation: Passive, prepared for 1x 120mm fan (top panel)
• Assembly: Flat-pack (self-assembly required)

Recommendations

For optimal performance, ensure the wall is capable of supporting the cabinet's weight when fully loaded. Use the included mounting kit for secure installation. Consider adding a 120mm fan for active ventilation if deploying heat-generating equipment.
