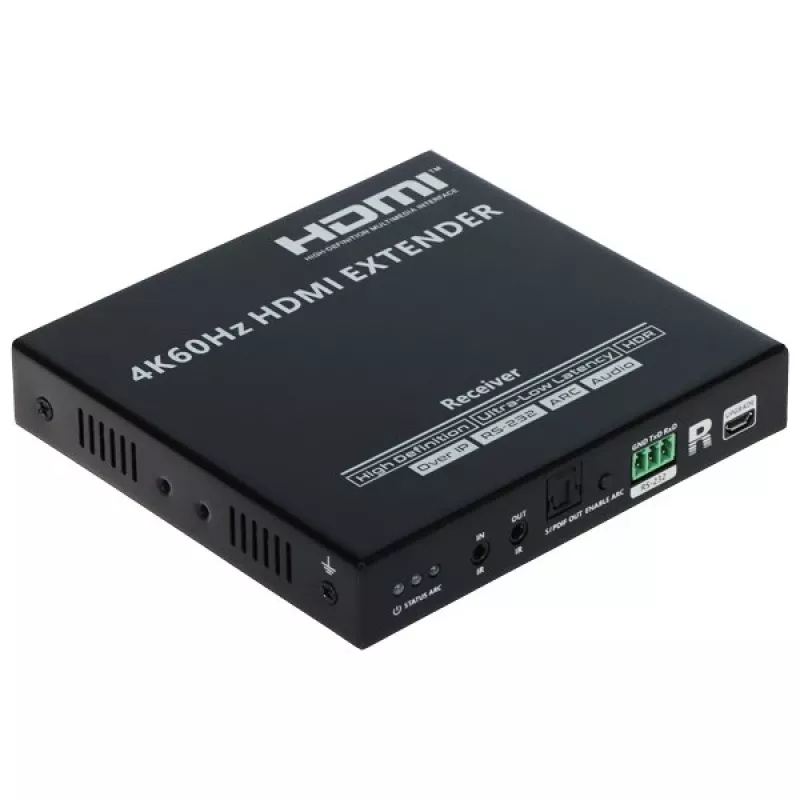

Recetor extensor HDMI 4K@60Hz 70m sobre CAT6/7 PoC IR

The HDMI Extender Receiver is a high-performance solution for extending HDMI signals over long distances. Designed for professional AV installations, this receiver works with a compatible transmitter to deliver uncompressed 4K UHD video and multi-channel audio up to 70 meters (230 feet) via a single CAT6/6A/7 cable. With support for HDMI 2.0, HDCP 2.2, HDR10, and 18 Gbps bandwidth, it ensures stunning picture quality and reliable performance. Power over Cable (PoC) eliminates the need for a local power supply at the receiver, simplifying installation. Built-in IR pass-through allows remote control signals to be sent back to the source device.

Advantages

This extender offers near-zero latency, making it ideal for real-time applications such as live events, gaming, or video conferencing. The metal casing provides durability and effective heat dissipation. Automatic EDID pass-through ensures seamless compatibility with various displays and sources. PoC technology reduces cable clutter and power outlet requirements, saving time and cost during setup.

Suitable for

• Home theater systems requiring long cable runs
• Digital signage and commercial displays
• Conference rooms and lecture halls
• Retail and hospitality AV installations
• Broadcast and live event production

Key specifications

• Product Type: HDMI Extender Receiver
• Max Resolution: 4K@60Hz (UHD)
• Max Transmission Distance: 70 meters (230 feet)
• Supported Cable Type: CAT6 / CAT6A / CAT7
• HDMI Version: HDMI 2.0
• HDCP Support: HDCP 2.2 / HDCP 1.4
• HDR Support: HDR10
• Color Depth: 8-bit, 10-bit, 12-bit
• Video Bandwidth: 18 Gbps
• Audio Formats: LPCM, DTS-HD Master Audio, Dolby TrueHD, Dolby Digital, DTS
• Power Over Cable (PoC): Yes (Receiver powered by Transmitter)
• IR Pass-through: Yes (20-60KHz)
• EDID Management: Automatic EDID Pass-through
• Input Ports: 1x RJ45 (for CAT cable)
• Output Ports: 1x HDMI Type A, 1x IR Receiver
• Latency: Near Zero Latency
• Housing Material: Metal Casing
• Operating Temperature: 0°C to 45°C
• ESD Protection: Human body model ±8kV (air-gap discharge), ±4kV (contact discharge)

Recommendations

For optimal performance, use high-quality CAT6A or CAT7 cables and ensure the transmitter and receiver are paired correctly. This receiver is designed for indoor use only. Always follow the manufacturer's installation guidelines.
