Recetor HDMI sobre Cat.5 LevelOne, HDBaseT, 100 m, 802.3af PoE

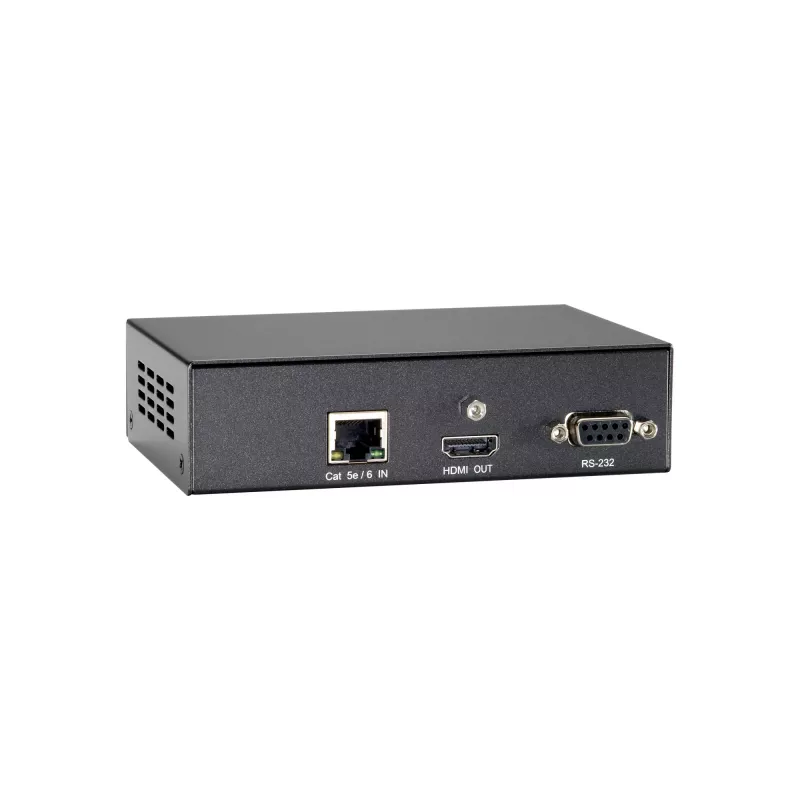

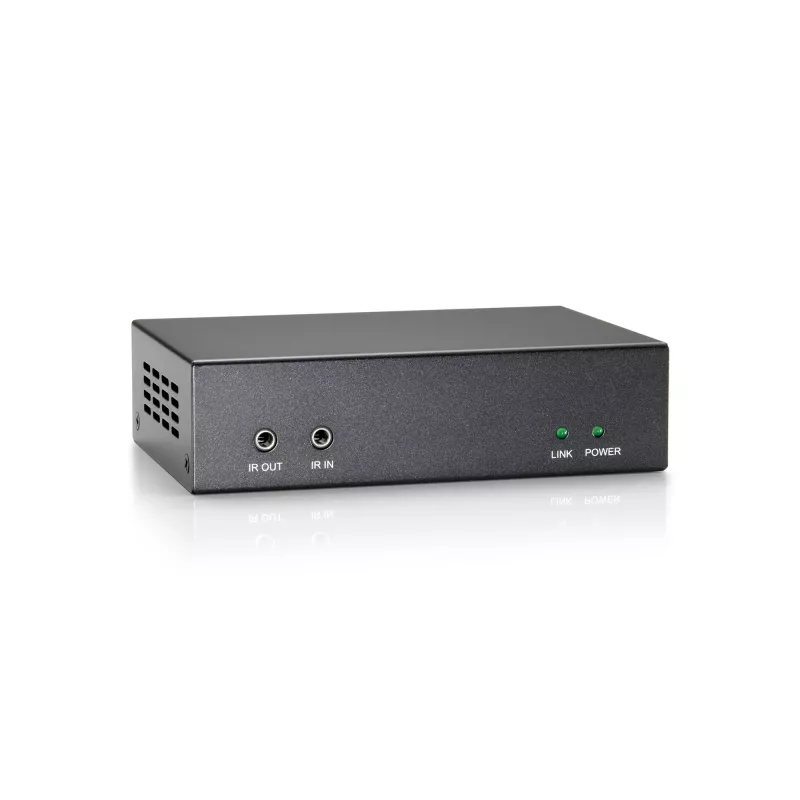

The LevelOne HVE-9211PR is an HDMI over Cat.5 receiver that extends HDMI video, multi-channel audio and control signals up to 100 m over Cat5e or Cat6 cable. Supporting HDBaseT technology and resolutions up to Ultra HD 4K x 2K (3840 x 2160 @ 30Hz) as well as 1080p Full HD, the compact black receiver includes PoE support (IEEE 802.3af) for simplified power management and is suitable for installations where a remote display or source control is required.

Advantages

The HVE-9211PR offers long-distance transmission of HDMI, IR and RS-232 signals over a single Cat5e/Cat6 cable, built-in EDID hot-plug detection and EDID priority management on HDMI outputs, and bi-directional RS-232/IR pass-through to control devices from either end. It supports HDCP and common high-definition audio formats (Dolby TrueHD, DTS-HD Master Audio, Dolby Digital Plus, LPCM 7.1) and requires minimal setup with plug-and-play operation.

Suitable for

• Digital signage and public displays
• Home theater and residential AV installations
• Trade shows and exhibition booths
• Medical facilities and professional presentation rooms

Key specifications

• Model: HVE-9211PR (receiver)
• Technology: HDBaseT over Cat5e/Cat6
• Maximum resolution: 3840 x 2160 @ 30Hz (4K x 2K)
• Maximum transmission distance: up to 100 m
• PoE: IEEE 802.3af compliant
• Controls: Bi-directional RS-232 and IR pass-through
• EDID: Built-in Hot Plug Detection and EDID management
• Audio support: Dolby TrueHD, DTS-HD Master Audio, Dolby Digital Plus, LPCM 7.1
• HDMI/HDCP compliant
• Color: Black
• Dimensions: 125 x 85 x 40 mm
• Power consumption: 1110 mA

How to use

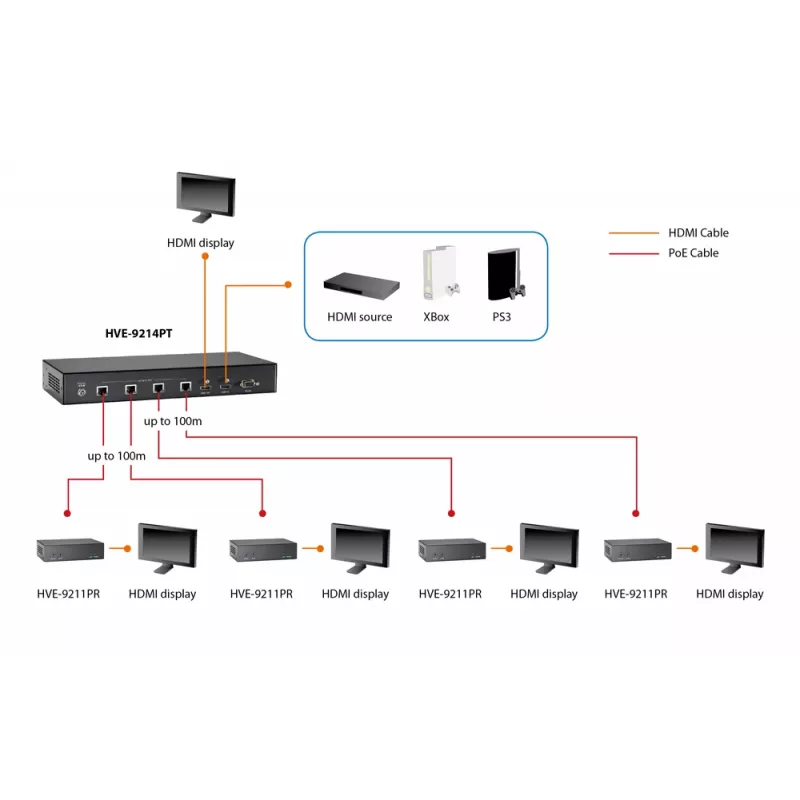

Connect the transmitter unit to the HDMI source and the HVE-9211PR receiver to the display using HDMI cables. Link transmitter and receiver with a Cat5e or Cat6 cable up to 100 m. If available, enable PoE on the network switch or power the receiver per the product guidelines. Use the receiver’s EDID and HDCP handling to ensure proper handshake between source and display. Control connected devices remotely via RS-232 or IR routed through the Cat cable.

Recommendations

For reliable 4K transmission, use high-quality Cat6 cable and keep cable runs within 100 m. If power-over-Ethernet is not available, provide appropriate external power to the transmitter/receiver per the manufacturer instructions. Confirm EDID settings during initial setup to match source and display capabilities.
