Regulador de comutação DC/DC boost/forward/flyback Texas Instruments LM2577SX-ADJ/NOPB, TO-263-5, saída ajustável

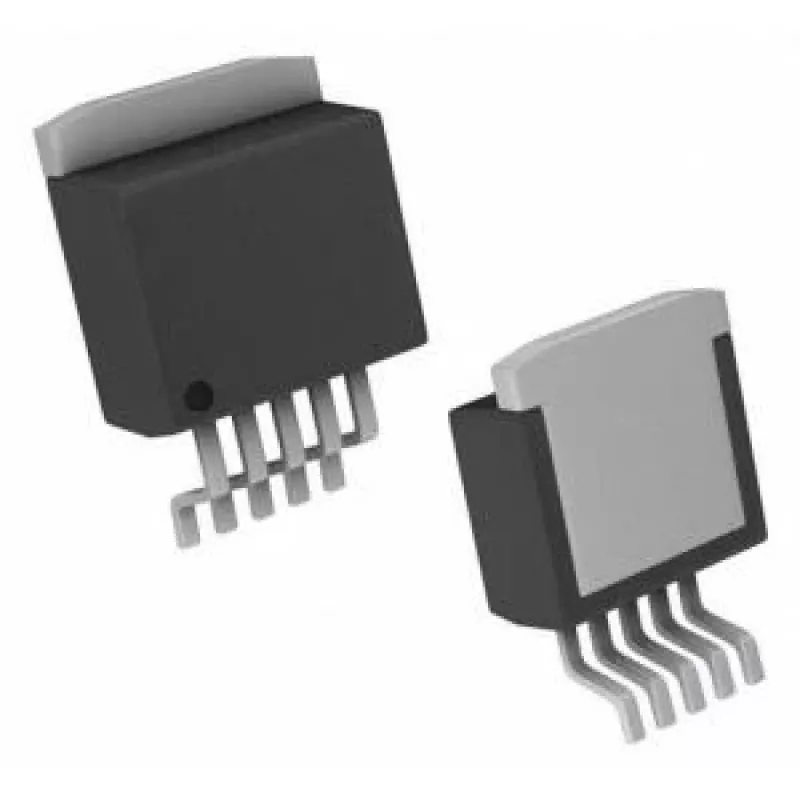

The Texas Instruments LM2577SX-ADJ/NOPB is an adjustable DC/DC switching regulator in a TO-263-5 package designed for boost, forward and flyback converter topologies. The device provides an adjustable output voltage through an external feedback network and requires external components such as an inductor and diode to form a complete power conversion stage. Typical applications include power supplies, battery-powered systems and embedded electronics where step-up or isolated converter functions are needed. The regulator's physical package and pinout support through-hole or PCB-mounted power designs with thermal considerations in mind.

Advantages

The LM2577SX-ADJ offers a flexible adjustable output that can be configured for a wide range of voltages using external resistors. Its support for boost, forward and flyback topologies makes it suitable for both non-isolated and isolated power conversion designs. The TO-263-5 package provides a compact footprint with thermal dissipation paths appropriate for moderate power levels when used with recommended board layout and heat sinking. The part operates as a switching regulator, providing higher efficiency than linear regulators in step-up and isolated converter applications.

Suitable for

• Boost converters for stepping up battery voltages
• Flyback and forward converters in isolated or non-isolated supplies
• Embedded electronics and microcontroller power rails requiring higher voltages
• Battery-powered devices needing efficient DC/DC step-up stages

Key specifications

• Function: Adjustable DC/DC switching regulator supporting boost, forward and flyback topologies
• Package: TO-263-5 (surface-mount power package)
• Output: Adjustable via external feedback network (user-defined output voltage)
• External components required: inductor, rectifying diode and output capacitor per design topology
• Thermal: heat dissipation requires appropriate PCB copper area and/or heat sinking for moderate power operation

How to use

Design the converter by selecting the appropriate topology (boost, forward or flyback) and consult the manufacturer's recommended circuit for component selection and layout. Choose an inductor and diode with current and voltage ratings appropriate for the target output and input conditions. Set the output voltage with a resistor divider connected to the feedback pin, following the device's recommended feedback resistor values and compensation network. Implement proper input and output capacitors to minimize switching noise and ensure stable regulation. Observe thermal management practices such as using adequate PCB copper area and, if necessary, a heatsink attached to the package.

Recommendations

Follow the Texas Instruments datasheet and application notes for recommended component values, layout guidelines and thermal calculations. Verify stability and transient response in prototype builds, and ensure component voltage and current ratings include safety margins for expected operating conditions.
