Relé elétrico Hikvision DS-PM1-O1L-WE branco

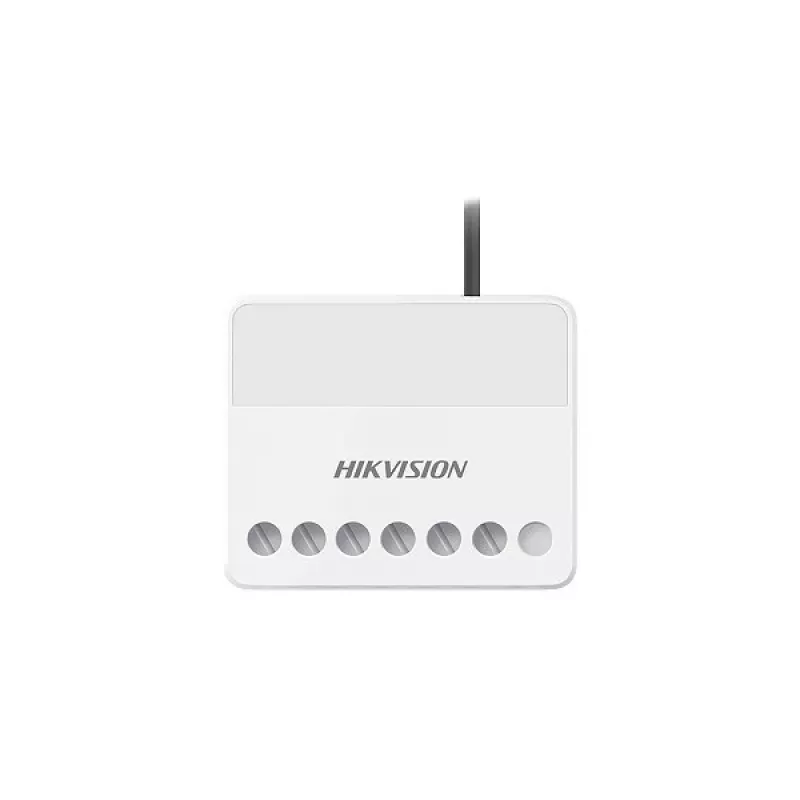

The Hikvision DS-PM1-O1L-WE is a compact white electrical relay in a durable plastic housing. Designed for indoor use, this relay supports a wide DC input range of 7–24 V and offers a maximum indoor communication range of up to 1800 m. With dimensions of 38 x 18 x 25 mm and a weight of 28.5 g, the DS-PM1-O1L-WE is suitable for integration into security and automation systems where a small form factor and reliable switching are required.

Advantages

The DS-PM1-O1L-WE provides a compact footprint and lightweight design that simplify installation in confined spaces. Its wide DC operating voltage range (7–24 V) allows flexible power arrangements. The relay's indoor communication range of up to 1800 m supports placement at a distance from the central unit when used within compatible Hikvision systems. The plastic housing ensures basic mechanical protection while keeping the unit economical and easy to mount.

Suitable for

• Integration into alarm and security panels
• Controlling auxiliary devices and sirens
• Home and small commercial automation projects
• Retrofit installations where space is limited

Key specifications

• Model: Hikvision DS-PM1-O1L-WE
• Color: White
• Material: Plastic housing
• DC operating voltage: 7–24 V
• Maximum indoor range: up to 1800 m
• Dimensions: 38 x 18 x 25 mm
• Weight: 28.5 g
• Manufacturer part number (MPN): DS-PM1-O1L-WE
• EAN: 6941264076957

How to use

Mount the relay in a dry indoor location and secure it according to the installation requirements of your security or automation system. Connect power within the specified DC voltage range (7–24 V) and wire the relay contacts to the device or circuit you intend to switch. Verify compatibility with your control panel or transmitter to ensure the advertised indoor communication range is achievable. After wiring, perform functional tests to confirm correct switching operation under normal and fault conditions.

Recommendations

Use the DS-PM1-O1L-WE in indoor environments away from excessive moisture, direct heat sources, and strong electromagnetic interference. For reliable remote operation, follow the manufacturer's placement guidelines and test range performance within the intended installation site.
