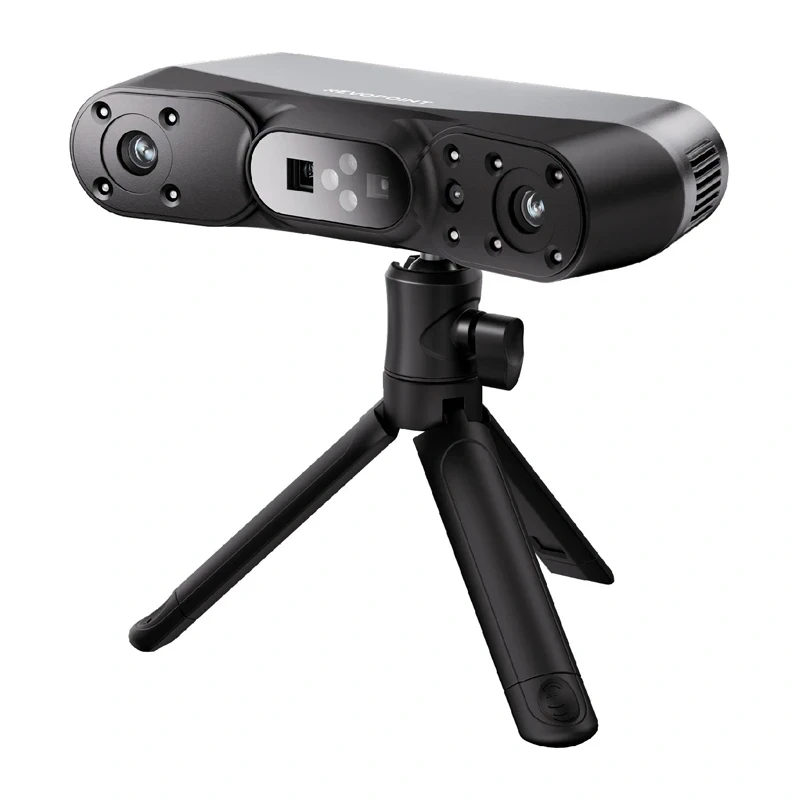

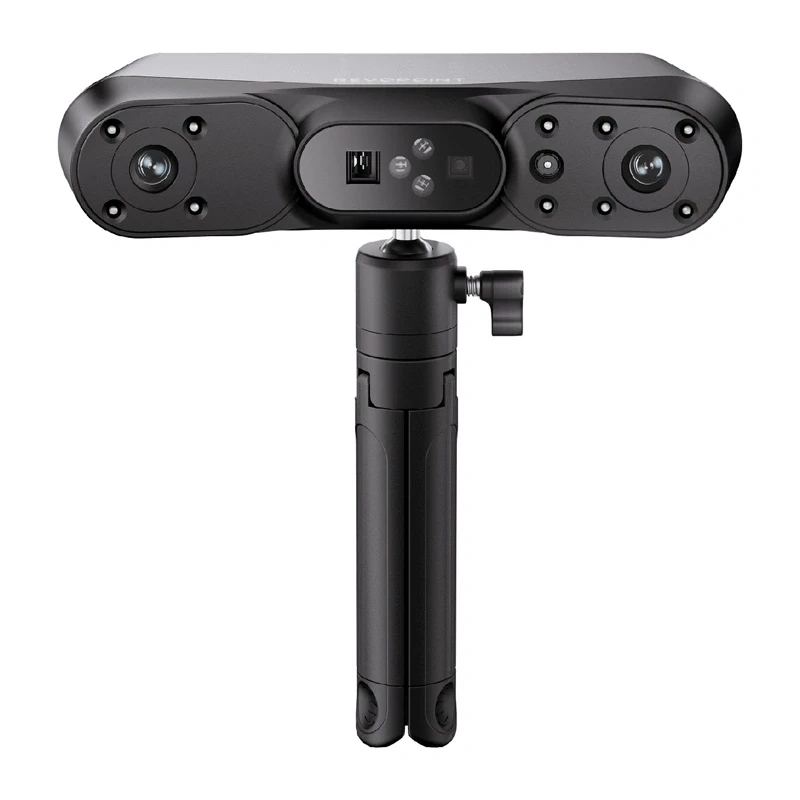

Revopoint POP 4 Scanner 3D

The Revopoint POP 4 is a portable handheld 3D scanner that combines dual-camera infrared structured light technology with high accuracy and speed. Ideal for reverse engineering, quality inspection, and creative projects, it captures detailed color scans of objects from 20 mm to 2000 mm.

Advantages

High accuracy up to 0.05 mm and fast scanning up to 18 fps. Built-in RGB camera for full-color scanning. Multiple tracking modes (Feature, Marker, Feature+Marker) ensure reliable capture even on reflective or featureless surfaces. Lightweight and compact design with USB-C and Wi-Fi connectivity.

Suitable for

• Reverse engineering and product design
• Quality control and inspection
• Cultural heritage preservation
• Education and research
• 3D printing and modeling

Key specifications

• Scanning Technology: Dual-camera Infrared Structured Light
• Accuracy: Up to 0.05 mm
• Resolution (Point Distance): 0.1 mm
• Scan Speed: Up to 18 fps
• Single Capture Range: 160 mm x 120 mm
• Working Distance: 150 mm - 400 mm
• Minimum Scan Volume: 20 x 20 x 20 mm
• Recommended Object Size: 20 mm - 2000 mm
• Light Source: Infrared VCSEL
• Color Scanning: Yes (Built-in RGB Camera)
• Output Formats: PLY, OBJ, STL
• Connectivity: USB Type-C, Wi-Fi
• Compatible OS: Windows 10/11 (64-bit), macOS 10.15+, Android 11+, iOS 15+
• Tracking Modes: Feature, Marker, Feature + Marker
• IMU: 9-axis IMU
• Processor: Dual-core ARM Cortex-A7
• Depth Camera: Dual IR Cameras
• Power Input: 5V 2A

Recommendations

For best results, use in a well-lit environment and ensure the object is stationary. The POP 4 is compatible with Revopoint's software suite for data processing and editing.
