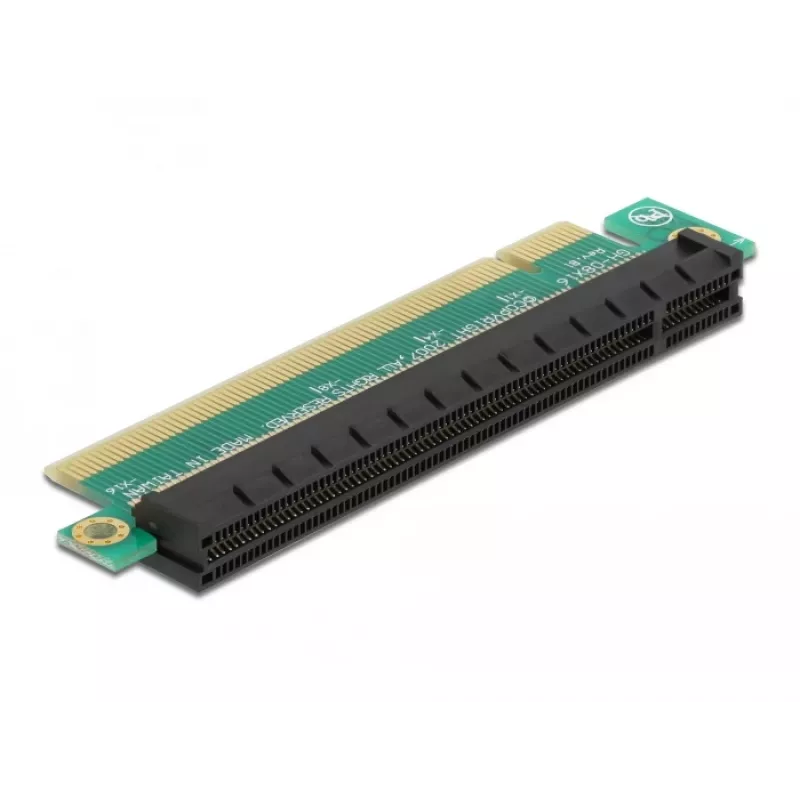

Riser PCIe x16 DeLOCK 89093

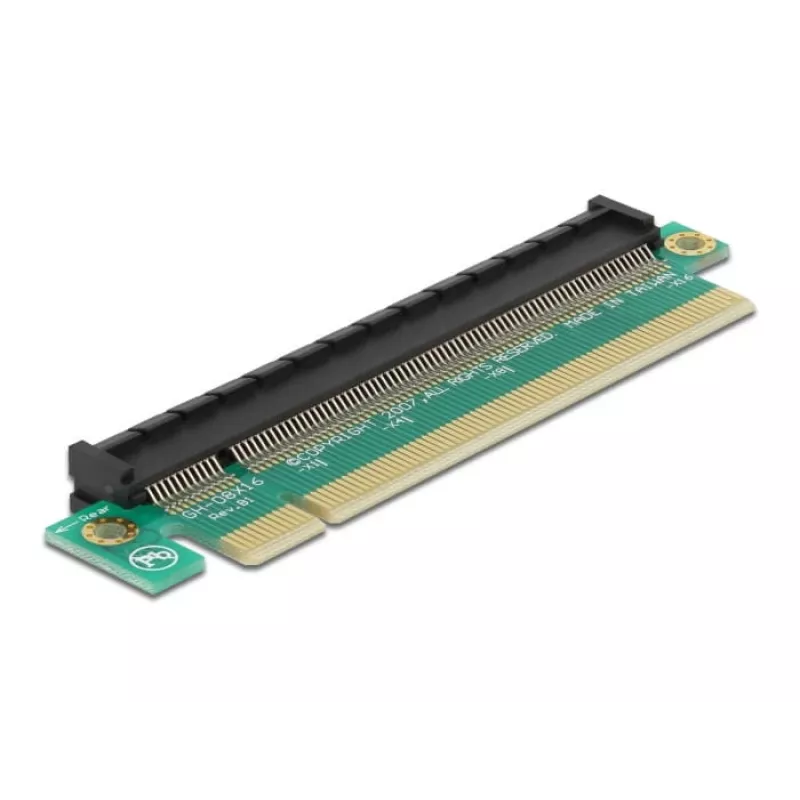

The Delock PCI Express extension riser card allows you to extend a PCIe x16 card from its motherboard slot. Connect the PCIe x16 card to the riser and then plug the riser into the mainboard to position the card away from the original slot while maintaining the electrical connection.

Advantages

The riser card provides a simple mechanical extension for PCI Express x16 cards, offering a compact footprint and straightforward installation. Its short extension distance makes it suitable for tight enclosures or custom mounting where a small offset is required.

Key specifications

• Interface: PCI Express x16
• Extension length: 20.32 mm (0.8 inch)
• Dimensions: 105 x 27 mm

How to use

Insert the PCIe x16 card into the connector on the riser card, ensuring it is seated firmly. Then insert the riser card into the corresponding PCIe slot on the mainboard. Verify the connection is secure before powering the system.

Recommendations

Use this riser in systems where a small extension is needed; avoid placing excessive mechanical stress on the connectors and ensure compatibility with your case and motherboard layout.
