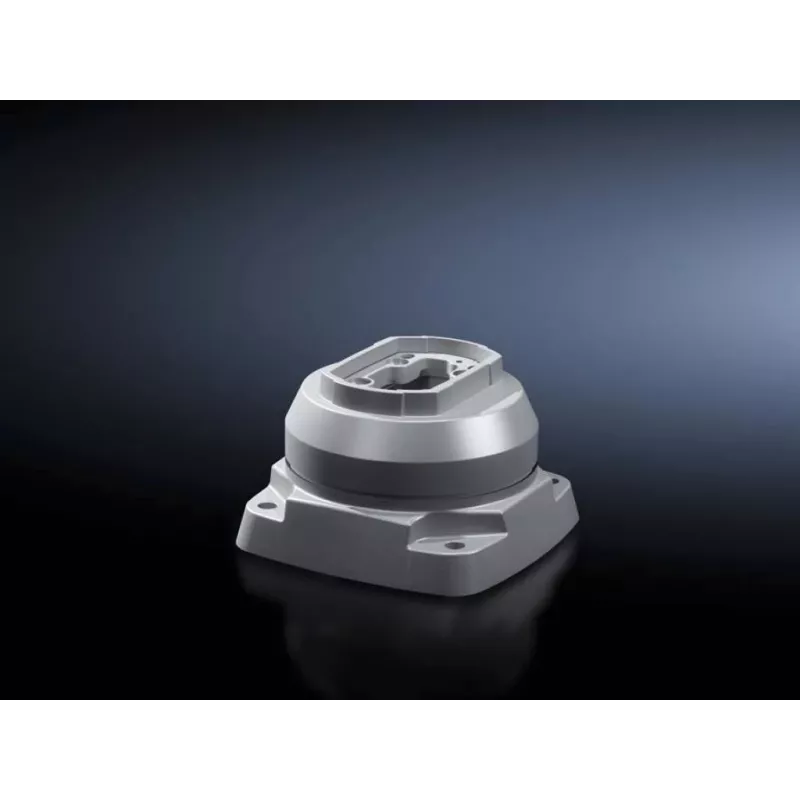

Rittal CP 120 Articulação de topo, encaminhamento vertical de cabos, cinzento claro (RAL 7035), IP54, rotação 300°, alumínio fundido, 6212.720

Engineered for demanding control panel applications, this top-mounted joint delivers a robust 1000 N static load capacity and smooth 300° rotation, ensuring reliable vertical cable routing for Rittal CP 120 support arm systems. Its die-cast aluminium construction with powder-coated light grey finish (RAL 7035) provides durability and a professional appearance, while the IP54 protection rating safeguards against dust and water ingress when correctly installed.

Overview

The Rittal 6212.720 is a top-mounted joint designed for vertical cable routing in the CP 120 support arm system. It serves as a critical component for directing cables from the top of an enclosure to a control panel, ensuring organized and protected cable management. The joint is manufactured from high-quality die-cast aluminium, offering an excellent strength-to-weight ratio and resistance to mechanical stress. Its surface is powder-coated in light grey (RAL 7035), which not only enhances corrosion resistance but also matches standard industrial enclosure aesthetics. The unit includes a seal and all necessary assembly parts for straightforward installation.

What stands out

• High static load capacity of up to 1000 N, suitable for heavy control panels.
• Wide 300° rotation angle for flexible positioning.
• IP54 protection rating against dust and water splashes when properly installed.
• Durable die-cast aluminium body with powder-coated light grey finish.
• Designed specifically for vertical cable routing in CP 120 systems.
• Includes seal and assembly parts for immediate installation.

Technical details

• Product type: Top-mounted joint
• System compatibility: Rittal CP 120 support arm system
• Cable routing direction: Vertical
• Material: Die-cast aluminium
• Colour: Light grey (RAL 7035)
• Protection rating: IP54 (when correctly installed)
• Rotation angle: 300°
• Static load capacity: Max. 1000 N (system dependent)
• Dynamic load capacity: Max. 200 N (system dependent)
• Mounting position: Top
• Application: Cable routing for control panel enclosures
• Surface treatment: Powder-coated
• Included accessories: Seal, assembly parts
• Design series: CP 120
• Manufacturer part number: 6212.720
• EAN: 4028177684003

Our verdict

With its robust construction, high load capacity, and flexible rotation, the Rittal 6212.720 top-mounted joint is an excellent choice for industrial control panel installations requiring reliable vertical cable routing. Its IP54 rating and powder-coated finish ensure long-term durability in challenging environments.
