Router 4G INSYS icom SCR-L200 — montagem em calha DIN/parede, antena SMA, BGP/OSPF/RIP, LAN 10/100 Mbit/s, MiniSIM, cinzento

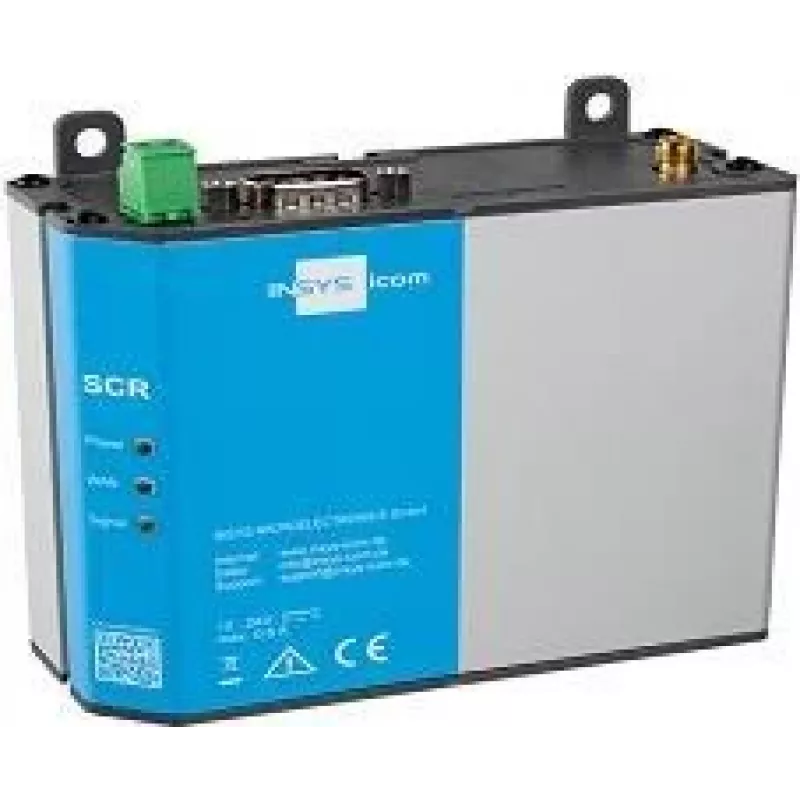

INSYS icom SCR-L200 is a 4G industrial router in grey designed for DIN-rail or wall mounting. It provides cellular WAN access over 4G bands 700/800/900/1800/2100 MHz and accepts a MiniSIM. The device includes a single SMA antenna connector, 10/100 Mbps Ethernet LAN connectivity and visible LED indicators for power, signal strength and WAN status. The SCR-L200 runs the icom OS and includes an integrated Linux environment for local scripts and container-based applications, enabling remote maintenance, secure routing and edge data processing in industrial and IoT installations.

Advantages

The SCR-L200 combines compact hardware with routing protocols (BGP, OSPF, RIP, RIP-2 and RIPng) suitable for complex network environments while remaining mountable on DIN-rail or wall surfaces. Its integrated icom SmartBox allows execution of custom programs and scripts directly on the unit for local data capture and preprocessing. Energy-saving sleep mode supports low-power installations, and the rugged mounting options make the device adaptable for switch cabinets and building connection boxes.

Suitable for

Key specifications

How to use

Install the SCR-L200 on a DIN-rail or mount it to a wall using the supplied mounting points. Insert a MiniSIM card and attach an external antenna to the SMA connector for optimal reception. Connect target devices to the 10/100 Mbps LAN port and configure network addressing and routing via the icom OS web interface or command-line tools. Use the integrated SmartBox to deploy scripts or containers for local data acquisition, protocol conversion (e.g., Modbus TCP/RTU bridging) and edge processing. LED indicators provide immediate status feedback during commissioning.

Recommendations

Place the device where cellular signal reception is strongest and use a roof or external antenna when installed in metal enclosures. Configure secure VPN tunnels and appropriate routing policies (BGP/OSPF/RIP) for WAN resilience. For low-power or off-grid setups, enable sleep mode and size the power source accordingly. Use the SmartBox to preprocess data locally to reduce WAN traffic and enhance response times for remote maintenance tasks.
