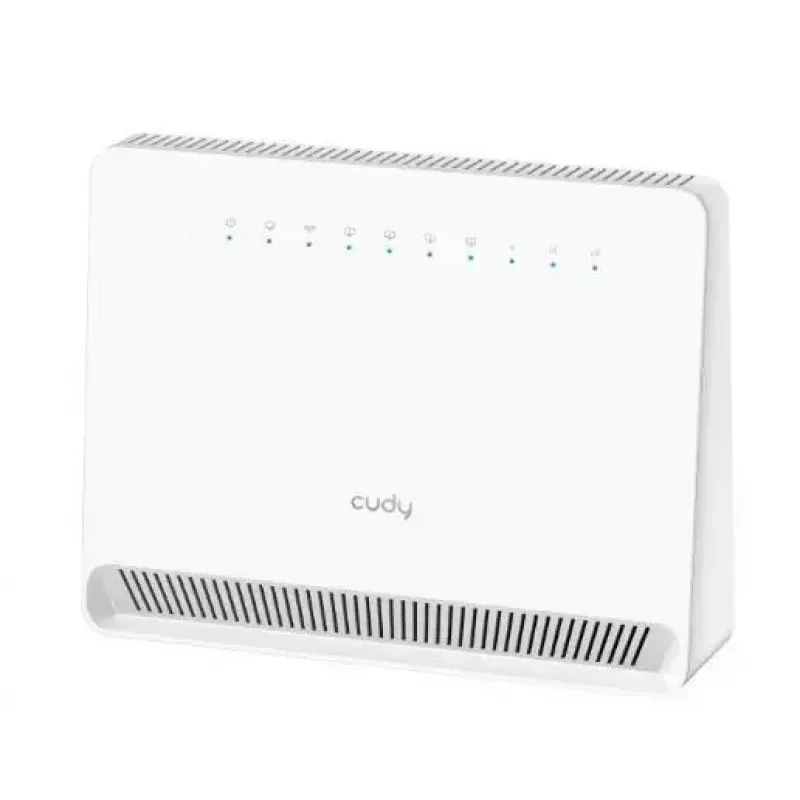

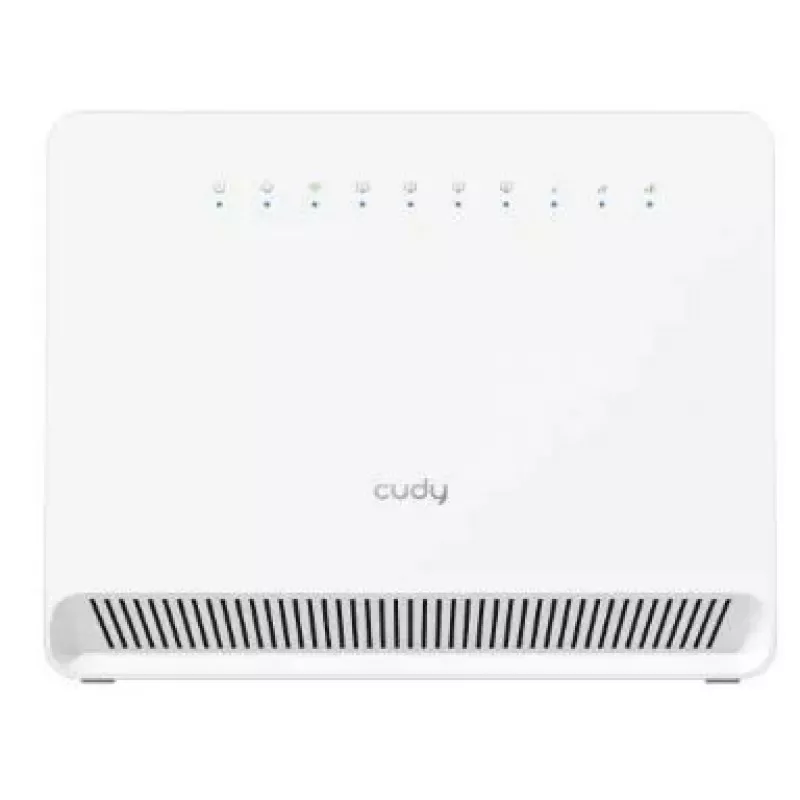

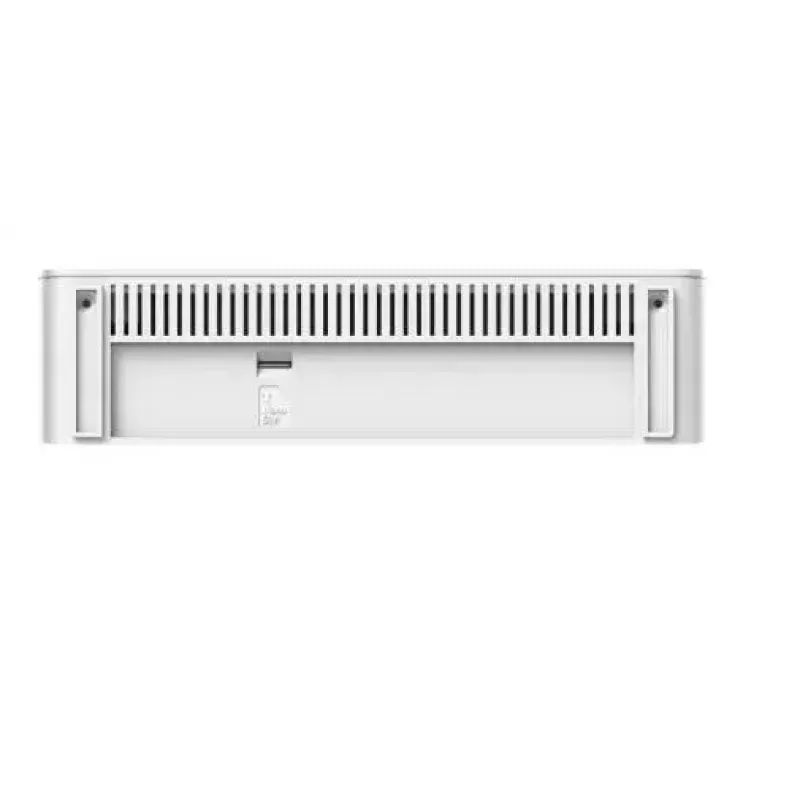

Router 4G LTE Cudy LT700E AC1200 Gigabit — slot SIM, WLAN dual-band

Model: LT700E | Description: Advanced 4G LTE Cat. 6 up to 300 Mbps DL Fast dual-band AC1200 Wi-Fi 4×gigabit ports 2× internal 4G antennas + 2× internal Wi-Fi antennas Nano SIM card slot VPN Zerotier, Wireguard, OpenVPN, IPSec, L2TP, PPTP | Type: GSM 3G/4G | Data transmission: HSUPA | Data transmission: HSDPA | Data transmission: UMTS | Data transmission: LTE | UMTS network: 900 MHz | UMTS network: 2100 MHz | UMTS network: 850 MHz | LTE network: 3400 MHz | LTE network: 2500 MHz | LTE network: 2600 MHz | LTE network: 2300 MHz | LTE network: 1900 MHz | LTE network: 2100 MHz | LTE network: 600 MHz | LTE network: 700 MHz | LTE network: 800 MHz | LTE network: 850 MHz | LTE network: 1500 MHz | LTE network: 1800 MHz | Max download speed: 300 | Max upload speed: 50 | Aero2 support: No | Standards: IPv6 | Standards: 802.11ac | Standards: 802.11n | Standards: 802.11b | Standards: 802.11a | Standards: 802.11g | Operating frequency: 5 GHz | Operating frequency: 2,4 GHz | Number of antennas: 4 | Antenna: Built-in | Security: WPA-PSK WPA2-PSK WPA-PSK/WPS2-PSK | Management, monitoring, configuration: VPN VPN Server and Client Options: Zerotier, Wireguard, OpenVPN, IPSec, L2TP, PPTP DNS Override All Clients' DNS, Rebind Protection, DNS Over TLS, Manual DNS DNS over TLS Options: Cloudflare, Google, Quad9 Multi-Mode Router (4G/WAN), WISP (4G as Backup), WISP Clients Management Internet Block, Internet/Wi-Fi Schedule, VPN Block, Device Rename Network Management QoS, DDNS, WAN/LAN Switch Firewall SPI Firewall, DoS Protection, Block PING NAT Port Forwarding, Port Triggering, UPnP, DMZ TTL Extend, Spoof, Custom IPv6 Relay, Dynamic(SLAAC/DHCPv6), Staic (Fixed IP), Passthrough, MAP-E, DS-Lite DHCP Server, Client List, Address Reservation CWMP TR069, TR098, TR111, TR181, Support STUN | SIM card: Nano | Power supply: DC 12 V 1.5 A | Supported operating systems: Mac OS | Supported operating systems: Novell NetWare | Supported operating systems: Unix | Supported operating systems: Linux | Supported operating systems: Windows | Environment requirements: Operating temperature: 0°C - 40°C Operating humidity: 10% - 90% non-condensing Storage temperature: -30°C - 70°C Storage humidity: 5% - 95%, non-condensing | Accessories included: 4G LTE router Charger RJ45 Ethernet cable Quick Installation Guide | Color: White | Dimensions: 190 × 50 × 148.8 mm | Data Act: Link

How to use

Insert an activated SIM card into the Cudy LT700E and power on the router. Access the router’s web interface or mobile setup page to configure the mobile broadband APN and wireless network names (SSIDs) and passwords. Place the router in a location with good cellular reception and connect wired devices to the Gigabit Ethernet ports as needed. Use the dual-band Wi‑Fi to assign devices to the appropriate frequency band based on range and throughput requirements.

Recommendations

For best performance, position the router near a window or an elevated central location to improve 4G signal strength. Use the 5 GHz band for high-bandwidth activities (streaming, video calls) and 2.4 GHz for wider coverage and older devices. Keep firmware updated and monitor mobile data usage to avoid overages on cellular plans.
