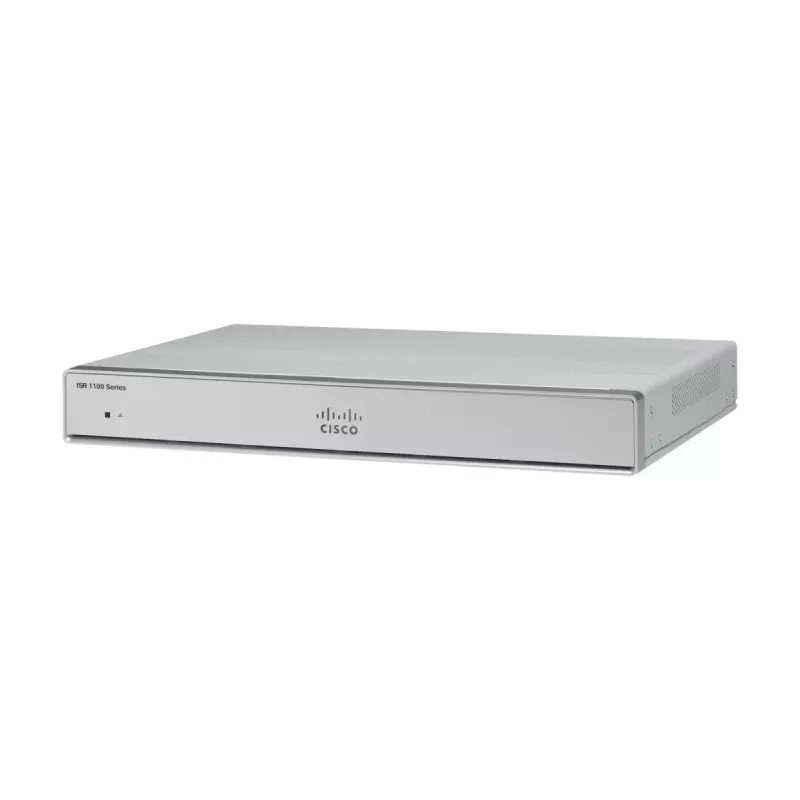

Router de serviços integrados Cisco C1111-4P com 4 portas Gigabit Ethernet

The Integrated Services Router Cisco C1111-4P with 4-Gigabit Ethernet Ports is a compact branch router designed to provide stable WAN and LAN connectivity for small and medium-sized business environments. It integrates four Gigabit Ethernet RJ-45 ports in a silver chassis and supports common routing protocols to interconnect sites and manage traffic. Security features include support for AES and 3DES algorithms, and the device ships with internal storage and memory sufficient for typical configuration and routing tasks.

Advantages

The Cisco C1111-4P delivers persistent wired connectivity with four Gigabit Ethernet ports and Gigabit Ethernet interface performance. It supports industry-standard routing protocols such as BGP, EIGRP and OSPF, enabling flexible network topology and route management. Integrated cryptographic support for AES and 3DES helps protect data in transit, while the device weight and form factor make it suitable for rack or desktop placement where space is limited. Onboard flash and memory provide resources for running routing processes, security services and configuration backups.

Suitable for

• Branch office WAN/LAN connectivity and internet edge routing
• Small and medium-sized enterprise networks requiring secure site-to-site communication
• Networks that use BGP, EIGRP or OSPF for dynamic routing
• Deployments needing multiple Gigabit Ethernet ports for wired devices

Key specifications

• Number of Ethernet LAN (RJ-45) ports: 4
• Ethernet interface type: Gigabit Ethernet
• Security algorithms supported: AES, 3DES
• Internal memory/flash capacity: 4 GB (flash and memory combined on board)
• Chassis colour: Silver
• Physical weight: 2.59 kg

How to use

Install the router in a ventilated location near network cabling and power. Connect WAN and LAN Gigabit Ethernet cables to the appropriate RJ-45 ports and power on the device. Access the router’s management interface via a web console or SSH to perform initial configuration: set IP addressing, enable required routing protocols (BGP, EIGRP, OSPF) and configure security policies including encryption settings. Store configuration backups on supported storage and verify firmware and security signatures as part of commissioning.

Recommendations

For reliable operation, place the router on a stable surface or appropriate rack with adequate airflow, apply recommended IOS updates and security patches, and follow Cisco best practices for key and certificate management when enabling AES or 3DES encryption. Monitor interface utilization and CPU/memory usage to size services appropriately for expected traffic.
