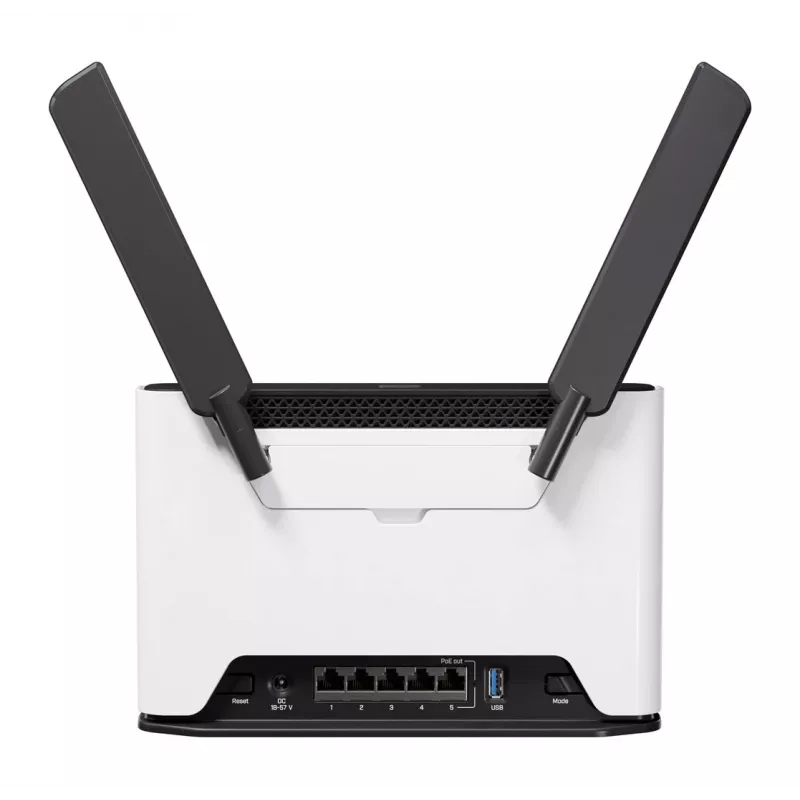

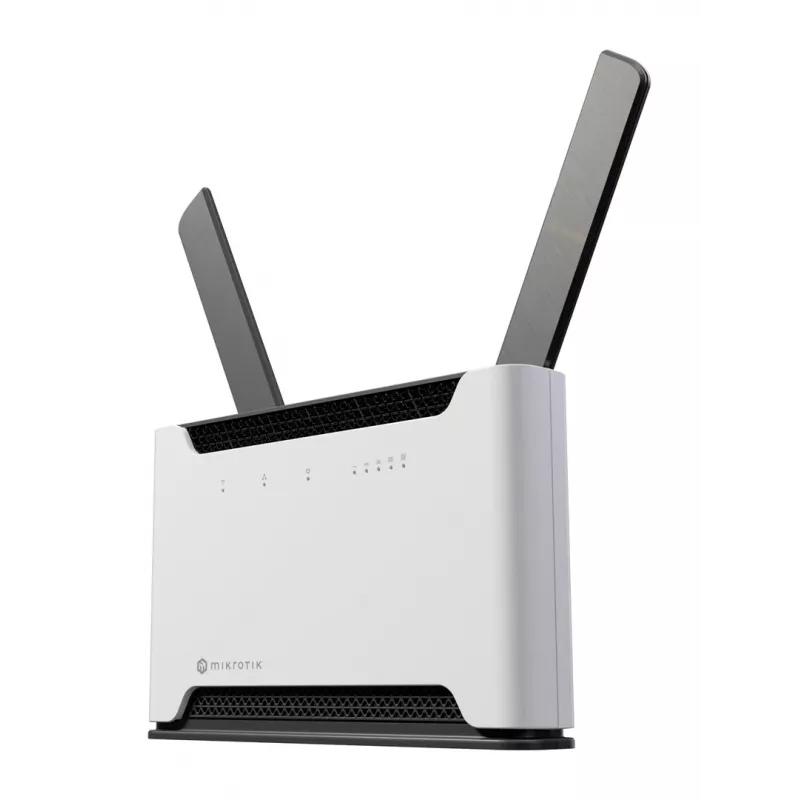

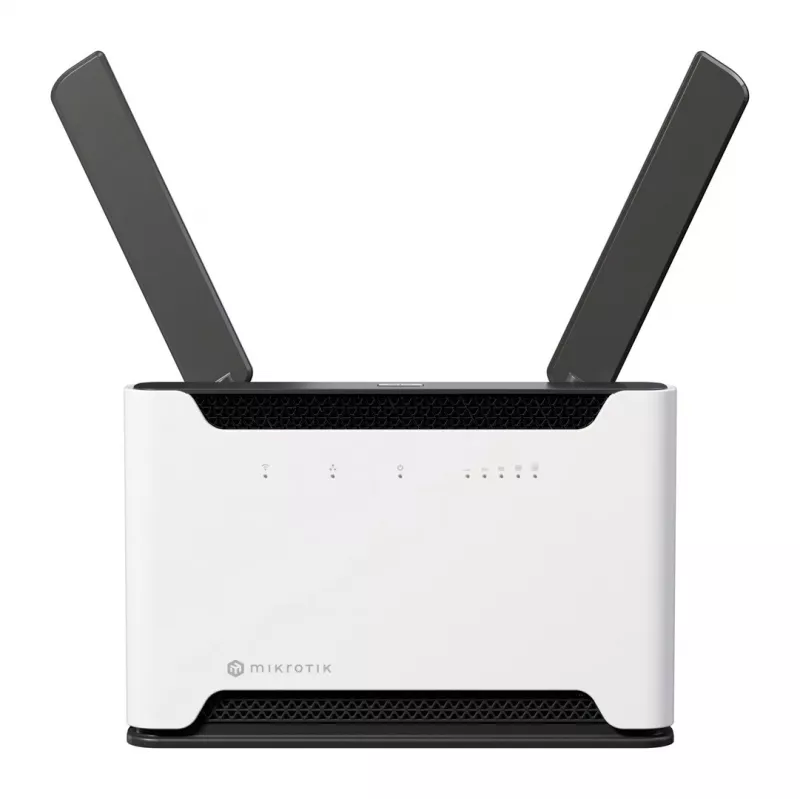

Router Wi-Fi MikroTik Chateau PRO ax — Dualband 2,4/5 GHz, 3548 Mbit/s, PoE, 5x LAN, 2 antenas externas, cinzento/branco

MikroTik Chateau PRO ax is a Wi‑Fi 6 dual‑band home access point designed for advanced users who need higher throughput and more processing power. Equipped with a quad‑core ARM CPU at 2.2 GHz and a modern wireless chip, the Chateau PRO ax supports 4 spatial streams to deliver up to 3548 Mbit/s total throughput across 2.4 GHz and 5 GHz bands. The device includes five Gigabit Ethernet ports, Power over Ethernet (PoE) support, a USB 3.0 port for external storage or LTE modems, and two external antennas in a grey/white housing.

Advantages

The Chateau PRO ax offers a powerful CPU and 4x4 MIMO capability that enable higher sustained wireless speeds and better handling of multiple simultaneous connections. Its five Gigabit LAN ports and PoE support provide flexible wired deployment options, while the USB 3.0 port allows adding SSD storage or an LTE modem for backup. Increased radio transceivers and beamforming improve coverage and connection stability for demanding home or small office environments.

Suitable for

• Homes or small offices requiring high throughput Wi‑Fi 6 performance
• Users running multiple high‑bandwidth devices or streaming 4K/8K content
• Advanced setups such as container services, link bonding, or high‑speed 4x4 MIMO
• Deployments needing PoE and multiple wired Gigabit connections

Key specifications

• Wireless bands: 2.4 GHz and 5 GHz
• Wireless speeds: 2.4 GHz — 1148 Mbit/s; 5 GHz — 2400 Mbit/s; Maximum combined: 3548 Mbit/s
• CPU: Quad‑core ARM, 2.2 GHz
• Ethernet: 5 × Gigabit RJ‑45 ports
• PoE: Supported
• USB: 1 × USB 3.0 port
• Antennas: 2 external
• Colour: Grey / White
• Max power consumption: 55 W

How to use

Place the Chateau PRO ax in a central location to maximize wireless coverage and connect a modem or upstream network to one of the Gigabit WAN/LAN ports. If desired, power the device via PoE or standard power supply as provided. Use the USB 3.0 port to connect an external SSD for file sharing or an LTE modem for failover. Configure wireless networks, security settings and advanced features through the MikroTik RouterOS web interface or management tools.

Recommendations

To achieve the full benefit of 4 spatial streams, use client devices that also support 4x4 streams. For best coverage, place the router elevated and away from large metal objects; enable beamforming and adjust channel settings if interference is present. Consider using wired connections for devices needing consistently low latency.
