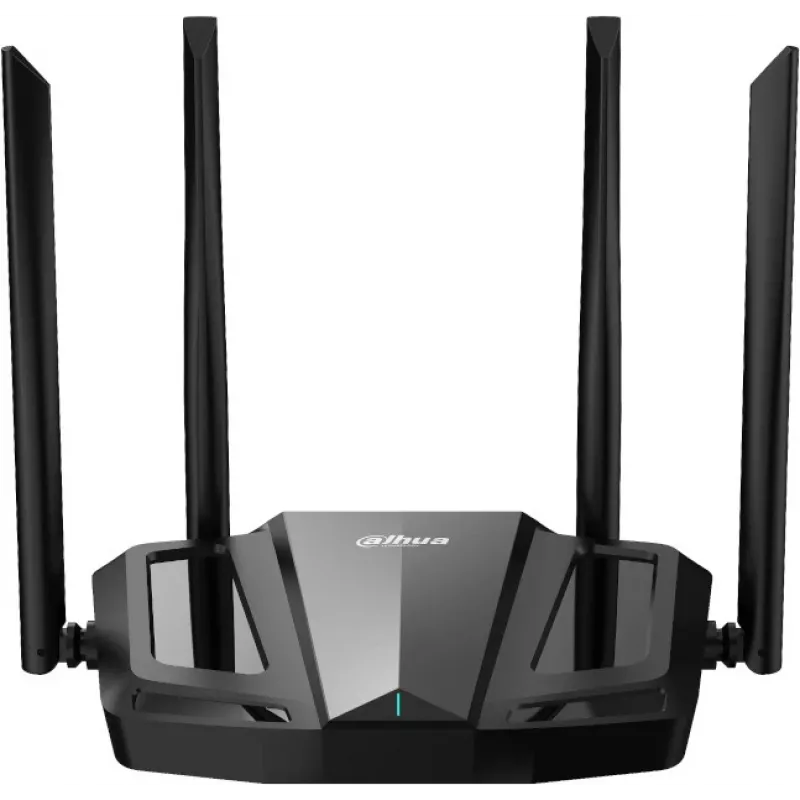

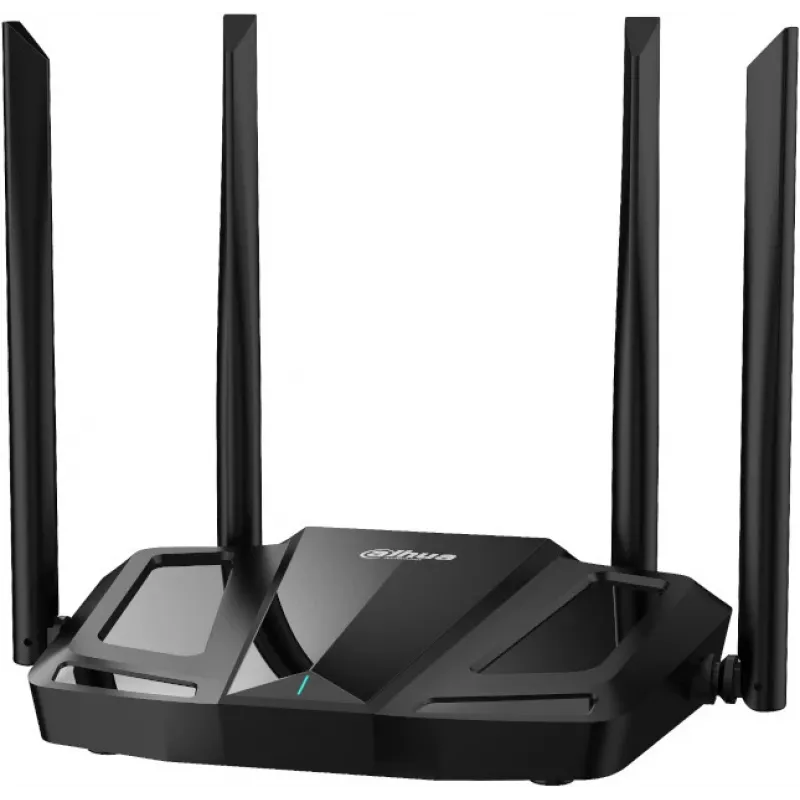

Router wireless DAHUA AC12 AC1200 Dual-Band

The DAHUA AC12 is a high-performance AC1200 dual-band wireless router designed for reliable and fast home or small office networking. With combined Wi-Fi speeds of up to 1200 Mbps (867 Mbps on 5GHz and 300 Mbps on 2.4GHz), it supports seamless streaming, gaming, and browsing. Equipped with four external 5 dBi antennas, it provides stable coverage and reduced interference.

Advantages

Dual-band connectivity reduces congestion and improves performance. The router supports multiple operating modes including Router, Access Point, and Repeater, offering flexibility for various network setups. Advanced security features like SPI firewall and MAC/IP filtering protect your network.

Suitable for

• Home networks requiring reliable Wi-Fi for streaming and browsing
• Small offices needing a cost-effective dual-band solution
• Users looking to extend existing network coverage via Repeater mode

Key specifications

• Wi-Fi Standard: IEEE 802.11a/b/g/n/ac
• Wi-Fi Speed: AC1200 (867 Mbps 5GHz + 300 Mbps 2.4GHz)
• Frequency Bands: Dual-Band (2.4 GHz & 5 GHz)

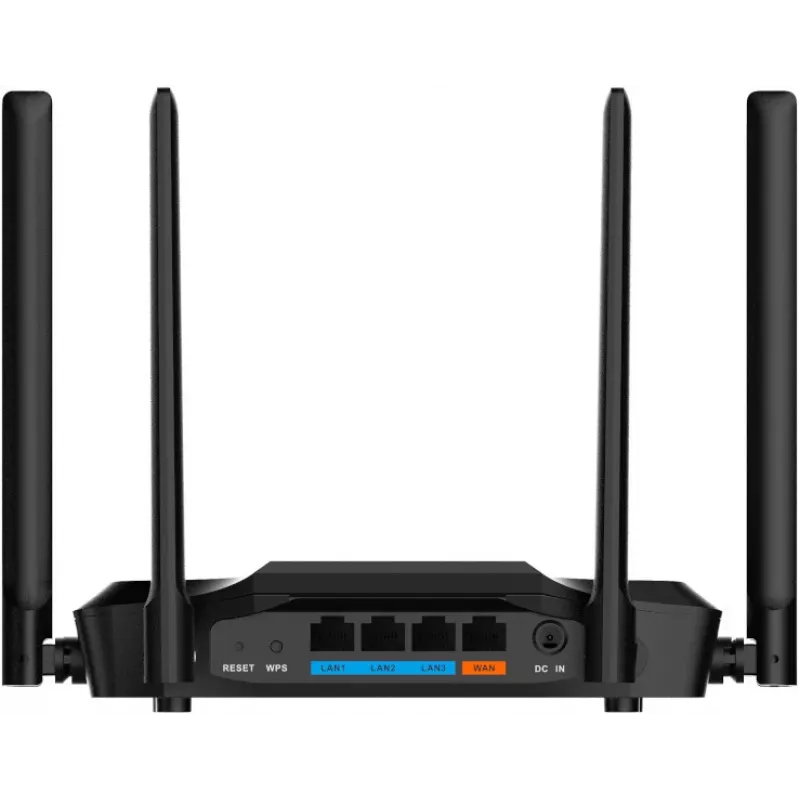

• Ethernet Ports: 1x WAN (10/100 Mbps), 3x LAN (10/100 Mbps)
• Antennas: 4x External Fixed Omni-directional (5 dBi each)
• Wireless Security: WPA-PSK / WPA2-PSK
• Operating Modes: Router, Access Point, Repeater
• WAN Connection Types: PPPoE, Dynamic IP, Static IP
• Firewall: SPI Firewall, IP/MAC Address Filtering
• Management: Web UI, QoS, Parental Control, Guest Network
• IPv6 Support: Yes
• Buttons: WPS/Reset
• LED Indicators: Power, WAN, LAN (x3), 2.4G, 5G, WPS
• Power Supply: DC 9V / 0.85A
• Operating Temperature: 0°C to 40°C (32°F to 104°F)
• Storage Temperature: -40°C to 70°C (-40°F to 158°F)

Recommendations

For optimal performance, place the router in a central location away from obstructions. Use the latest firmware for enhanced security and features.
