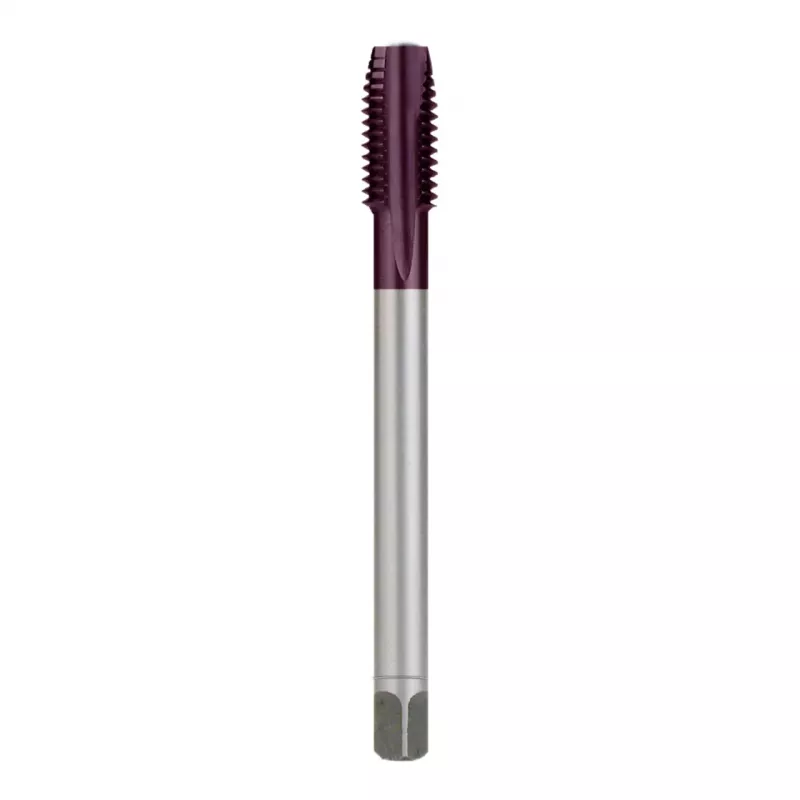

Macho de rosca de máquina RUKO MGB-DIN371-HSSCo-TiCN-60°-M6x1.00

Machine tap for metric coarse threads, featuring a TiCN coating and HSSCo substrate for high-performance threading in through holes. The spiral point geometry drives chips forward, making it ideal for efficient production in steel, stainless steel, cast iron, and non-ferrous metals.

Advantages

The TiCN coating reduces friction and increases wear resistance, extending tool life. The HSSCo material provides high hot hardness and toughness, allowing higher cutting speeds. The reinforced shank improves rigidity and reduces deflection during tapping.

Suitable for

• Through-hole tapping in steel and stainless steel
• Cast iron and non-ferrous metal applications
• Production environments requiring high cutting speeds

Key specifications

• Thread size: M6 x 1.00 mm
• Standard: DIN 371
• Coating: TiCN
• Material: HSSCo
• Thread angle: 60°
• Tolerance class: ISO 2 (6H)
• Overall length: 80 mm
• Thread length: 19 mm
• Shank diameter: 6 mm
• Square drive: 4.9 mm

Recommendations

Use with a suitable tapping chuck and cutting fluid for optimal performance. Ensure proper alignment to avoid tap breakage.
