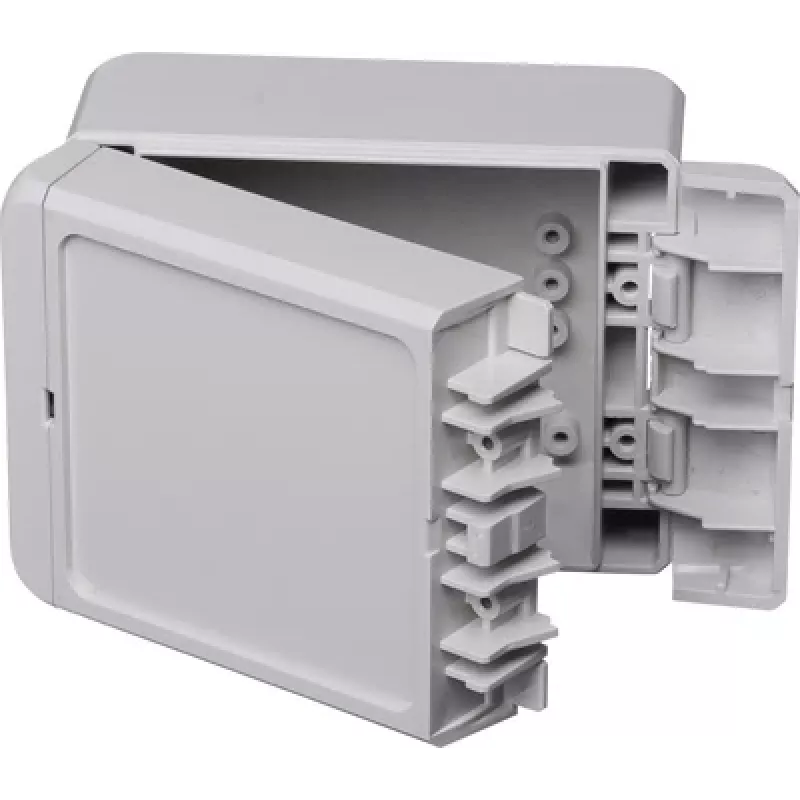

Bopla Bocube B 100806 ABS 7035 caixa de parede, 113 x 80 x 60 mm, cinzento claro (RAL 7035), IP66/IP67

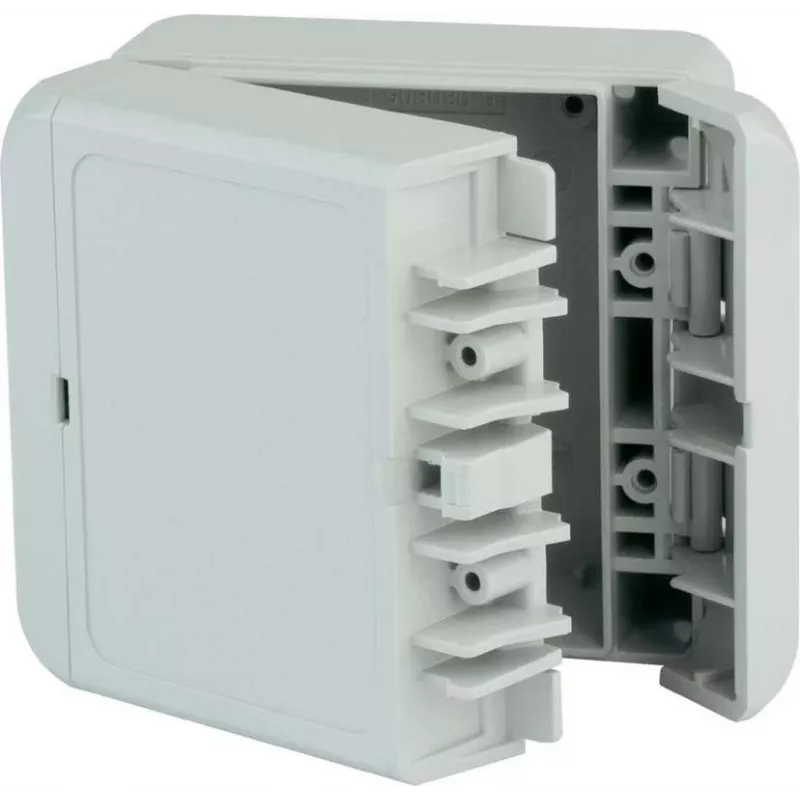

The Bopla Bocube B 100806 stands out with its hinged lid and stainless steel lid screws, offering convenient access without fully removing the cover. This wall-mount enclosure is built for demanding environments, combining a light grey ABS body with a PUR gasket for reliable sealing.

Highlights

• Hinged lid with stainless steel screws (1.4567/V2A) for easy opening and secure closure
• High protection ratings: IP66 and IP67, suitable for dusty or temporarily submerged locations
• Impact resistance IK08, able to withstand mechanical stress
• Wide operating temperature range from -40 °C to +80 °C
• Internal mounting bosses for self-tapping screws simplify component installation

In daily use

The Bocube series is designed for wall mounting in industrial, outdoor, or utility settings. The light grey RAL 7035 finish blends into control cabinets and machinery. The ABS material is UL 94 HB rated, providing a balance of durability and cost-effectiveness for electrical and electronic housings.

Full specifications

• Brand: BOPLA
• Model: B 100806 ABS 7035
• MPN: 96032125
• EAN: 4049505038497
• Series: Bocube
• Enclosure type: Wall-mount enclosure
• Material: ABS (Acrylonitrile Butadiene Styrene)
• Colour: Light grey (RAL 7035)
• External dimensions (W x H x D): 113 x 80 x 60 mm
• Lid type: Hinged lid
• Lid screws material: Stainless steel 1.4567 (V2A)
• Gasket material: PUR (Polyurethane)
• Flammability rating: UL 94 HB
• Mounting type: Wall mounting
• Internal mounting: Mounting bosses for self-tapping screws
• Certifications: RoHS compliant

Final note

The Bopla Bocube B 100806 is a robust choice for protecting electronics in harsh conditions, with a proven sealing system and easy access.
