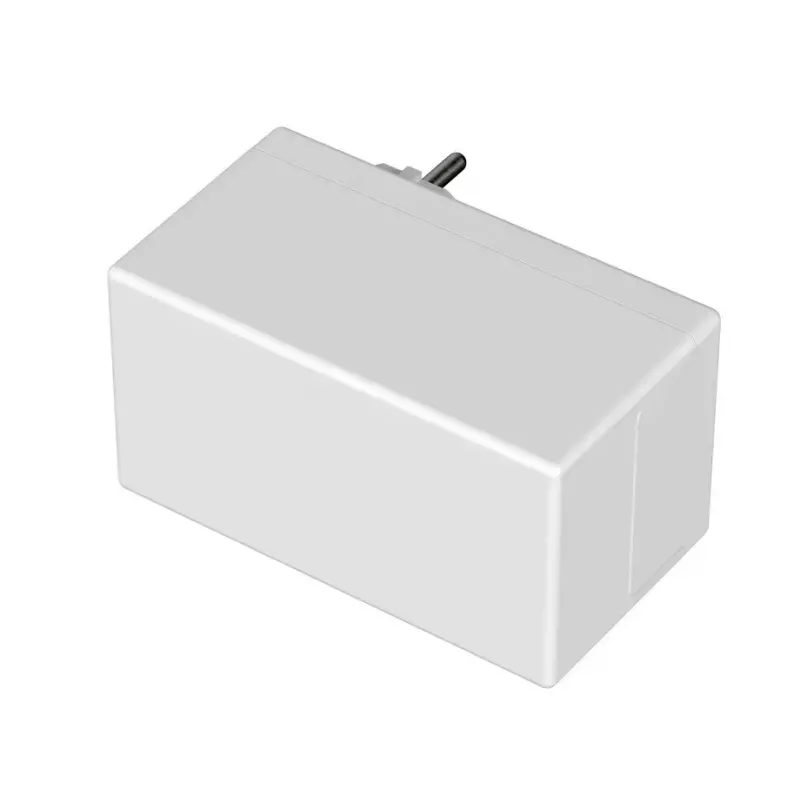

Bopla SE 435 E/CEE -9016 Caixa de ficha 120 x 65 x 66 PC branco 1 unid. (43435009)

Electricians and panel builders use the Bopla SE 435 E/CEE plug housing to protect CEE industrial plug connections in demanding environments. The enclosure measures 120 x 65 x 66 mm and is molded from white polycarbonate (RAL 9016 Traffic White), offering good resistance to oils, greases, alcohols, and weak acids or bases. A polyurethane gasket and stainless steel lid screws are part of the construction, and the housing is halogen-free.

Key specifications

• Material: Polycarbonate (PC), white (RAL 9016 Traffic White)
• External dimensions: 120 mm length, 65 mm width, 66 mm height
• Gasket material: Polyurethane (PUR)
• Lid screw material: Stainless steel (V2A / 1.4301)
• Operating temperature range: -40 °C to +100 °C
• Flammability rating: UL 94 V-0
• Halogen-free: Yes

Why choose it

The SE 435 E/CEE is built for industrial CEE plug connections. Its polycarbonate body withstands mechanical impact and common chemicals, while the wide temperature range covers outdoor and production environments. The PUR gasket and stainless steel screws contribute to a reliable seal over time.

Ideal use cases

• Protecting CEE plug connections in workshops and factories
• Outdoor electrical installations exposed to weather
• Machinery and equipment with plug-in power connections
• Areas where oils, greases, or cleaning agents are present

Good to know

The housing is supplied as one piece. It is suitable for wall mounting via integrated screw channels. The material is UV-resistant and RoHS compliant.
