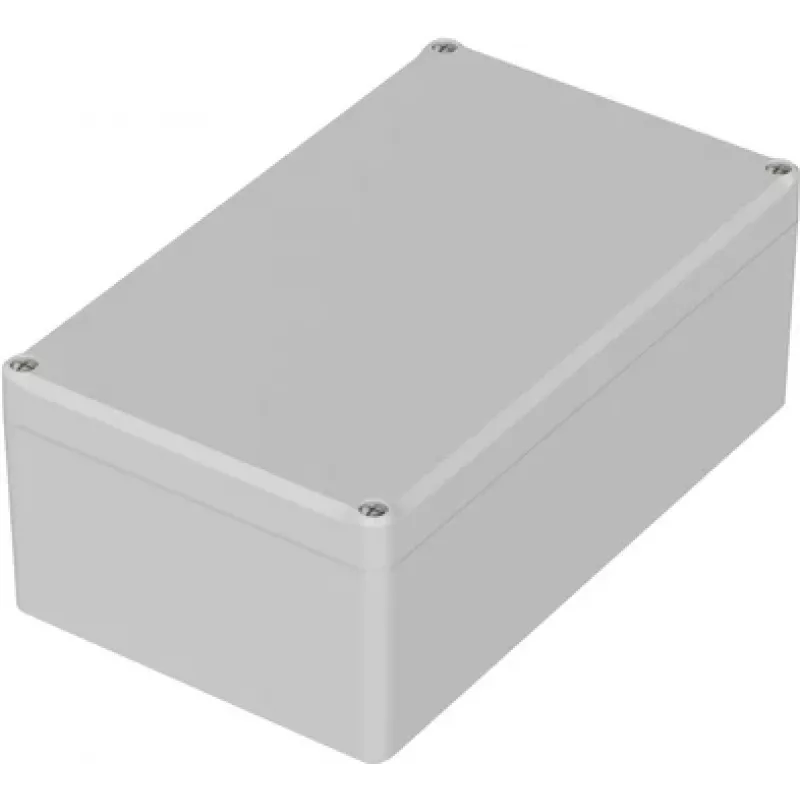

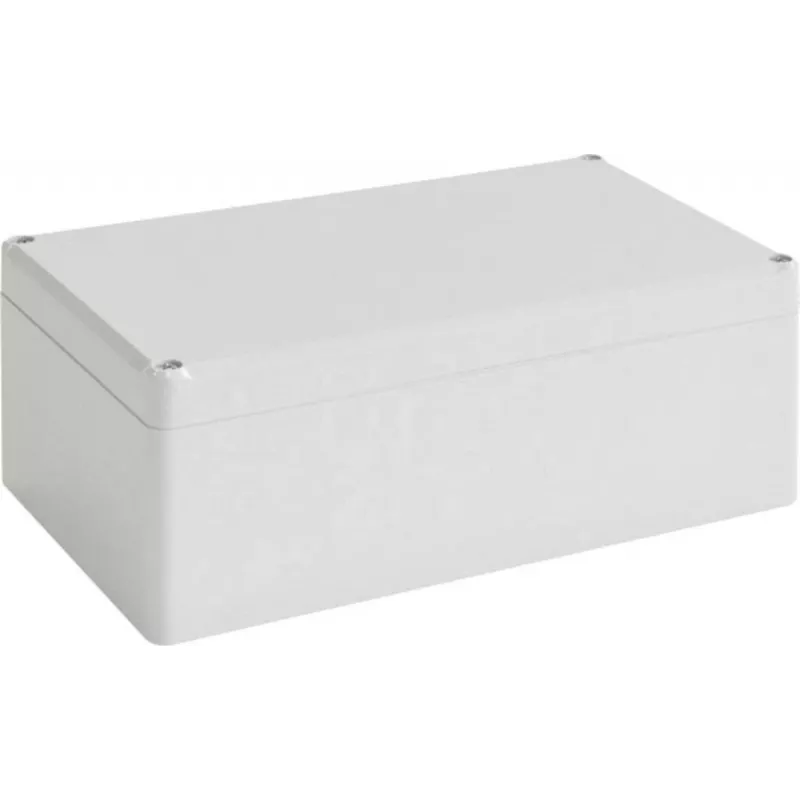

Caixa universal Bopla 200 x 120 x 77 mm ABS cinzento-claro (RAL 7035) ET 221 63221000

Protecting sensitive electronics in harsh environments requires a robust housing that can withstand dust, moisture, and mechanical impact. The Bopla ET 221 universal enclosure provides a secure, light grey (RAL 7035) ABS shell for your electronic components, ensuring reliable operation even in demanding conditions.

Who is it for

This enclosure is ideal for electrical engineers, system integrators, and hobbyists who need a dependable housing for control units, sensors, or custom electronics. It suits industrial automation, outdoor installations, and any application where protection against environmental factors is critical.

Main features

• Durable ABS construction with light grey RAL 7035 finish
• External dimensions: 200 mm length, 120 mm width, 77 mm height
• IP65 protection against dust and water jets
• Impact resistance rated IK07
• UV resistant for outdoor use
• Operating temperature range: -40 to +80 °C
• Wall mountable via integrated screw channels
• Internal mounting bosses for PCBs or mounting plates
• Lid secured with 4 stainless steel screws
• Flammability rating UL 94 HB

Specifications

• Material: ABS (Acrylonitrile Butadiene Styrene)
• Colour: Light grey (RAL 7035)
• External dimensions: 200 x 120 x 77 mm
• Protection class: IP65
• Impact resistance: IK07
• Operating temperature: -40 to +80 °C
• Flammability rating: UL 94 HB
• Lid fastening: 4 stainless steel screws
• Mounting: Wall mounting via integrated screw channels
• UV resistance: Yes
• Chemical resistance: Good against aqueous solutions, weak acids, and bases
• Internal mounting: Mounting bosses for PCBs or mounting plates
• RoHS compliant: Yes

Tips

When selecting an enclosure, verify that the internal dimensions accommodate your components and any required clearance. For outdoor use, the UV resistance and IP65 rating ensure long-term reliability. Consider using a mounting plate for easier assembly and serviceability.
