Bopla TOPLINE ATPH 1850-100 Caixa de consola, alumínio, cinzento-grafite (RAL 7024), 100 x 181 x 53 mm 92850100.MT6

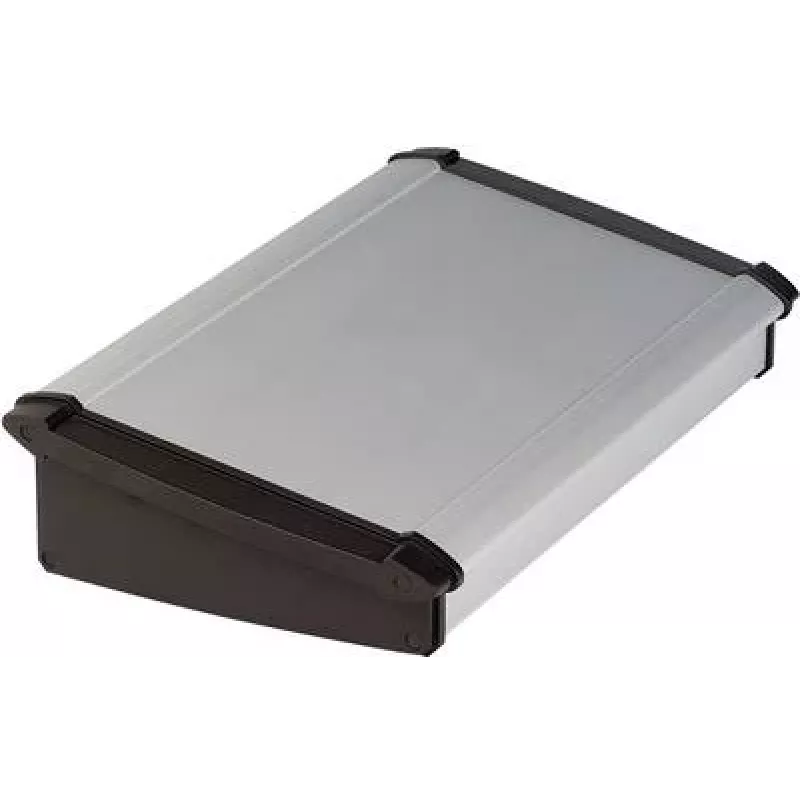

This console enclosure from Bopla's TOPLINE ATPH series offers a sloping front panel design that sets it apart from standard flat enclosures, providing an ergonomic viewing angle for control units and display devices. The body is constructed from anodized aluminium profile, while the end covers are die-cast aluminium with a powder-coated finish in graphite grey (RAL 7024). Integrated screw channels inside allow direct mounting of PCBs and components without additional brackets.

Highlights

• Sloping console profile for comfortable operation and viewing
• Durable aluminium construction with anodized profile and powder-coated end covers
• Integrated screw channels simplify internal assembly
• Graphite grey (RAL 7024) colour suits industrial and laboratory environments

In daily use

Designed for desktop or surface mounting, this enclosure is well suited for measurement devices, test equipment, and control units. The external dimensions of 100 mm depth, 181 mm width, and 53 mm height provide a compact footprint while still accommodating typical electronics. The standard IP40 protection class is appropriate for indoor applications where no exposure to water or dust is expected.

Full specifications

• Enclosure type: Console enclosure
• Series: TOPLINE ATPH
• External dimensions (D x W x H): 100 x 181 x 53 mm
• Material: Aluminium profile with die-cast aluminium end covers
• Colour: Graphite grey (RAL 7024)
• IP rating: IP40
• Mounting type: Desktop / surface mount
• Internal mounting: Integrated screw channels
• Finish: Anodized profile, powder-coated end covers
• RoHS compliance: Yes

Final note

A robust and practical choice for custom control panels and instrumentation, offering a professional appearance and straightforward assembly.
