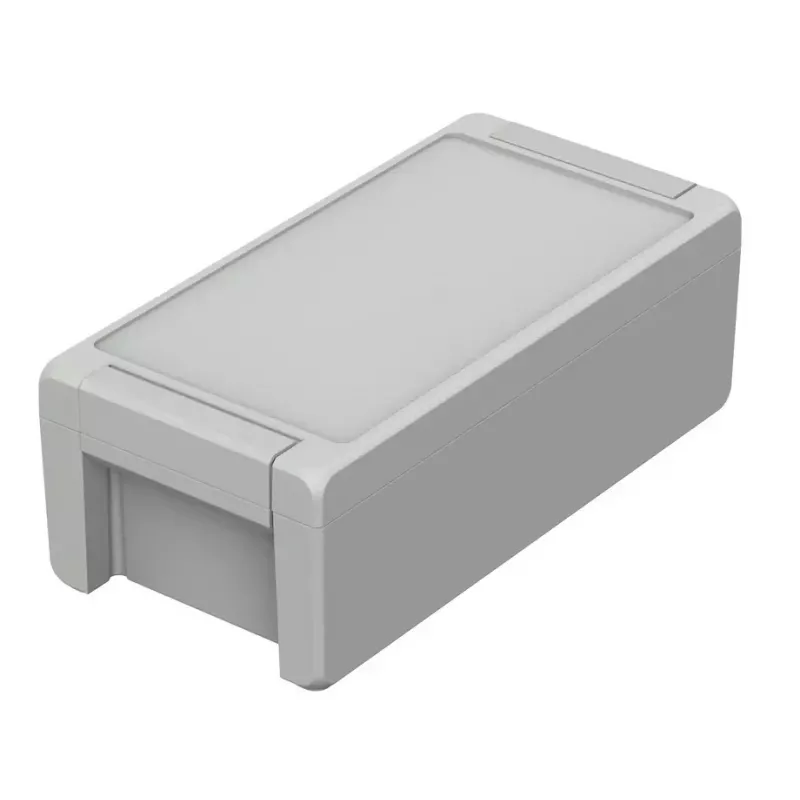

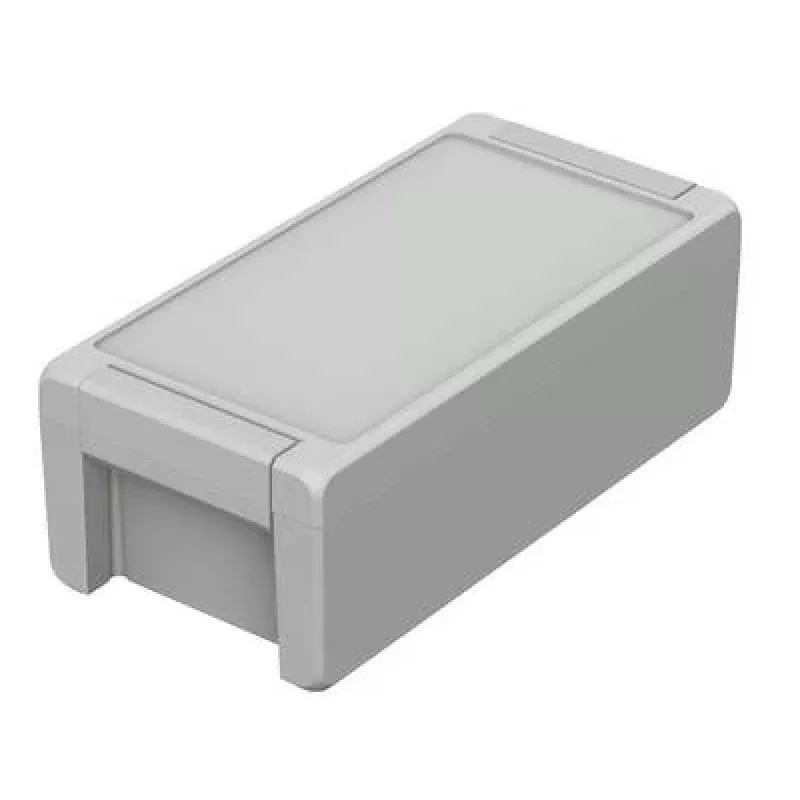

Bopla BA 241309 F-7035 Caixa universal 259 x 128 x 90 alumínio cinzento claro (RAL 7035) 00125235

Industrial control builders and system integrators use this Bopla BA series enclosure to house electronics in harsh environments. The aluminium body with light grey powder coating provides durability and corrosion resistance, while the neoprene gasket and captive stainless steel lid screws ensure a reliable seal against dust and water ingress.

Key specifications

• External dimensions: 259 x 128 x 90 mm
• Material: Aluminium, powder-coated light grey (RAL 7035)
• Protection class: IP65
• Gasket material: Neoprene
• Lid fastening: Captive stainless steel screws
• Wall thickness: 2.5 mm
• Operating temperature range: -40 to +100 °C
• Internal mounting bosses for PCBs or mounting plates

Why choose it

The BA 241309 F-7035 offers a robust, sealed enclosure for industrial electronics. Its aluminium construction provides excellent heat dissipation and mechanical strength, while the IP65 rating ensures protection against dust and low-pressure water jets. The light grey powder coating is both attractive and resistant to wear.

Ideal use cases

• Industrial control systems
• Measurement and instrumentation
• Junction boxes
• Outdoor electronics requiring weather protection

Good to know

The enclosure includes internal mounting bosses for easy installation of PCBs or mounting plates. The captive stainless steel screws prevent loss during maintenance. Operating temperature range is -40 to +100 °C, making it suitable for a wide range of environments.
