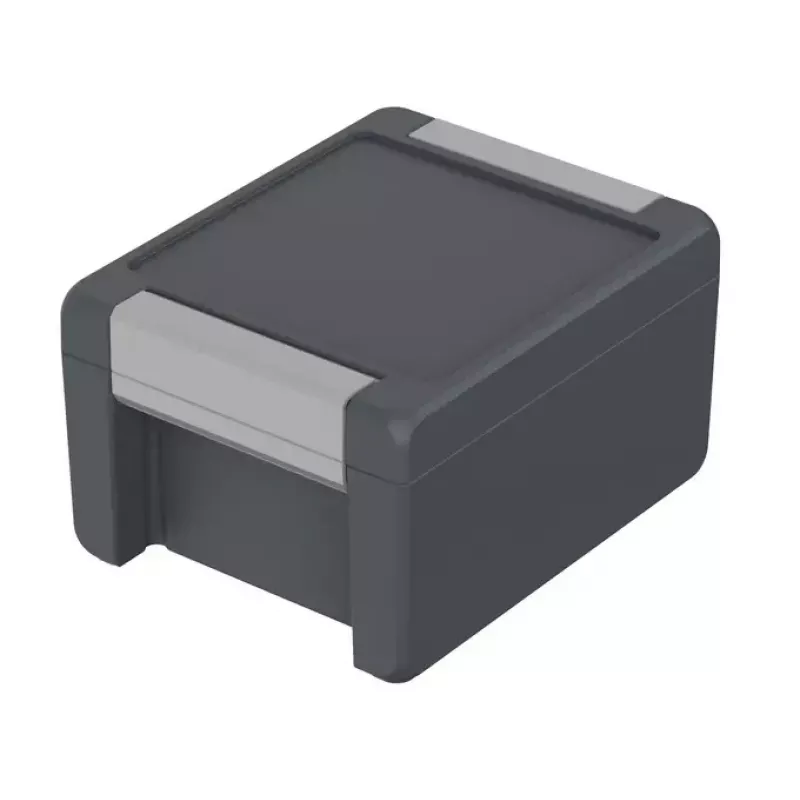

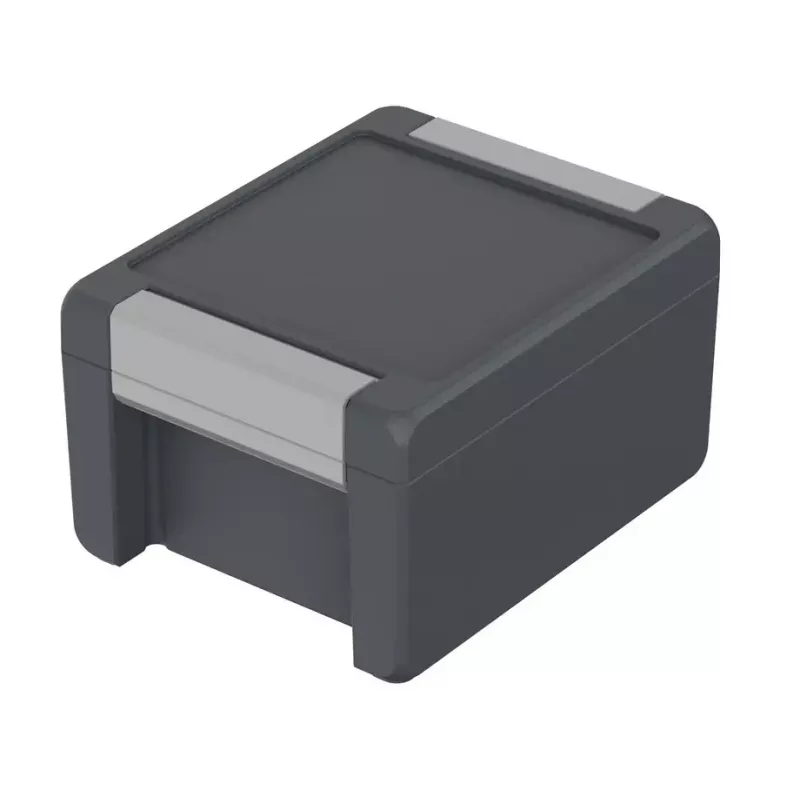

Bopla BA 141309 F-7024 Caixa universal 159 x 128 x 90 alumínio cinzento-grafite RAL 7024 00123234

The Bopla BA 141309 F-7024 is a rugged aluminium universal enclosure measuring 159 x 128 x 90 mm, finished in graphite grey (RAL 7024). Its die-cast aluminium body and silicone gasket provide a durable housing for electronics in demanding environments.

Highlights

• External dimensions: 159 mm length, 128 mm width, 90 mm height
• Material: Aluminium with powder-coated surface
• Colour: Graphite grey (RAL 7024)
• Protection class: IP66
• Impact resistance: IK08
• Mounting: Wall or panel mount
• Integrated mounting bosses for PCBs or plates
• Operating temperature: -40 to +100 °C

In daily use

This enclosure is suitable for housing industrial electronics, controllers, and measurement devices. The stainless steel lid screws provide secure closure, and the silicone gasket ensures a tight seal against dust and water. The integrated mounting bosses simplify installation of internal components.

Full specifications

• Enclosure type: Universal enclosure
• Series: BA Series
• Material: Aluminium
• External length: 159 mm
• External width: 128 mm
• External height: 90 mm
• Colour: Graphite grey
• RAL colour code: RAL 7024
• Protection class: IP66
• Impact resistance: IK08
• Lid fastening: Stainless steel screws
• Mounting type: Wall / panel mount
• Surface finish: Powder coated
• Operating temperature range: -40 to +100 °C
• Gasket material: Silicone
• Internal mounting: Integrated mounting bosses for PCBs/plates
• RoHS compliant: Yes
• Weight: 0.9 kg

Final note

With its robust aluminium construction and IP66 protection, the Bopla BA 141309 F-7024 is a reliable choice for industrial applications requiring a durable and weather-resistant enclosure.
