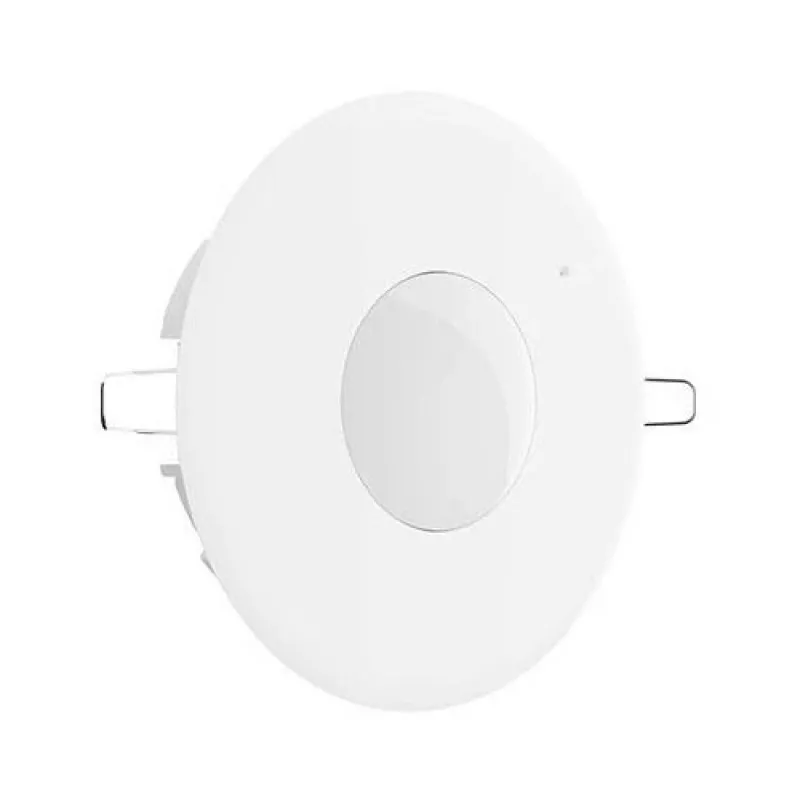

Satel SLIM-R-DUAL-LUNA BUS Detetor de movimento de teto duplo com função de iluminação, encastrado

The Satel SLIM-R-DUAL-LUNA BUS is a dual-technology ceiling-mounted motion detector with an integrated LED lighting function, designed for recessed installation. It combines passive infrared (PIR) and microwave detection to provide reliable intrusion detection while also serving as a convenient light source. The detector communicates via the SATEL BUS, making it ideal for integration into SATEL alarm systems.

Advantages

Dual detection technology (PIR + microwave) reduces false alarms. Integrated LED lighting provides illumination on demand. Recessed mounting offers a discreet, flush appearance. Remote configuration via DLOADX software simplifies setup. Anti-masking and tamper protection enhance security.

Suitable for

• Ceiling-mounted intrusion detection in residential and commercial premises
• Areas requiring both motion detection and ambient lighting
• Integration with SATEL BUS alarm systems

Key specifications

• Detection Technology: Dual (PIR + Microwave)
• Mounting Type: Ceiling, Recessed
• Communication Interface: SATEL BUS
• PIR Detection Range: Up to 3.6 m radius (at 2.4 m mounting height)
• Detection Angle: 360°
• Microwave Frequency: 24.125 GHz
• Power Supply Voltage: 12 VDC (from BUS)
• Current Consumption (Standby): 20 mA
• Current Consumption (Max): 100 mA (with LED lighting)
• Operating Temperature Range: -10°C to +55°C
• Environmental Class: II (EN 50131-1)
• Security Grade: Grade 2 (EN 50131-2-4)
• Special Features: Integrated LED lighting, Anti-masking (microwave), Tamper protection
• Housing Material: ABS Plastic
• Color: White
• Mounting Hole Diameter: 75 mm
• Configuration: Remote via DLOADX software
• Compliance: EN 50131-1, EN 50131-2-4

Recommendations

For optimal performance, mount at a height of 2.4 m and ensure the mounting hole diameter is 75 mm. Use DLOADX software for configuration. This detector is compatible with SATEL BUS alarm panels.
