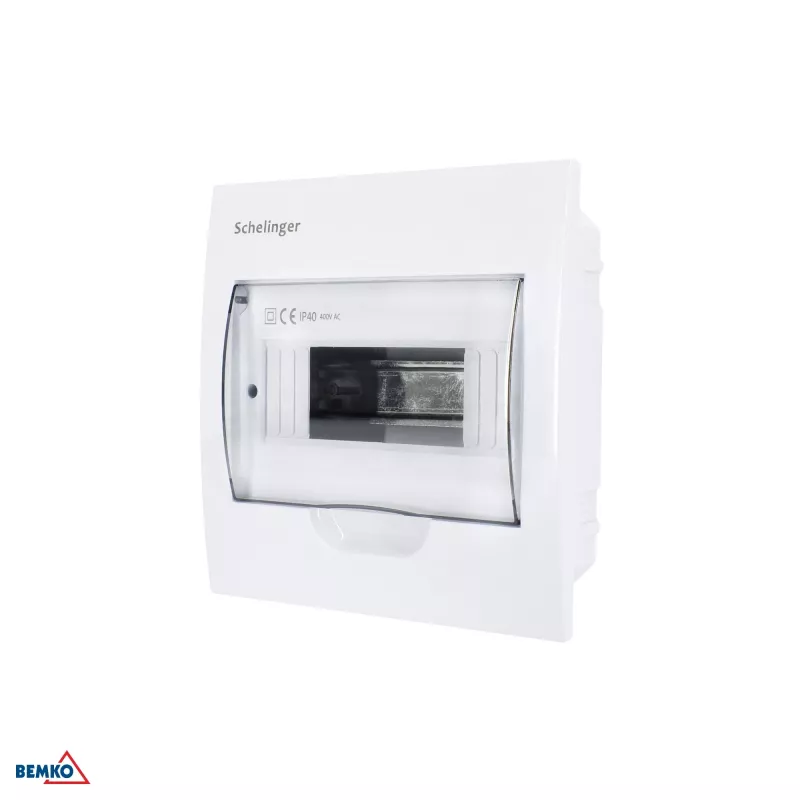

SCHELINGER A80-RDP-IP40-NPE-08P Quadro de distribuição para embutir IP40, 8 módulos, 1 fila, 8N+8PE bornes, porta transparente, branco

The SCHELINGER A80-RDP-IP40-NPE-08P is a high-quality flush-mounted distribution board designed for indoor electrical installations. With an IP40 protection rating, it offers reliable protection against solid objects larger than 1 mm. The enclosure is made of durable ABS plastic, and the transparent polycarbonate door allows easy inspection of the installed components. This board comes with 8 neutral (N) and 8 protective earth (PE) terminals, providing ample connectivity for residential and commercial applications.

Advantages

• Flush-mounted design for a clean, space-saving installation
• IP40 protection against dust and touch
• Transparent door for quick visual checks without opening
• 8N+8PE terminals included, reducing the need for additional accessories
• Reversible door with 180° opening angle for flexible access
• Compliant with PN-EN 60439-3 and PN-EN 60670-24 standards

Suitable for

• Residential electrical distribution
• Small commercial installations
• Indoor flush-mounting in walls
• Applications requiring up to 8 modules

Key specifications

• Installation Type: Flush-mounted (recessed)
• IP Rating: IP40
• Number of Modules: 8
• Number of Rows: 1
• Neutral Terminals: 8
• Protective Earth (PE) Terminals: 8
• Enclosure Material: ABS plastic
• Door Material: Polycarbonate (PC), transparent
• Colour: White (housing), transparent (door)
• Rated Insulation Voltage (Ui): 500 V
• Glow Wire Test: 650°C
• Operating Temperature: -25°C to +60°C
• Standards: PN-EN 60439-3, PN-EN 60670-24
• Door Opening Angle: 180°
• Reversible Door: Yes
• Recessed Depth: 70 mm

Recommendations

For optimal performance, ensure proper installation by a qualified electrician. The distribution board is designed for indoor use only. Use appropriate cable glands for cable entry.
