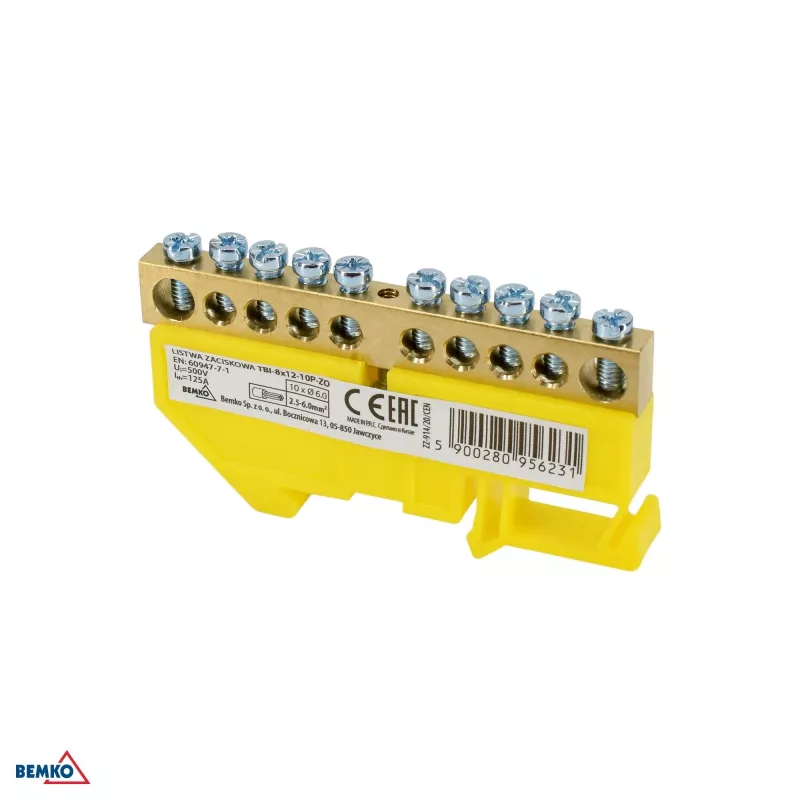

SCHELINGER Borne de série para barramento de 8x12 mm, 10 polos, amarelo

Terminal strip for 8x12 mm busbar with 10 output terminals, engineered for reliable neutral and protective earth distribution in electrical distribution boards and consumer units. Its robust brass conductors and polyamide insulation ensure safe operation up to 100 A and 400 V AC, while the screw terminals accept wires from 1.5 to 16 mm².

Advantages

This terminal strip simplifies wiring by consolidating multiple connections onto a single busbar. The yellow colour provides clear identification for earth or neutral circuits, and the surface-mount design with screw holes allows secure installation in any enclosure. Compliance with EN 60947-7-1 guarantees performance and safety.

Suitable for

• Distribution boards in residential and commercial buildings
• Consumer units requiring multiple earth or neutral terminations
• Panel builders and electrical installers
• Retrofitting existing busbar systems with 8x12 mm profile

Key specifications

• Number of poles: 10
• Busbar compatibility: 8x12 mm
• Rated voltage: 400 V AC
• Rated current: 100 A
• Output connection: screw terminal, 1.5–16 mm²
• Insulation material: polyamide (PA)
• Conductive material: brass
• Protection degree: IP20
• Operating temperature: -25°C to +70°C

Recommendations

For optimal performance, mount the strip on a flat surface using the provided screw holes and ensure the busbar is properly seated in the main clamp. Tighten output screws to the recommended torque for the wire size to avoid loose connections.
