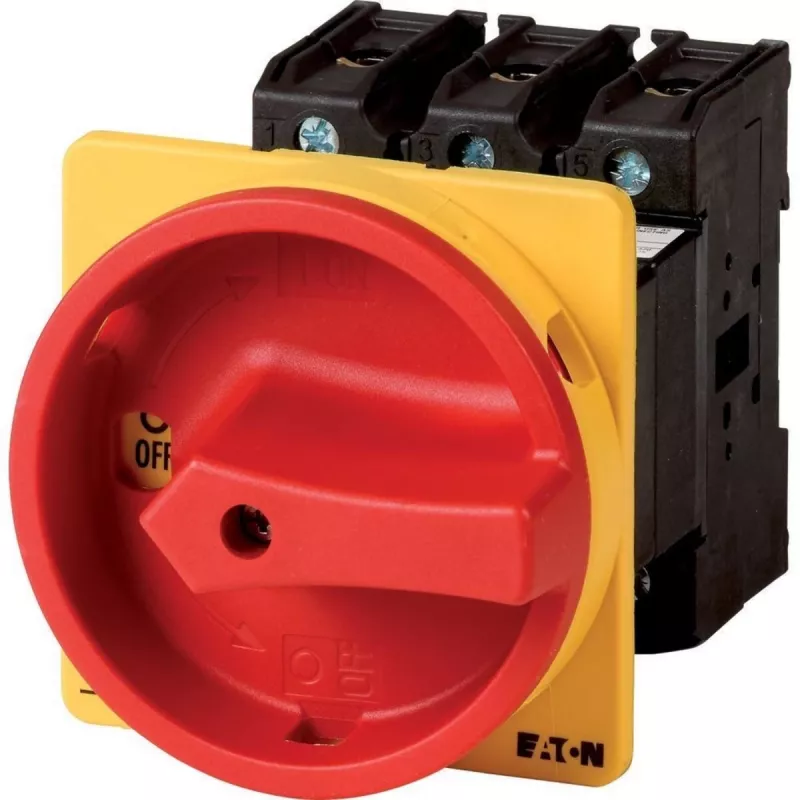

Seccionador de carga ON-OFF EATON P3-63/V/SVB 63A 3 polos, montagem intermédia, IP65 048218

In industrial control panels and machine power distribution, the EATON P3-63/V/SVB serves as a robust main switch for safely isolating 63 A three-phase circuits. Its intermediate mounting design and IP65 front protection make it suitable for installation in enclosures where operators need a reliable, lockable disconnect point.

Key specifications

• Rated operational current (Ie): 63 A
• Number of poles: 3-pole
• Switching function: ON-OFF (main switch)
• Mounting type: intermediate mounting / panel mounting
• Degree of protection (front): IP65
• Rated operational voltage (Ue): 690 V AC
• Rated impulse withstand voltage (Uimp): 6 kV
• Rated short-circuit making capacity (Icm): 1.26 kA at 690 V
• Rated short-circuit withstand current (Icw): 1 kA for 1 s
• Rated uninterrupted current (Iu): 63 A
• Rated power (AC-23A, 400 V): 30 kW
• Connection type: screw terminals

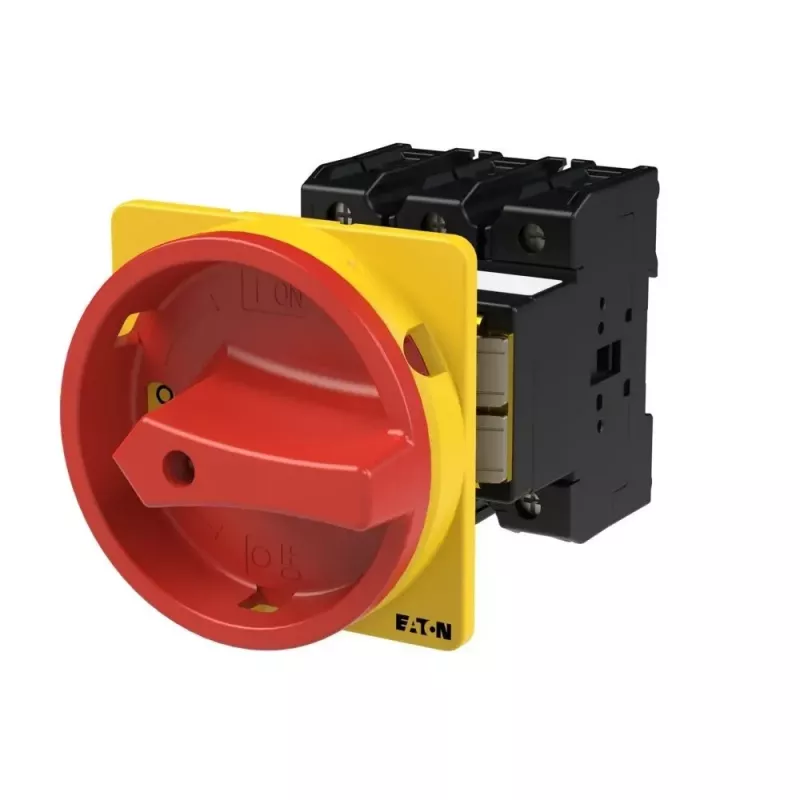

• Handle type: red/yellow, lockable
• Electrical life: > 100,000 operations
• Mechanical life: > 200,000 operations
• Ambient operating temperature: -25 to +50 °C
• Standards compliance: IEC/EN 60947, VDE 0660

Why choose it

The P3-63/V/SVB combines high switching capacity with a compact intermediate mounting form factor. Its lockable red/yellow handle ensures safe isolation during maintenance, while the IP65 front seal protects against dust and water ingress in demanding environments.

Ideal use cases

• Main disconnect for motor control centers and distribution boards
• Safety isolation switch for machine tools and conveyor systems
• Panel-mounted ON-OFF control for industrial equipment

Good to know

This switch disconnector is engineered to meet stringent IEC/EN 60947 and VDE 0660 standards, ensuring reliable performance and compliance in global installations. Its screw terminals accept a wide range of conductor sizes for flexible wiring.
