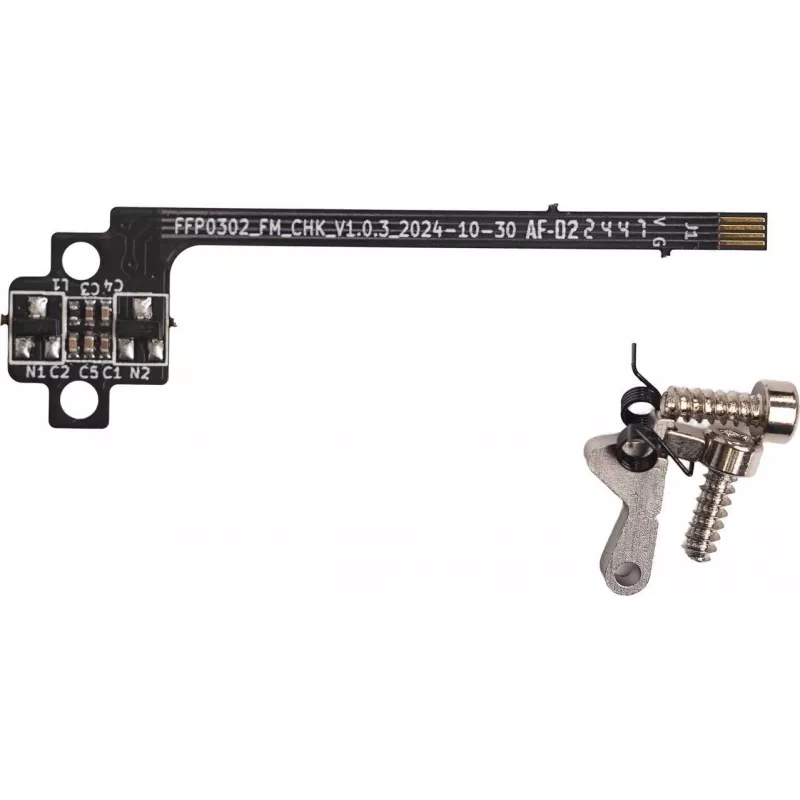

Sensor de deteção de filamento Flashforge AD5X — deteção de fim de filamento compatível para impressora 3D

Flashforge AD5X Filament Detection Sensor is a stand-alone filament run-out detection module designed for FDM 3D printers. The sensor monitors whether filament is present in the feed path and sends a signal to the printer controller in case of interruption or depletion, allowing the machine to pause the print and support filament change or recovery. The compact module is intended for integration with compatible Flashforge models and other printers that accept external filament detection signals.

Advantages

The sensor provides automatic monitoring of filament presence to reduce the risk of failed prints caused by breakage or spool exhaustion. Its stand-alone design simplifies installation without requiring complex firmware changes on many machines, and it communicates via a simple run-out signal compatible with common 3D printer controllers. The module's compact footprint and cable-based connection make it adaptable to different printer setups and filament paths.

Suitable for

• FDM 3D printers that accept an external filament run-out input
• Workflows where long or unattended prints are performed
• Environments aiming to reduce material waste from failed prints

Key specifications

• Function: filament presence detection with run-out signal output
• Design: compact stand-alone module suitable for inline mounting
• Connection: cable interface for signal and power integration with printer electronics
• Compatibility: compatible with Flashforge AD5X-supporting printers and other controllers accepting a standard run-out input
• Operation: senses filament interruption and depletion to trigger printer pause or recovery procedures

How to use

Mount the filament detection sensor in the filament feed path where it can reliably detect filament movement or presence. Connect the sensor cable to the printer’s designated run-out or filament-detection input following the printer manufacturer’s wiring recommendations. After physical installation and electrical connection, test the sensor by feeding filament through the detection point and verifying that the printer responds to filament removal or simulated breakage by pausing or issuing a run-out alert. Adjust placement if the sensor does not consistently detect the filament.

Recommendations

For reliable operation, place the sensor where filament passes smoothly without excessive bending or tension. Use clean filament free of dust and debris to avoid false triggers. If the printer firmware requires configuration for external run-out signals, follow the printer maker’s guidance to enable and test the feature before running long prints.
