Placa adaptadora de extrusora FlashForge 30002137001 para C3P L

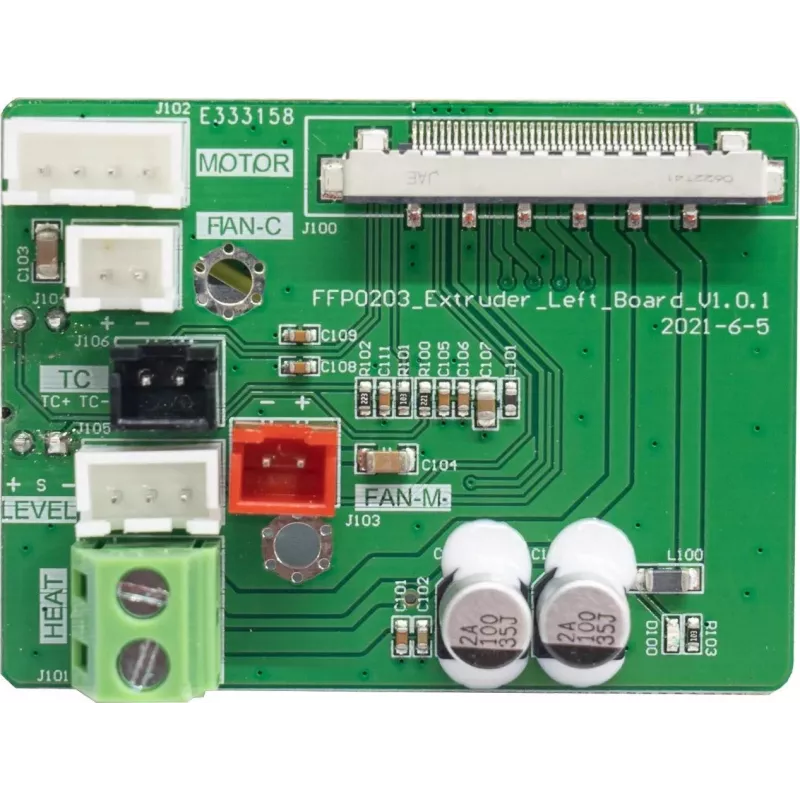

The FlashForge extruder adapter board for C3P L is an electronic replacement component engineered to interface the extruder assembly with the printer's mainboard. It routes control signals and power to the extruder, restoring or maintaining proper communication between stepper motors, heaters, thermistors and control electronics. Designed as a direct-fit service part for C3P L models, the adapter board allows technicians and users to repair or upgrade the extruder subsystem without major modifications.

Advantages

This adapter board provides a precise and reliable connection between the extruder and the main electronics, reducing downtime caused by connector fault or board-level failures. The component is designed to meet the electrical and mechanical specifications required by the C3P L extruder, ensuring consistent signal integrity and power delivery. Using a dedicated adapter board can simplify repairs, lower the risk of incorrect wiring, and restore functionality faster than replacing larger assemblies.

Suitable for

• Repairing a non-responsive extruder on FlashForge C3P L printers
• Replacing damaged or corroded extruder connector electronics
• Service workshops performing routine maintenance or electronic swaps
• Upgrades where separation of extruder electronics from the mainboard is required

Key specifications

• Function: extruder-to-mainboard adapter for signal and power routing
• Compatibility: designed for FlashForge C3P L extruder assemblies
• Connections: multi-pin connector interfaces for stepper, heater, thermistor and control signals
• Form factor: compact board sized to fit C3P L extruder mounting points
• Electrical: rated to handle typical extruder heater and motor currents used in desktop FDM printers

How to use

Power the printer off and disconnect it from mains before beginning any service. Remove the extruder assembly access panels to reach existing cables and connectors. Unplug the original connector harness from the extruder and detach any retaining screws or clips securing the old adapter, if present. Mount the replacement adapter board in the designated position, reconnect the harnesses ensuring each connector mates securely, and fasten any mechanical retainers. Reassemble panels, restore power and perform a controlled start-up sequence. Confirm extruder motor movement, correct temperature reporting from the thermistor, and stable heater operation via the printer's diagnostics or control interface before resuming prints.

Recommendations

Use appropriate electrostatic discharge (ESD) precautions when handling the adapter board. Verify connector orientation and pin alignment before applying power. If uncertain about installation, consult the printer service manual or a qualified technician to avoid damage to the extruder or mainboard.
