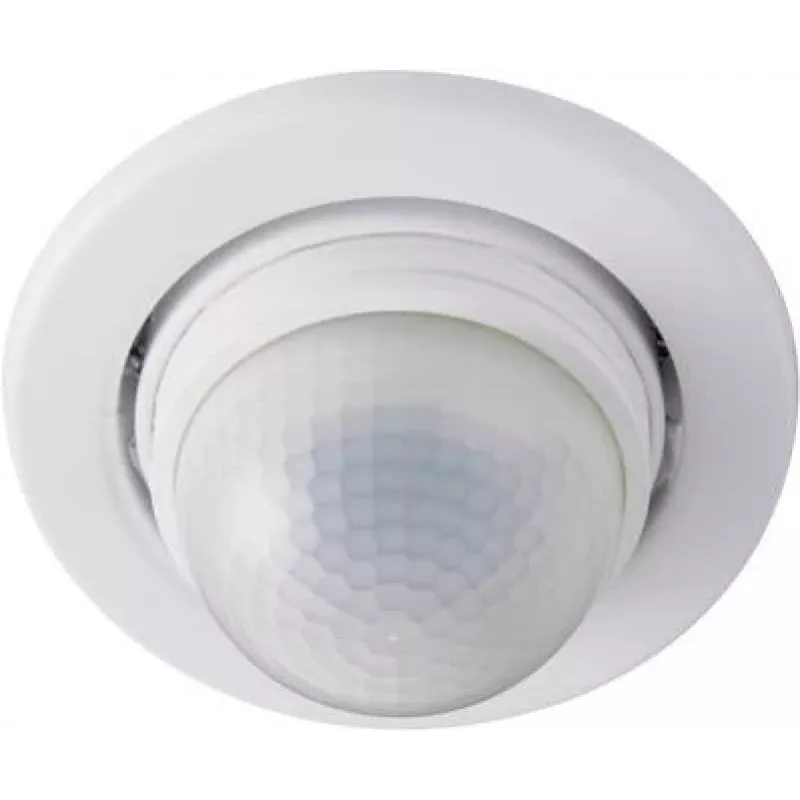

Sensor de infravermelhos passivo STEINEL IS D360 com fios teto branco

The STEINEL IS D360 is a compact wired passive infrared ceiling sensor for indoor use, designed to fit into any standard recessed spotlight bezel (e.g. GU10 size). It provides 360° detection coverage with a maximum tangential reach of up to 8 m and is suitable for installation heights up to 2.5 m. The device has a floating contact rated for 50–250 V and connects to 230–240 V AC supply; its discreet housing matches common spotlights and recessed fittings.

Advantages

The IS D360 combines a small form factor with full-circle detection, allowing near-invisible integration into suspended ceilings and standard spotlight surrounds. Its multi-lens design delivers reliable motion detection across a broad area while the floating contact and standard mains compatibility simplify wiring and integration with existing lighting circuits. The compact dimensions make it suitable where space is limited and where a low-profile sensor appearance is preferred.

Suitable for

• Motion detection in corridors and hallways
• Automatic control of recessed spotlights in offices and retail spaces
• Energy-saving lighting control in residential ceilings
• Ceiling-mounted presence detection in utility rooms and stairwells

Key specifications

• Brand: Steinel
• Model: IS D360 (MPN 601317, EAN 4007841601317)
• Type: Wired passive infrared ceiling sensor
• Power supply: 230–240 V AC
• Floating contact: 50–250 V
• Detection angle: 360°
• Max. tangential reach: up to 8 m
• Recommended installation height: up to 2.5 m
• Dimensions: 83 × 83 × 82 mm
• Colour: White

How to use

Install the IS D360 into a compatible standardized spotlight bezel or recessed ceiling surround at a recommended height of up to 2.5 m. Connect the sensor to the mains supply (230–240 V AC) and wire the floating contact to the lighting circuit according to applicable electrical regulations and the product wiring diagram. After installation, allow the sensor a brief initialization period; the multi-lens detects movement within a 360° radius and switches the connected lights accordingly.

Recommendations

For reliable detection, mount the sensor at the recommended height and ensure the surrounding bezel or spotlight opening does not obstruct the multi-lens. Avoid installing near strong heat sources or large moving objects that may trigger false detections. All electrical connections should be made by a qualified electrician in accordance with local standards.
