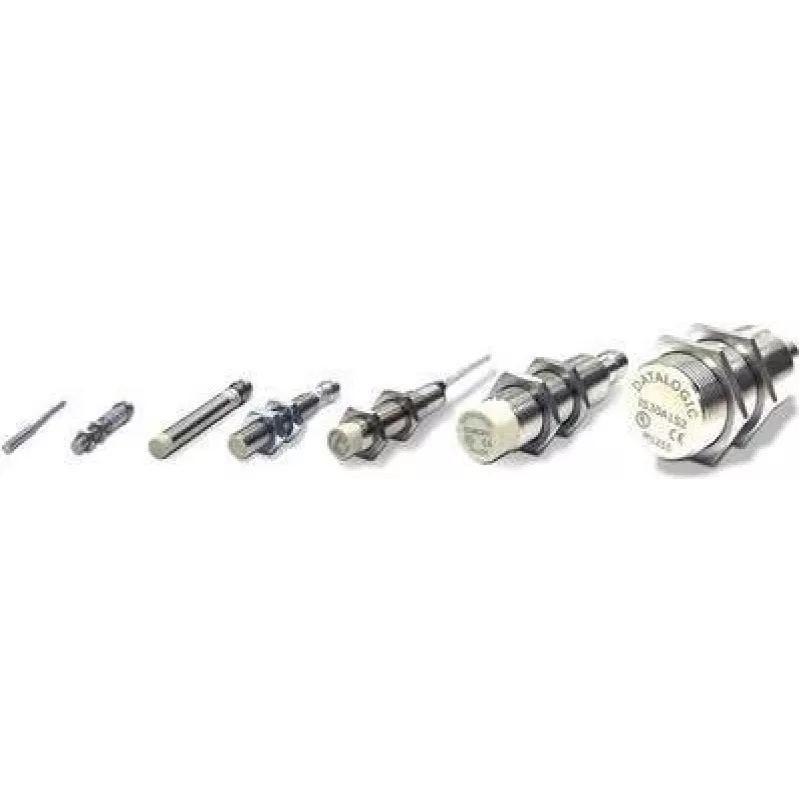

Sensor de proximidade indutivo Datalogic IS-08-A1-03 M8 PNP embutido (MPN 95B061121)

Datalogic IS-08-A1-03 is an M8 inductive proximity sensor with PNP output and flush mounting designed for non-contact detection of metal targets. The sensor is compact and intended for integration into automation systems and machine safety applications where reliable metal sensing is required in tight spaces. Typical roles include position detection, end-of-travel sensing, and integration into control panels and conveyor systems.

Advantages

The sensor provides reliable metal detection through inductive sensing technology with a compact M8 form factor suitable for flush mounting. PNP output allows direct interfacing with common PLC and control inputs. Flush mounting minimizes protrusion and protects the sensing face in recessed installations. The design supports repeated, contactless detection cycles and is suitable for use in confined or densely packed assemblies.

Suitable for

• Position detection of metal components in automated equipment
• End-of-travel sensing on actuators and linear guides
• Presence detection on conveyors and material handling lines
• Integration into control panels and machine safety circuits

Key specifications

• Sensing principle: inductive (metal detection)
• Housing size: M8 cylindrical
• Mounting: flush
• Output type: PNP
• Connection: cable or connector style typical for M8 sensors (verify variant)
• Target compatibility: ferrous and non-ferrous metal targets within rated sensing range

How to use

Install the sensor into a properly prepared M8 threaded receptacle allowing flush mounting so the sensing face is aligned with the surrounding metal if required by the application. Route the cable or connect the sensor using the appropriate connector to the control system, observing correct polarity for PNP wiring. Adjust mounting position to ensure the target crosses the sensor’s rated sensing distance during operation. After wiring and mounting, verify detection by moving representative metal targets through the detection zone and confirm correct switching on the control input.

Recommendations

Place the sensor to avoid strong electromagnetic interference and ensure adequate clearance from large metal masses that could affect sensing distance. Use appropriate cable protection and strain relief in moving or harsh environments. For mounting in multi-sensor arrays, respect manufacturer-recommended spacing to prevent mutual interference and confirm compatibility of the PNP output with the receiving control device.
