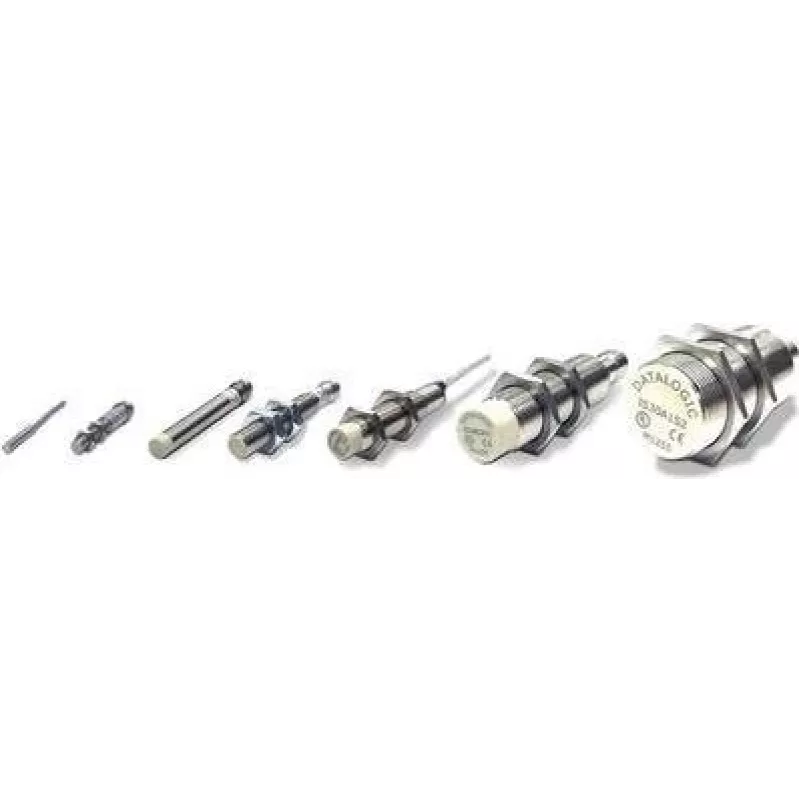

Sensor de proximidade indutivo Datalogic IS-08-H1-S1 M8 não embutido PNP (95B066960)

The Datalogic IS-08-H1-S1 is an M8 inductive proximity sensor with non-flush mounting and PNP output designed for reliable metallic object detection in industrial automation. Its compact cylindrical housing makes it suitable for confined installation spaces where contactless sensing of metal targets is required. The sensor converts the presence of nearby metal into a stable electrical signal for machine control, position detection and part counting tasks.

Advantages

This inductive sensor provides contactless detection of metal targets with a compact M8 form factor, enabling installation in tight spaces. Non-flush mounting improves sensitivity in through-beam and surface-proximate applications while the PNP output offers straightforward integration with common PLC and control systems. The robust design ensures consistent switching behavior in automated production environments.

Suitable for

• Metal object detection on conveyor systems
• Position sensing of moving machine parts
• Counting and presence verification in assembly lines
• Integration into PLC-controlled automation circuits

Key specifications

• Sensor type: inductive proximity sensor
• Housing size: M8 cylindrical
• Mounting: non-flush (clearance required around sensing face)
• Output type: PNP (normally open/closed behavior depends on wiring)
• Target detection: metallic objects
• Connection: cable or connector suitable for industrial wiring (refer to technical datasheet for pinout)

How to use

Install the sensor in a location where the sensing face points toward the expected path of the metal target, maintaining the required non-flush clearance from surrounding metal to avoid shielding effects. Secure the M8 body in a compatible threaded mounting or clamp, and route the cable according to machine safety and EMC guidelines. Wire the PNP output to the control input of the PLC or relay following the wiring diagram provided by the manufacturer. After powering the system, verify switching operation by moving a representative metal target into the sensing range and confirm correct signal response on the control input.

Recommendations

For reliable operation, keep the sensing face clean and free of metal shavings or debris, avoid mounting in direct contact with large metal surfaces that could reduce sensing range, and follow the device’s environmental and electrical limits as specified in the manufacturer’s datasheet.
