Sensor de proximidade indutivo METZ CONNECT 2 fios DC M12 saliente NO 2mm IP67 cabo 2m 110149

Where standard cylindrical sensors rely on three-wire hookups, this METZ CONNECT unit keeps things simple with a 2-wire DC design that drops straight into existing PLC input loops without extra cabling. The M12 brass body, nickel-plated for corrosion resistance, houses a flush-mountable inductive core that detects ferrous targets at a fixed 2 mm gap—no trimming, no drift. A built-in LED confirms switching state at a glance, while short-circuit and reverse polarity protection take the worry out of commissioning.

Highlights

• 2-wire DC operation (10–30 V) for minimal wiring
• Flush mounting in M12 threaded barrel
• Normally open output, 100 mA max
• IP67 sealed against dust and water jets
• 2 m PVC cable with robust strain relief

In daily use

Install it in a tooling nest, end stop, or rotary indexer and forget about it. The 1000 Hz switching frequency tracks fast cams and gear teeth without missing a beat, while the <0.8 mA no-load draw keeps panel supplies happy. When the target enters the 2 mm sensing zone, the output closes and the LED lights—immediate visual proof that the line is ready for the next cycle.

Full specifications

• Sensor principle: Inductive
• Housing: Cylindrical M12, brass nickel-plated
• Mounting: Flush (shielded)
• Output function: NO (normally open)

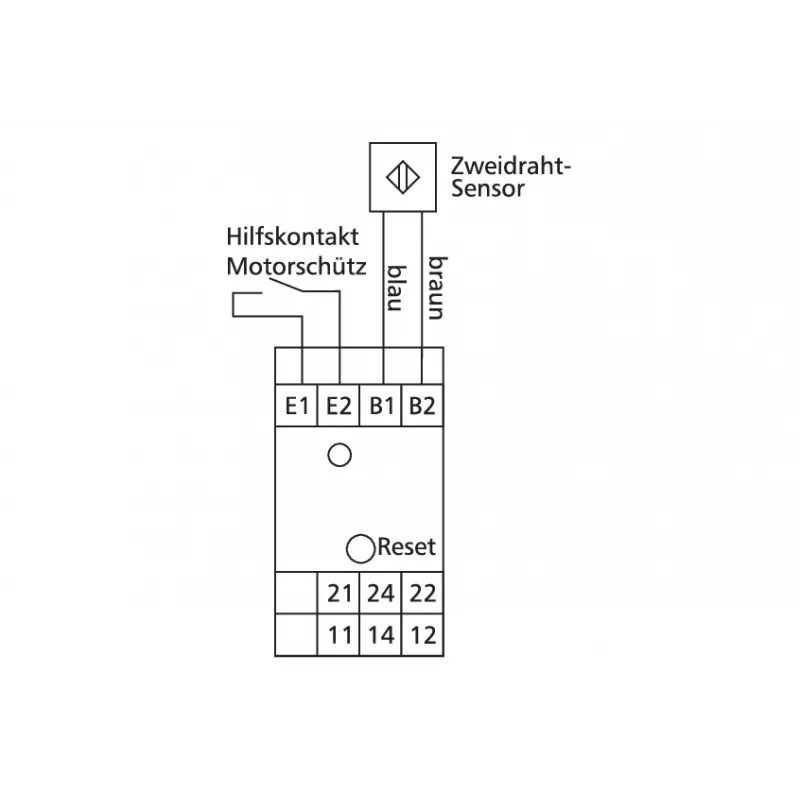

• Electrical connection: 2-wire DC
• Operating voltage: 10–30 V DC
• Sensing distance: 2 mm
• Switching frequency: 1000 Hz
• No-load current: <0.8 mA
• Max output current: 100 mA
• Voltage drop: <2.5 V
• Protection: IP67
• Operating temperature: -25 °C to +70 °C
• Connection: 2 m PVC cable
• Short-circuit protection: Yes
• Reverse polarity protection: Yes
• LED indicator: Yes

Final note

For OEMs and maintenance teams that value a straightforward, no-frills proximity switch, the METZ CONNECT 110149 delivers reliable detection without the complexity of programmable sensors.
