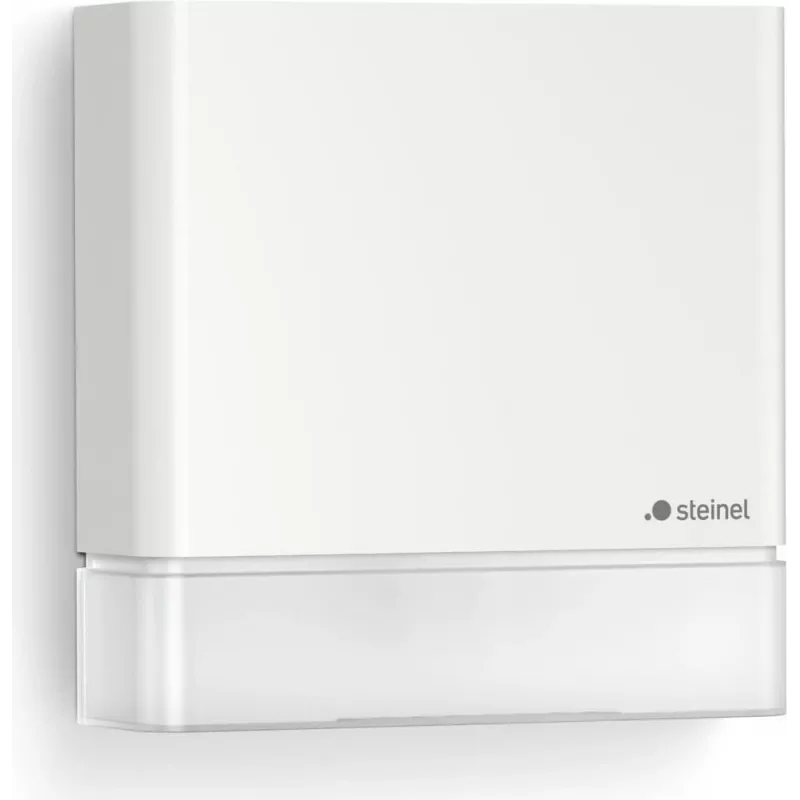

Sensor laser STEINEL IS 180 com fio parede branco exterior 220–240 V

The STEINEL IS 180 Wired Wall White Outdoor 220-240V is a compact, wired laser motion sensor designed for outdoor wall mounting. It combines a flat, straight-lined housing with discreet lens optics for an unobtrusive appearance and integrates advanced infrared detection and mirror technology to reliably sense movement within a radius of up to 8 m. The sensor is suitable for controlling outdoor lighting and networking with other devices via Bluetooth using the STEINEL Connect App.

Advantages

The IS 180 digi offers precise detection of radial and tangential movements thanks to new mirror and pyro sensor technology, with a 180° detection field and digital, zone-by-zone configuration. Sensitivity is adjustable independently for each of three zones. Its slim design and integrated lens optics make it visually unobtrusive on facades, while wired 220–240 V operation and low power consumption (0.6 W) support reliable outdoor lighting control.

Suitable for

• Outdoor wall-mounted lighting control
• Perimeter and entrance motion detection
• Integration with Bluetooth-enabled lighting systems via STEINEL Connect App
• Residential and small commercial outdoor installations

Key specifications

• Brand: Steinel
• Model: IS 180 (IS 180 digi)
• MPN: 067281
• EAN: 4007841067281
• Power supply: 220–240 V
• Power consumption: 0.6 W
• Detection angle: 180°
• Detection radius: up to 8 m
• Dimensions: 116 mm × 116 mm × 42 mm (W × H × D)
• Mounting: wired, outdoor wall

How to use

Mount the wired sensor on a suitable outdoor wall following local electrical regulations and the manufacturer’s installation instructions. Connect the device to the 220–240 V supply and position it so the detection field covers the desired area. Use the STEINEL Connect App via Bluetooth to configure the three detection zones, set sensitivity for each zone, and network the sensor with compatible lights or systems. After configuration, verify detection performance across the intended radius (up to 8 m) and adjust zone sensitivity if required.

Recommendations

For best detection and longevity, install the IS 180 digi at the recommended mounting height, avoid direct exposure to reflected heat sources, and use the app to fine-tune zone settings. Ensure electrical installation is performed by a qualified electrician and follow local safety standards.
