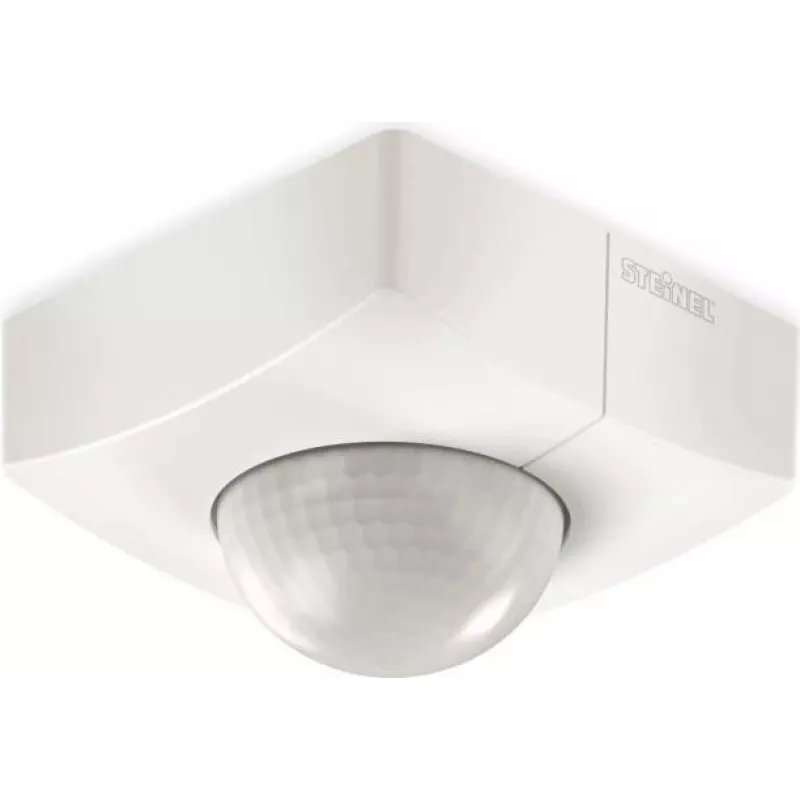

Sensor PIR de teto Steinel IS 3360 COM1 — com fios, AC 220–240 V, 2000 W, branco, 95×95×65 mm

Steinel IS 3360 COM1 is a ceiling-mounted passive infrared (PIR) presence detector designed for wired installation in indoor or covered outdoor environments. Powered from AC 220–240 V with a switching capacity of up to 2000 W, the compact white housing (95 × 95 × 65 mm) is suitable for lighting control and automated switching in large rooms and high-ceiling areas. The IS 3360 provides 360° coverage and tangential reach up to 20 m, enabling detection across extensive floor areas from installation heights up to 4 m.

Advantages

The IS 3360 COM1 combines long-range PIR detection with a robust relay for high switching loads, reducing the need for multiple sensors in large spaces. Its ceiling mounting and 360° coverage allow reliable presence detection across a wide radius, while the large terminal compartment simplifies wiring during installation. The compact white design integrates with typical ceiling finishes.

Suitable for

• Multi-storey and underground car parks
• Large production halls and warehouses
• High-ceiling corridors and stairwells
• Commercial and industrial lighting control
• Areas requiring automated switching at ceiling heights up to 4 m

Key specifications

• Sensor principle: Passive infrared (PIR)
• Power supply: AC 220–240 V
• Switching capacity: up to 2000 W
• Coverage angle: 360°
• Maximum tangential reach: up to 20 m
• Recommended installation height: up to 4 m
• Housing colour: white
• Dimensions (approx.): 95 × 95 × 65 mm
• Mounting: ceiling-mounted (surface or recessed options available)

How to use

Install the IS 3360 COM1 in accordance with applicable electrical regulations and wiring standards. Connect the unit to the AC 220–240 V supply and the controlled lighting circuit using the large terminal compartment for safe and convenient wiring. Position the sensor centrally where its 360° detection pattern and up to 20 m tangential reach provide the required coverage at an installation height of up to 4 m. After installation, adjust any on-device settings or commissioning parameters as required by the lighting control scheme.

Recommendations

For optimal performance, mount the detector on a stable ceiling surface free from strong air movement and avoid direct exposure to heat sources or reflective surfaces. Use the IS 3360 COM1 in spaces that match its recommended installation height and reach to minimise blind spots; where extremely localized detection is required, supplement with additional sensors.
