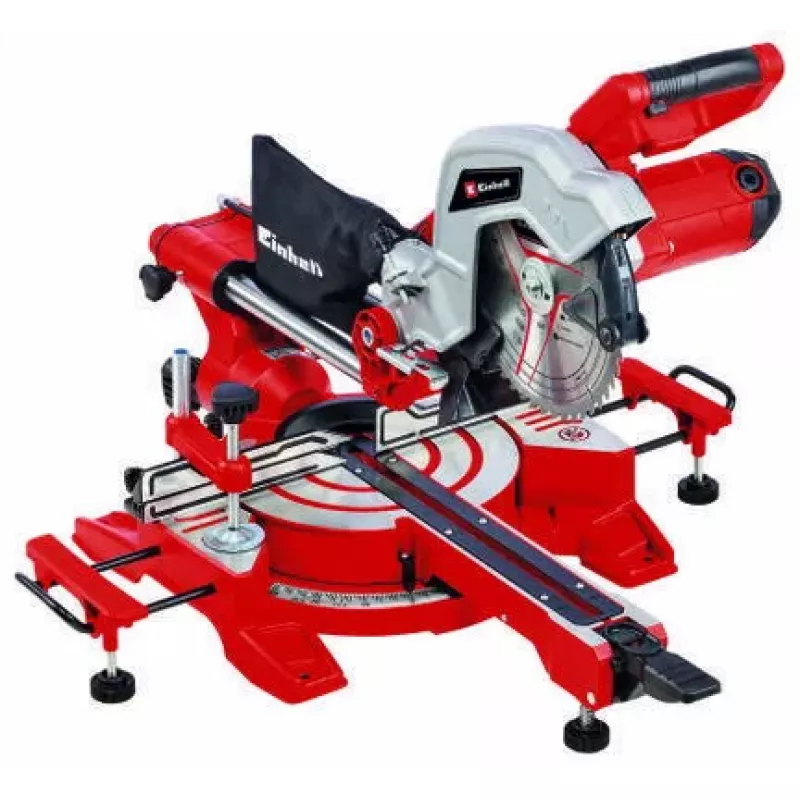

Serra Einhell TC-SM 216

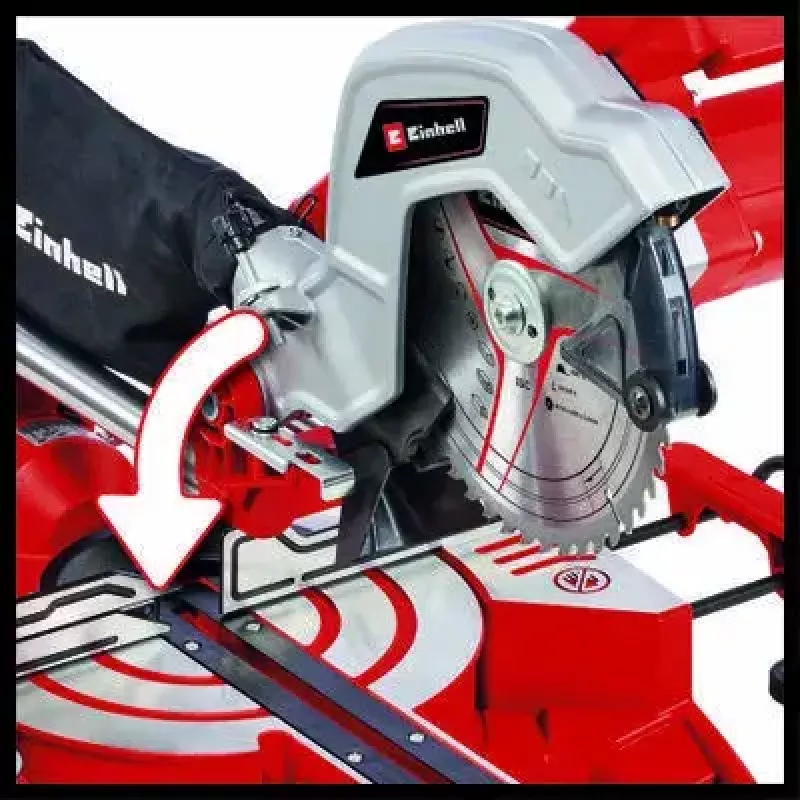

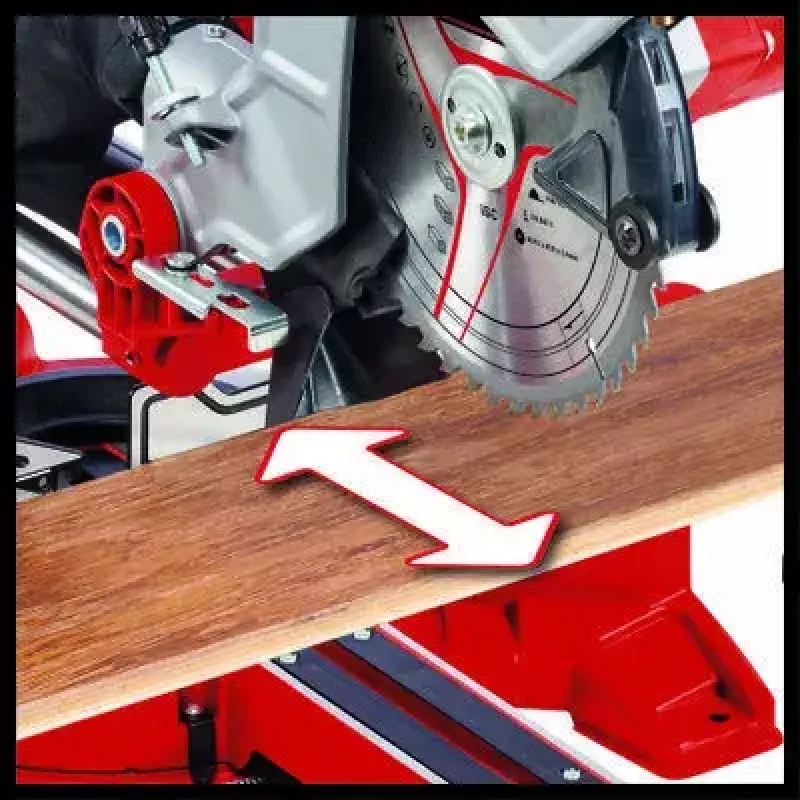

The Einhell TC-SM 216 is a compact crosscut and miter saw for home workshops, garages and DIY jobs. Powered by a 1,600 W motor and fitted with a high-grade carbide blade (Ø 216 mm / bore 30 mm), it delivers the cutting capacity needed for typical wood and panel materials. The saw offers a smooth sliding function for wider workpieces, angle-adjustable turntable with common-angle locks, and a tilting saw head for miter cuts. Integrated supports on both sides and a clamping device help secure long workpieces, while a cutting-line laser improves alignment. Dust extraction is possible via a 36 mm connector or the supplied dust bag.

Advantages

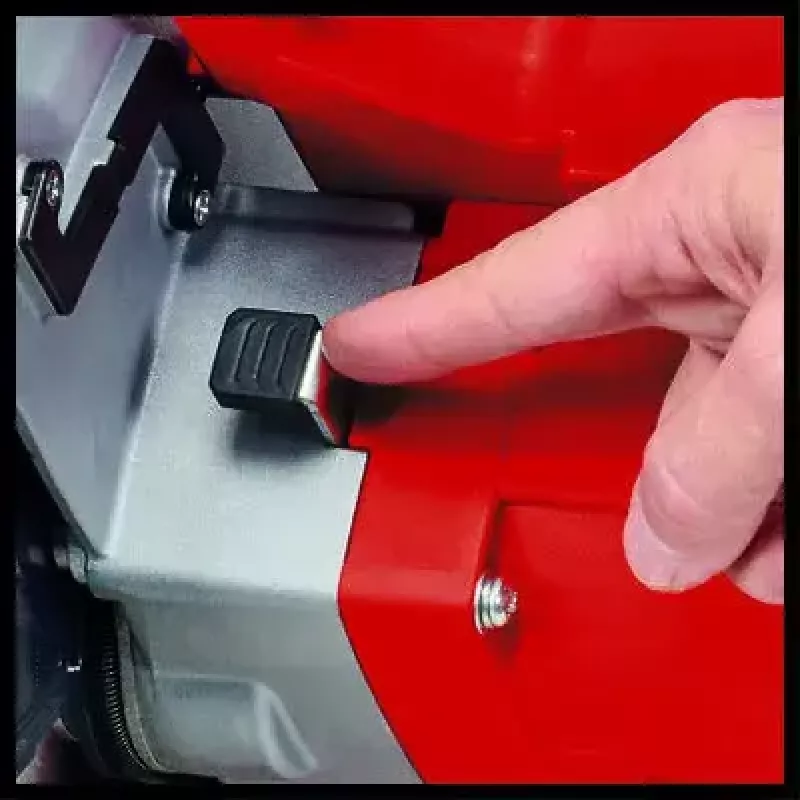

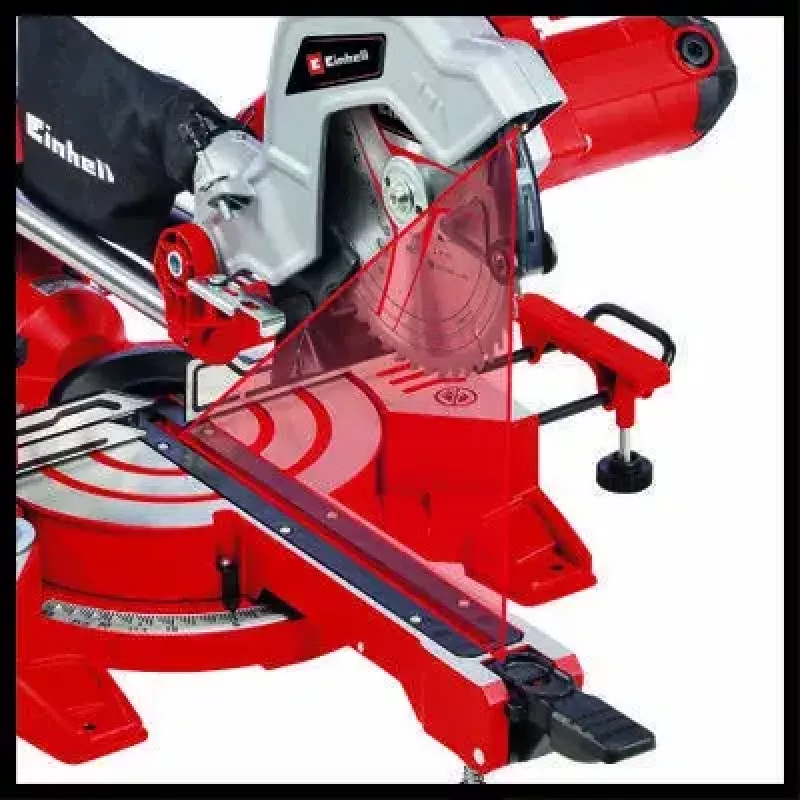

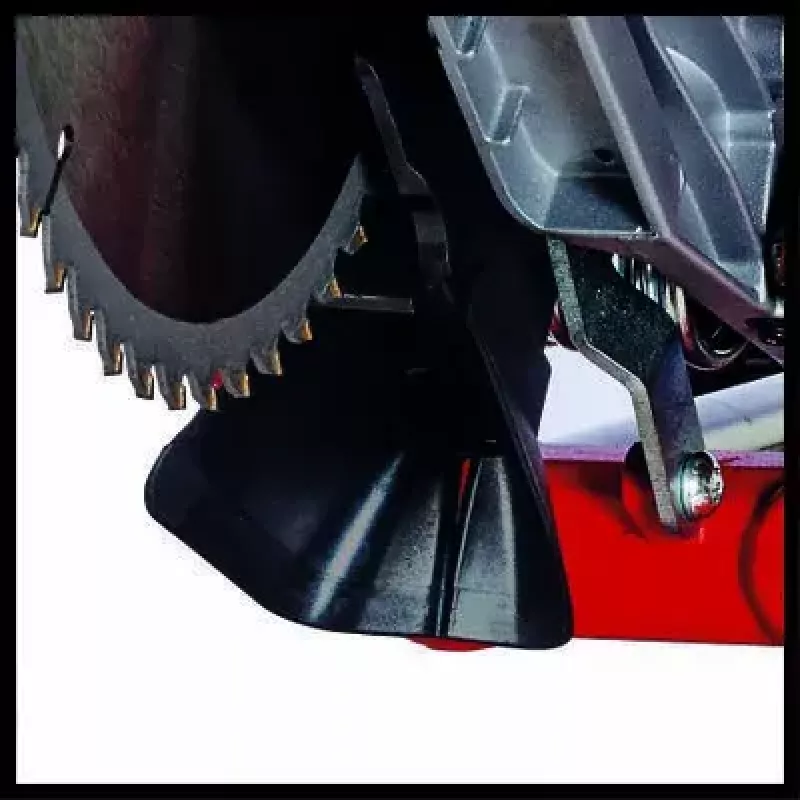

The saw combines a powerful motor with a carbide-tipped blade for clean cuts and a smooth sliding mechanism for larger panels. Precise angle and width scales, quick-lock positions on the turntable and a spindle lock for easy blade changes increase working efficiency. The built-in laser, left/right work supports and dust-funnel behind the blade add convenience and safety during operation.

Suitable for

• Crosscutting and miter cuts in softwoods, hardwoods and composite panels
• DIY projects, home workshop tasks and garage repairs
• Cutting longer workpieces with the sliding feature and side supports

Key specifications

• Brand: EINHELL
• Model: TC-SM 216 (MPN 4300380, EAN 4006825635706)
• Power: 1,600 W
• Rated voltage: 220–240 V AC
• No-load speed: up to 5,200 min⁻¹
• Blade diameter: 216 mm; bore: 30 mm
• Cutting width: up to 305 mm at 90°; up to 210 mm at 45°
• Dimensions (W×D×H): 460 × 790 × 380 mm
• Dust extraction connector: Ø 36 mm; includes dust bag

How to use

Secure the saw on a stable, level surface and connect to a suitable 220–240 V power supply. Fit the workpiece against the fence, use the clamping device to hold it in place for safe cutting, and select the required angle on the turntable or tilt the saw head for miter cuts. For wider boards, use the sliding function and side supports to guide the workpiece. Switch on the laser to align the cut line before powering the saw and advance the blade smoothly through the material. Use the spindle lock to change the blade only after disconnecting power.

Recommendations

Use appropriate personal protective equipment (safety goggles, hearing protection and dust mask). Keep the extractor or dust bag connected when cutting to reduce dust. Verify blade condition and correct fastening before each use and follow the manufacturer’s instructions for maintenance and safe operation.
