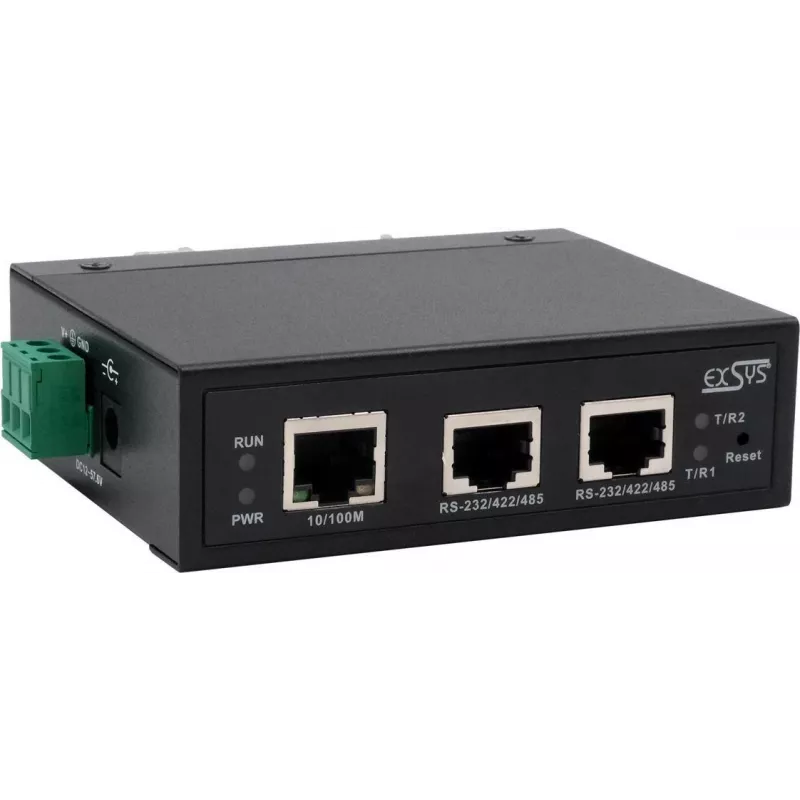

Servidor de dispositivos série Exsys EX-61002 — 2x RS232/422/485, inclui fonte de alimentação

Exsys EX-61002 is a compact serial device server that converts two serial ports to Ethernet, with each port configurable for RS232, RS422 or RS485 operation. Supplied with a power adapter, this device enables legacy serial equipment, industrial controllers, sensors and POS devices to be connected to IP networks for remote access, monitoring and data collection. The EX-61002 supports common serial communication modes and provides a simple way to integrate asynchronous serial devices into modern network infrastructures.

Advantages

The EX-61002 offers flexible port configuration allowing RS232, RS422 or RS485 on each channel, which simplifies integration with a wide range of serial peripherals. Including the power adapter ensures the unit is ready for deployment without additional accessory purchases. Its Ethernet connectivity enables remote management and data retrieval from serial devices, reducing the need for direct physical access. The compact design conserves space in control cabinets or at workstations while maintaining standard serial signal compatibility.

Suitable for

• Connecting industrial controllers and PLCs to an Ethernet network
• Integrating barcode scanners, scales and POS terminals for centralized data collection
• Remote monitoring of sensors and measurement equipment with serial outputs
• Serial device consolidation in SCADA, automation and building management systems

Key specifications

• Two serial ports configurable as RS232, RS422 or RS485
• Ethernet interface for network connectivity
• Includes external power adapter for immediate use
• Supports asynchronous serial communication for typical baud rates used in industrial and commercial devices
• Compact form factor suitable for mounting in cabinets or on work surfaces

How to use

Install the EX-61002 on a stable surface or within a control cabinet and connect the supplied power adapter to a suitable AC outlet. Configure each serial port for the required interface (RS232, RS422 or RS485) and connect the serial devices using the appropriate cabling and terminations. Connect the Ethernet port to the local network via a switch or router. Use the device's network configuration tools or web interface (if available) to assign an IP address and set serial-to-network parameters such as baud rate, parity and stop bits. Once configured, establish TCP/UDP or virtual COM connections from host systems to enable remote access and data exchange with connected serial devices.

Recommendations

The EX-61002 performs best when connected to a stable network and powered by the supplied adapter; verify correct serial mode and termination when using RS422/RS485 to ensure reliable communication. Place the device away from strong electrical interference and secure serial connections to prevent accidental disconnection during operation.
