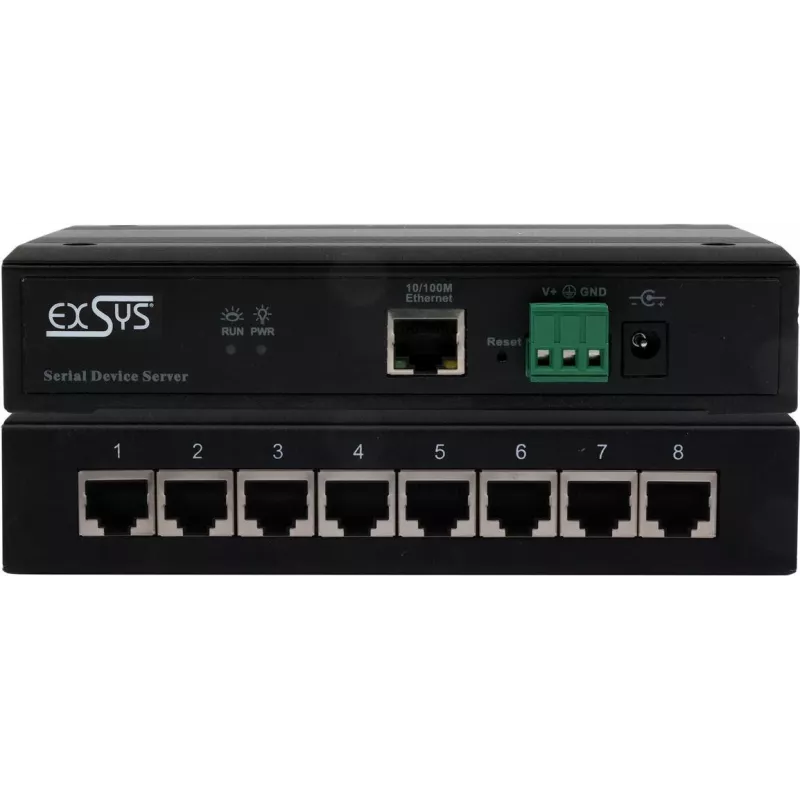

Servidor de dispositivos série Exsys EX-61008 — 8x portas RS232/422/485, inclui fonte de alimentação

Exsys EX-61008 is a serial device server that provides eight configurable serial ports compatible with RS232, RS422 and RS485 standards. Supplied with a power adapter, the unit converts Ethernet network connections into multiple serial interfaces, allowing existing serial equipment to be accessed and managed over IP. The device is suitable for integrating industrial controllers, sensors and legacy instruments into modern networked systems for monitoring, data collection and remote control.

Advantages

The Exsys EX-61008 supports mixed-mode serial operation, enabling each port to be set independently to RS232, RS422 or RS485 as required. Centralized network access reduces the need for point-to-point cabling and simplifies device management. Inclusion of a power adapter ensures immediate deployment without requiring additional power accessories. The metal housing and DIN-rail or desktop mounting options provide installation flexibility in control cabinets and equipment rooms.

Suitable for

• Connecting PLCs and industrial controllers to an Ethernet network
• Remote access to sensors and measurement instruments
• Integration of legacy serial devices into SCADA and monitoring systems
• Serial data logging and centralized serial management

Key specifications

• Number of serial ports: 8 configurable ports
• Supported standards: RS232, RS422, RS485 (per-port configurable)
• Network interface: Ethernet 10/100 Mbps
• Power supply: external power adapter included
• Mounting options: DIN-rail and desktop mounting
• Housing: metal enclosure for industrial environments
• Protocol support: TCP/IP, UDP and common serial-over-IP modes

How to use

Install the device in a dry, ventilated area and secure it to a DIN rail or place it on a stable surface. Connect the Ethernet cable to the network port and attach the supplied power adapter to the device and to mains power. Connect serial devices to the RS232/RS422/RS485 ports using suitable cabling and set each port mode according to the connected equipment. Configure network parameters and serial port settings using the device’s web interface or management utility, then test communication from a PC or server to verify connectivity and data exchange.

Recommendations

For reliable serial communication, match port signalling (RS232/RS422/RS485), baud rate, parity and flow control settings on both the device server and connected equipment. Use shielded cables where significant electrical noise is present and follow grounding practices recommended for industrial networks. Regularly update firmware and store configuration backups to minimize downtime during maintenance.
