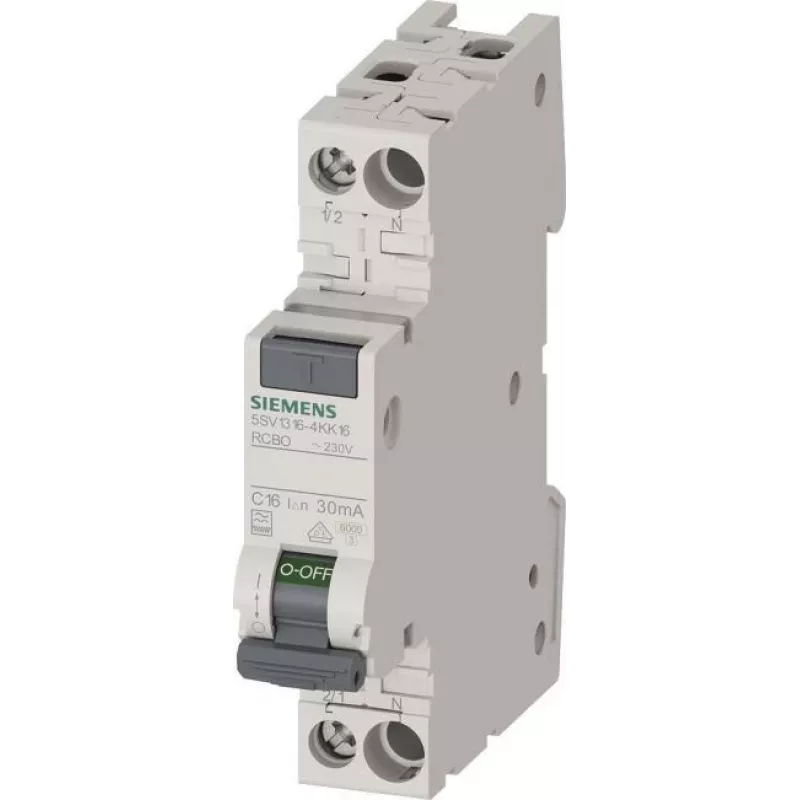

Siemens 5SV1316-4KK16 RCBO tipo F 30mA C16 1P+N 6kA

The Siemens 5SV1316-4KK16 is a compact residual current circuit breaker with overcurrent protection (RCBO) designed for reliable protection of electrical circuits. This Type F device is sensitive to high-frequency residual currents and is ideal for use with modern electronic equipment.

Advantages

Combines overcurrent and residual current protection in a single device, saving space in the distribution board. Type F ensures compatibility with frequency converters and other non-sinusoidal current sources. Easy DIN rail mounting and screw terminals for secure wiring.

Suitable for

• Residential and commercial electrical installations
• Circuits with frequency converters, UPS systems, or LED lighting
• Protection against sinusoidal and pulsed residual currents

Key specifications

• Rated current: 16 A
• Rated residual current: 30 mA
• Tripping characteristic: C
• Number of poles: 1P+N
• Rated voltage: 230 V AC
• Breaking capacity: 6 kA
• Mounting: DIN rail 35 mm
• Width: 2 module spaces
• Degree of protection: IP20 (terminals)
• Operating temperature: -25 to +45 °C
• Standards: IEC/EN 61009-1

Recommendations

For optimal performance, ensure proper tightening torque and use appropriate cable cross-sections. This device is suitable for use in TN, TT, and IT systems.
