SIEMENS 5SV36468 disjuntor diferencial, tipo A, 63 A, 300 mA, 4 polos, 400 V, seletivo

Selective RCCB with a rated residual operating current of 300 mA and 63 A rated current, designed for reliable protection in three-phase systems up to 400 V.

Overview

The SIEMENS 5SV36468 is a 4-pole (3P+N) residual current circuit breaker (RCCB) of Type A, suitable for detecting AC and pulsating DC residual currents. It is selective (time-delayed) to ensure coordination with downstream protective devices, making it ideal for fire protection and system availability in industrial and commercial installations.

What stands out

• Selective tripping behavior prevents unwanted shutdowns of healthy circuits.
• Type A detection covers AC and pulsating DC residual currents.
• Rated current of 63 A and residual operating current of 300 mA suit high-load circuits.
• Compact 4-module width (72 mm) saves space on DIN rail.
• Rated conditional short-circuit current of 10 kA ensures robustness.

Technical details

• Device type: Residual Current Circuit Breaker (RCCB)
• Type of residual current: Type A
• Number of poles: 4 (3P+N)
• Rated current (In): 63 A
• Rated residual operating current (IΔn): 300 mA
• Rated voltage (Un AC): 400 V
• Rated frequency: 50/60 Hz
• Selectivity: Selective (time-delayed)
• Rated conditional short-circuit current (Inc): 10 kA
• Rated impulse withstand voltage (Uimp): 4 kV
• Mounting type: DIN rail

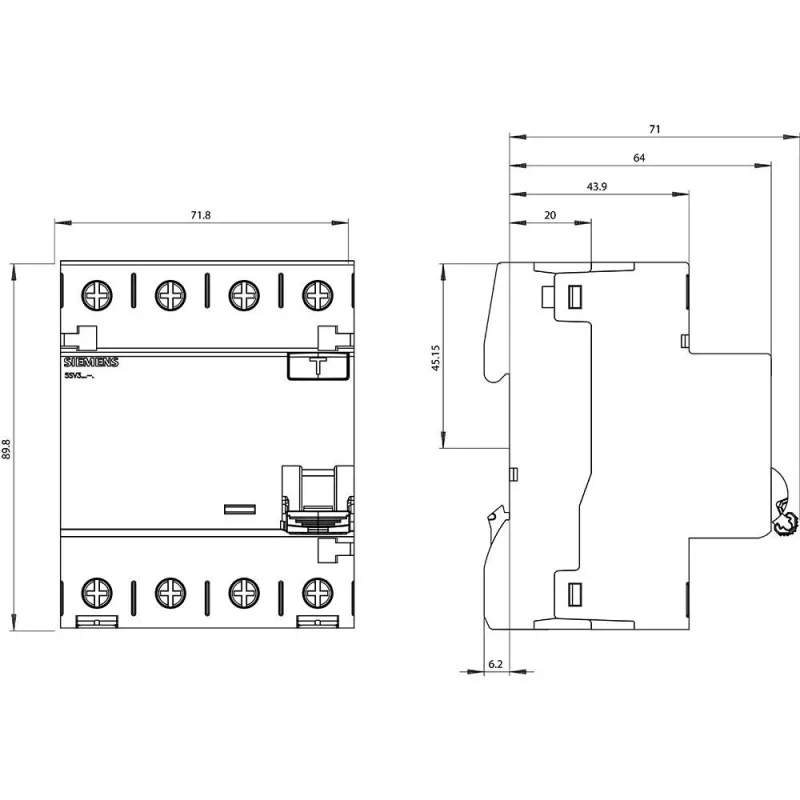

• Module width: 4 MW (72 mm)
• Degree of protection: IP20 (terminals), IP40 (enclosure)
• Operating temperature range: -25 to +45 °C
• Terminal type: Box terminal
• Terminal capacity (solid/stranded): 0.75 - 35 mm²
• Standards: IEC 61008-1

Our verdict

A dependable selective RCCB for applications where continuity of supply and fire protection are critical. Its Type A sensitivity and high current rating make it a solid choice for demanding electrical installations.
