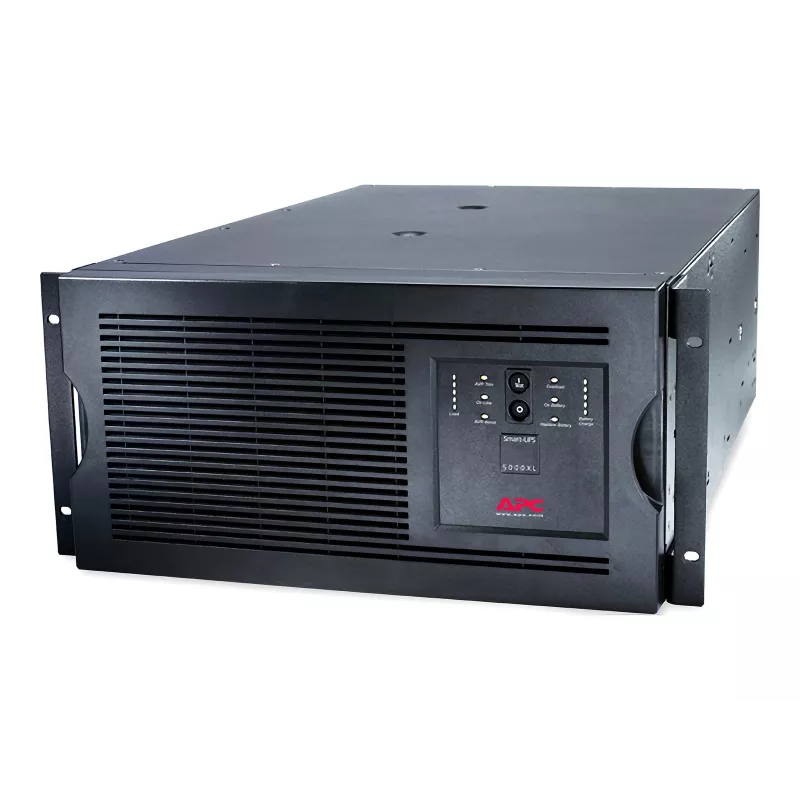

Sistema UPS APC Smart-UPS 5000VA 208V Rackmount/Tower

The APC Smart-UPS SUA5000RMT5U is a high-performance line-interactive UPS designed for critical server, network, and telecommunications equipment. It provides reliable battery backup and surge protection for 5000VA / 4kW loads, ensuring uptime and data integrity. This UPS features automatic voltage regulation (AVR), a multi-function LCD display, and SmartSlot management interface for advanced monitoring and control.

Advantages

Reliable line-interactive topology with automatic voltage regulation (boost and trim) corrects under/over-voltage conditions without switching to battery, extending battery life. The multi-function LCD status and control console provides real-time UPS status and configuration. SmartSlot allows for optional network management cards (e.g., AP9630) for remote monitoring via Ethernet. High efficiency up to 98% in online mode reduces energy costs.

Suitable for

• Data centers and server rooms requiring high-density power protection
• Network closets with critical switches, routers, and patch panels
• Telecommunications equipment and industrial control systems
• Medical imaging and diagnostic equipment

Key specifications

• UPS Topology: Line-Interactive
• Output Power Capacity: 5000 VA / 4000 Watts
• Nominal Output Voltage: 208V
• Output Connections: (4) NEMA L6-20R
• Input Connection: NEMA L6-15P

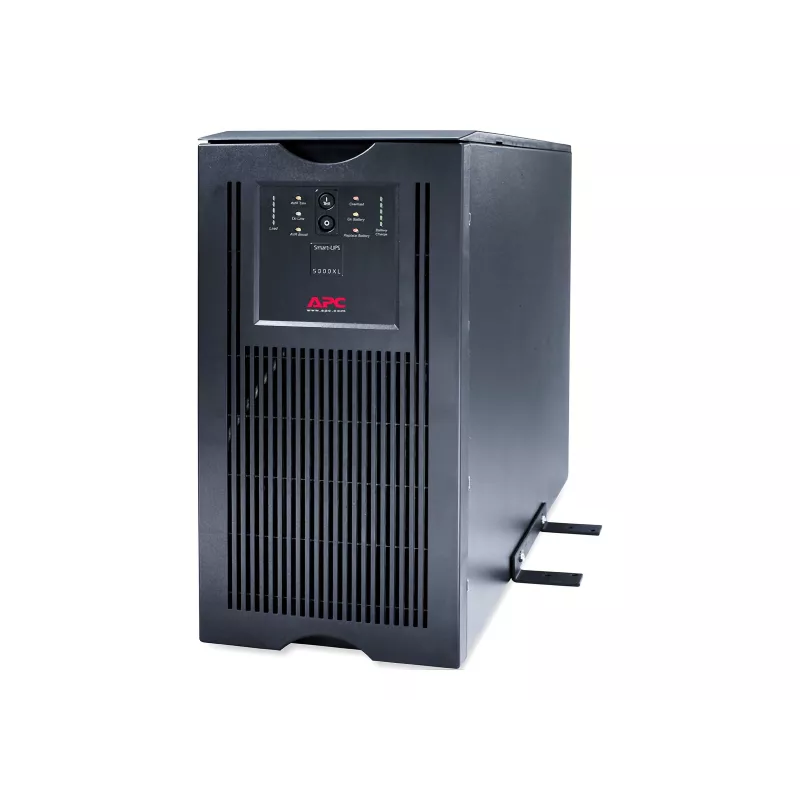

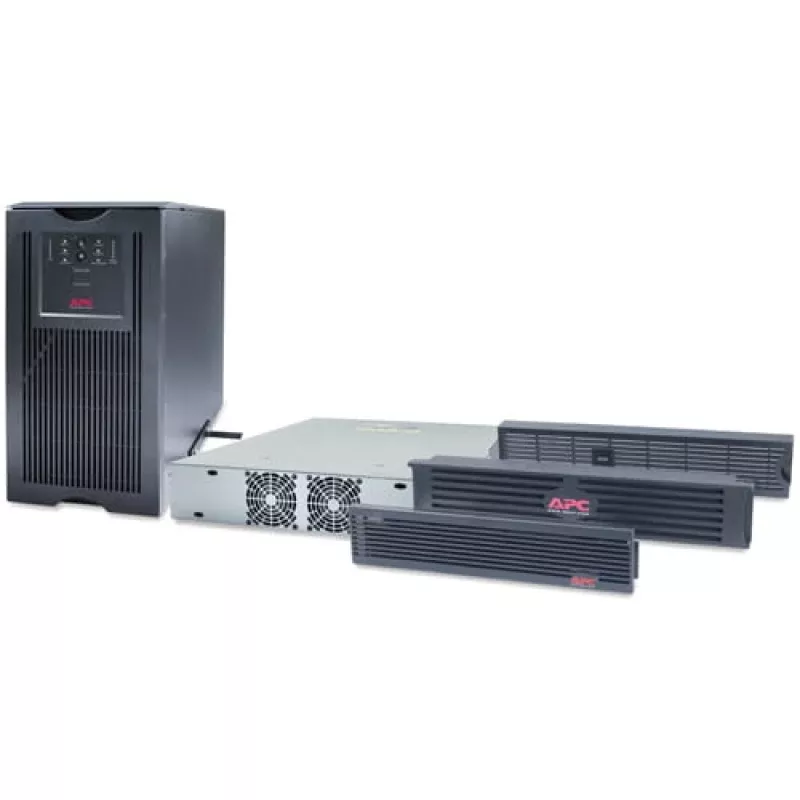

• Form Factor: Rackmount / Tower (5U rack height)
• Waveform Type: Sine wave
• Battery Type: Maintenance-free sealed Lead-Acid battery
• Typical Recharge Time: 3 hours
• Management Interface Ports: USB, SmartSlot
• Surge Energy Rating: 459 Joules
• Efficiency (Online Mode): Up to 98%
• Runtime (at 50% Load): 16.5 minutes (450W)
• Runtime (at 100% Load): 5.5 minutes (900W)
• Display Type: Multi-function LCD status and control console
• Automatic Voltage Regulation (AVR): Yes (Boost and Trim)
• Operating Temperature Range: 0 - 40 °C

Recommendations

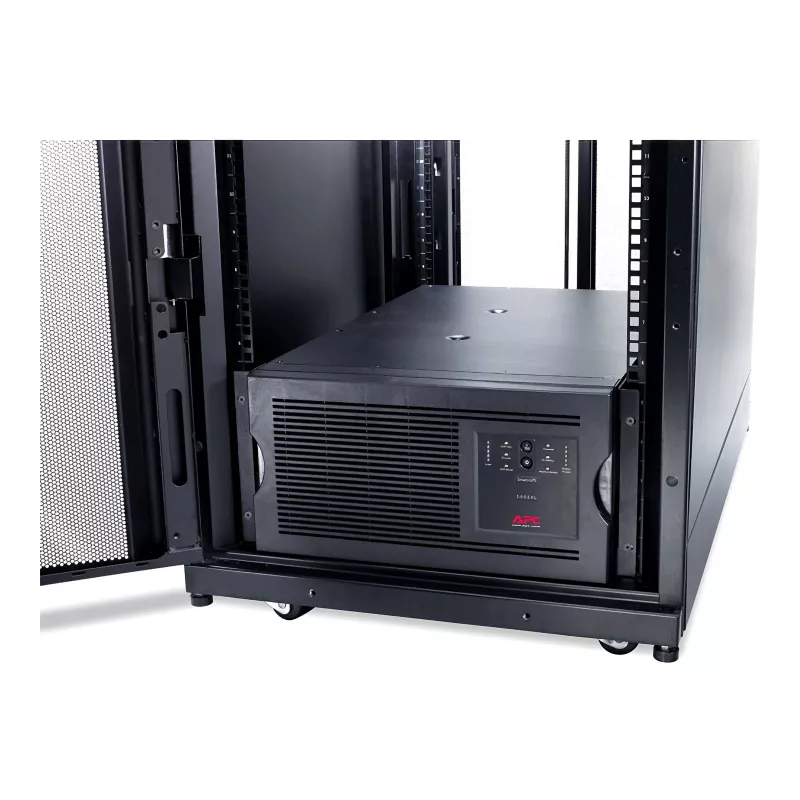

For optimal performance, install the UPS in a well-ventilated rack environment. Use the SmartSlot to install an optional network management card for remote monitoring and shutdown. Regularly test the battery and replace every 3-5 years depending on usage.
