Sortido de terminais tubulares parcialmente isolados Cimco 187602, 500 unid., 0,5-2,5 mm², DIN 46228-4

Wire end sleeve assortment with 500 partially insulated sleeves in five DIN-standard colours. The tin-plated electrolytic copper sleeves cover conductor sizes from 0.5 mm² to 2.5 mm², making reliable, gas-tight connections in control cabinet and industrial wiring.

Advantages

Polypropylene insulation sleeves provide strain relief and protect the conductor from bending stress. The transparent plastic box keeps the five sizes organised and ready for daily use.

Suitable for

• Electrical wiring in control cabinets
• Industrial machinery and panel building
• Terminating stranded copper conductors

Key specifications

• 500 pieces: 100 each of 0.5 mm² (white), 0.75 mm² (grey), 1.0 mm² (red), 1.5 mm² (black), 2.5 mm² (blue)
• Partially insulated, DIN 46228 Part 4 colour coding
• Tin-plated electrolytic copper, polypropylene insulation
• Max. operating temperature +105 °C, max. voltage 600 V

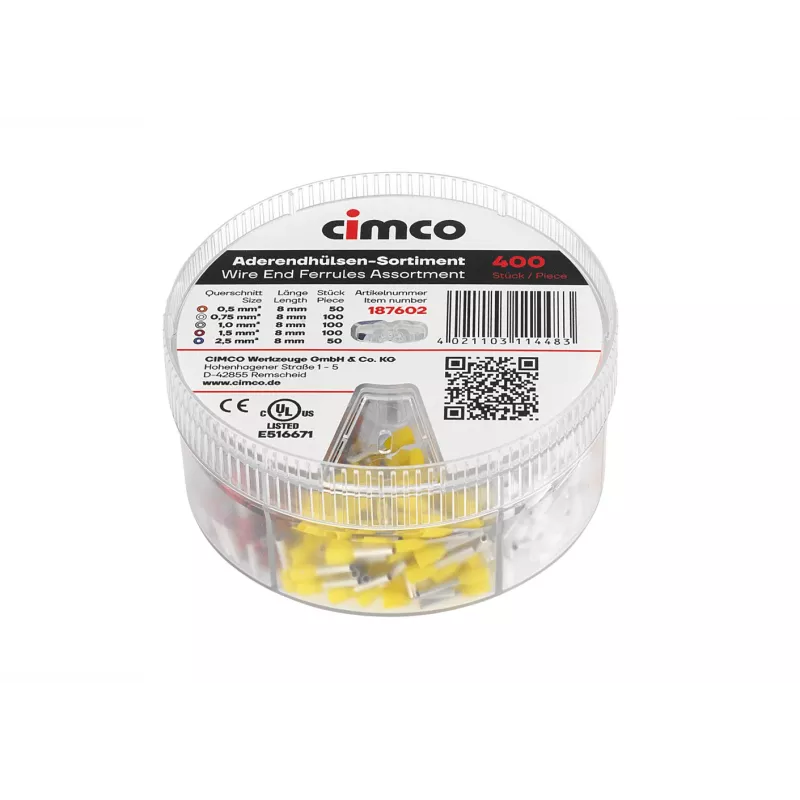

• Packaging: transparent plastic assortment box

Recommendations

Use with a crimping tool matched to the sleeve size for a secure, vibration-resistant connection.
