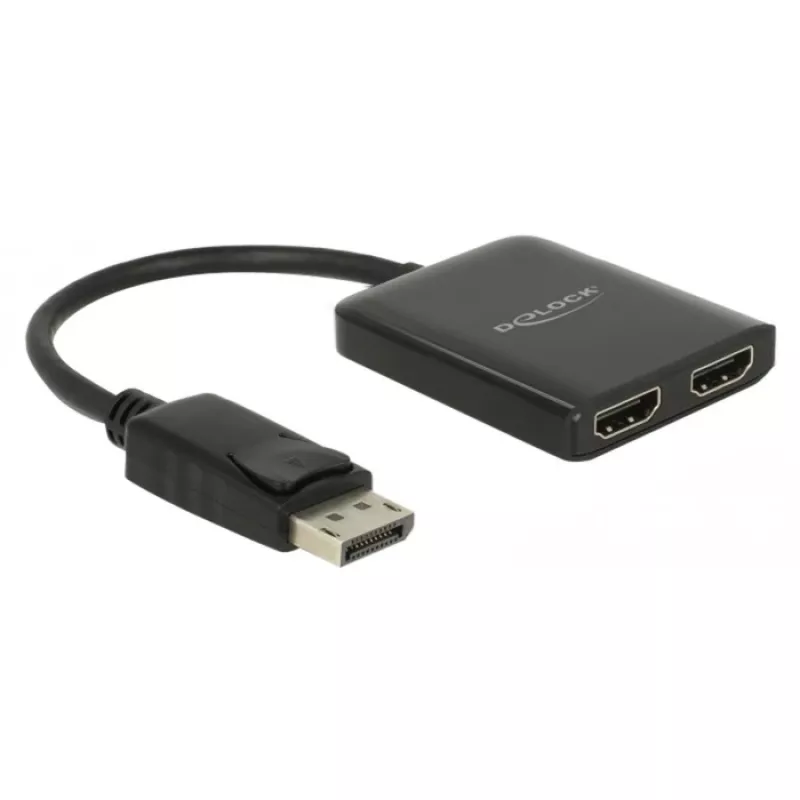

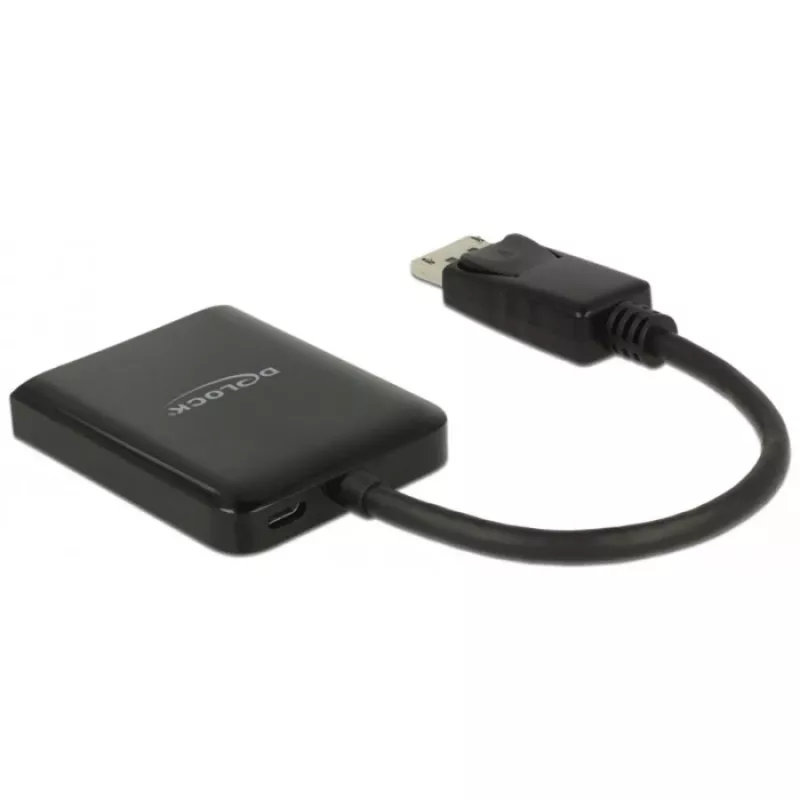

Splitter de vídeo DeLOCK 87769 DisplayPort para 2x HDMI

The DeLOCK 87769 video splitter receives a DisplayPort signal from a PC or laptop and splits it to two HDMI displays, allowing one DisplayPort output to drive two HDMI monitors. The compact unit supports up to 3840 x 2160 pixel resolution and comes in a lightweight black plastic housing with a short integrated cable (0.2 m).

Advantages

This MST hub supports DisplayPort Multi-Stream Transport (MST) for extended desktop configurations, enabling the connected HDMI monitors to be controlled individually in Windows and combined into a single large desktop if required. The small footprint (49 mm x 61 mm x 11 mm) and 5 V input voltage make it easy to install and power in typical multimedia setups.

Suitable for

• Extending a laptop or PC desktop across two HDMI monitors
• Connecting one DisplayPort source to two HDMI displays for multitasking
• Office workstations, trading desks, or home setups requiring dual displays

Key specifications

• Model: DeLOCK 87769
• Input: DisplayPort
• Outputs: 2 × HDMI
• Maximum resolution: 3840 × 2160 pixels
• Cable length: 0.2 m
• Housing colour: Black
• Dimensions: 49 mm × 61 mm × 11 mm
• Supply voltage: 5 V AC
• MPN: 87769
• EAN: 4043619877690

How to use

Connect the splitter's DisplayPort plug to the DisplayPort output on your PC or laptop, then connect each HDMI cable from the splitter outputs to the HDMI inputs on your monitors. Power the splitter if an external 5 V adapter is required by your setup. Configure the displays in your operating system display settings; in Windows you can set each monitor individually or span them into an extended desktop using the MST feature.

Recommendations

For reliable operation at maximum resolution, use high-quality HDMI cables and ensure the source device supports DisplayPort MST and the required output resolution. If one monitor does not display, check the OS display settings and the cable connections.
