Striebel & John campo de distribuição 9RE FV19S 2CPX054006R9999

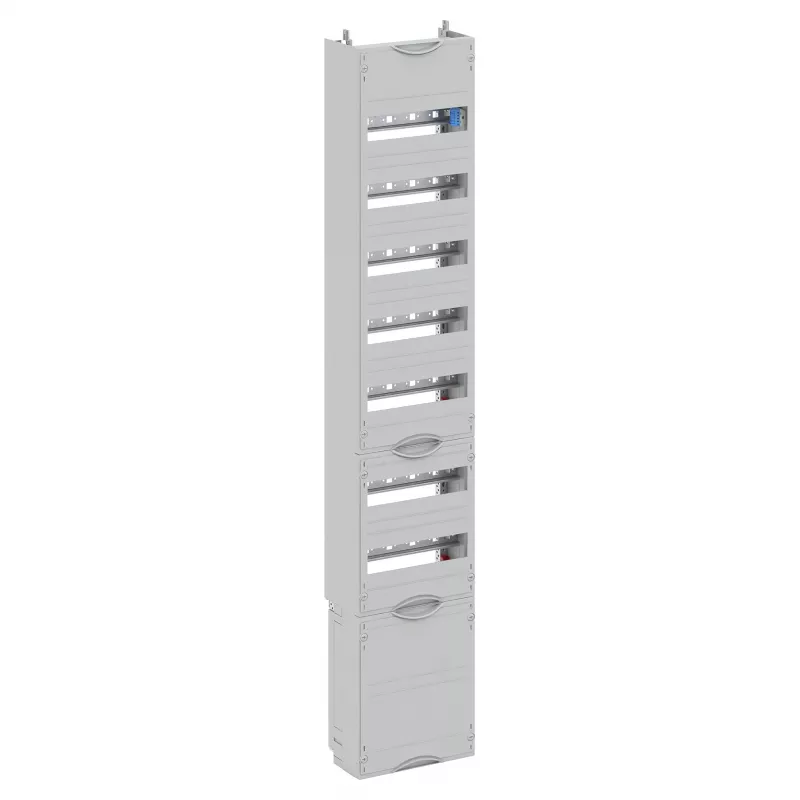

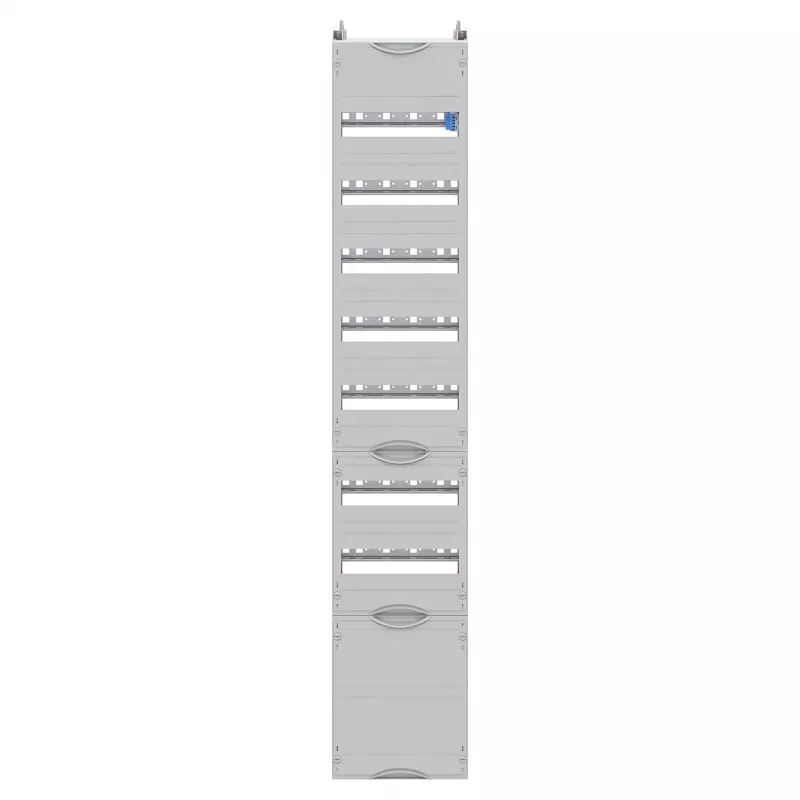

The Striebel & John Distribution Panel Field 9RE FV19S (2CPX054006R9999) is a high-quality modular distribution field designed for main and sub-distribution applications. Part of the System pro E power series, it offers 9 rows with 12 module widths each, totaling 108 TE. The field features a 5-pole busbar system rated at 250 A, ensuring reliable power distribution. Its robust construction from galvanized steel sheet and plastic guarantees durability and long service life.

Advantages

This distribution panel field provides flexible configuration options for various electrical installations. The 250 A busbar system supports high current loads, while the 9-row design allows for extensive circuit organization. The field is compatible with Striebel & John/ABB TwinLine and A-series cabinets, making it a versatile choice for professionals.

Suitable for

• Main and sub-distribution in residential, commercial, and industrial buildings
• Metering applications
• Integration into TwinLine and A-series cabinet systems

Key specifications

• Product Type: Distribution Panel Field
• Number of Rows: 9 RE
• Module Width per Row: 12 TE
• Total Module Units: 108 TE
• Busbar System: 5-pole (L1, L2, L3, N, PE)
• Rated Busbar Current: 250 A
• Field Width: 250 mm (1 field unit)
• Mounting Type: Modular, for cabinet installation
• Material: Galvanized steel sheet, plastic
• Protection Class: IP20
• Standards: DIN VDE 0603-1, IEC 61439-1/-2
• Color: Metallic / Grey

Recommendations

For optimal performance, ensure proper installation by a qualified electrician. Verify compatibility with existing cabinet systems before ordering.
