Striebel & John DA39CY caixa de distribuição universal completa AP3Pkt.A392Z1S+2RE1V

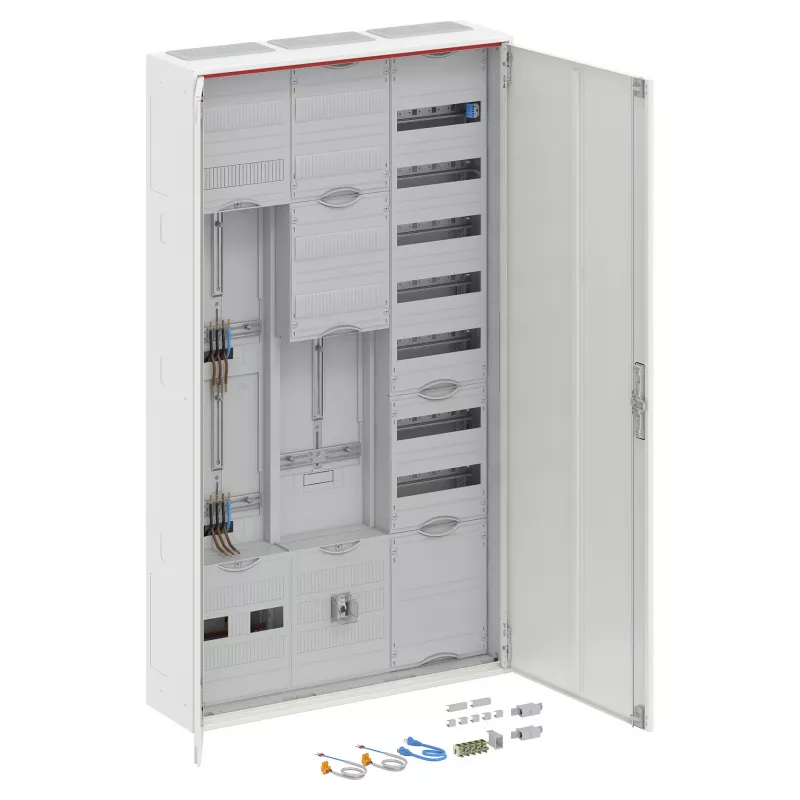

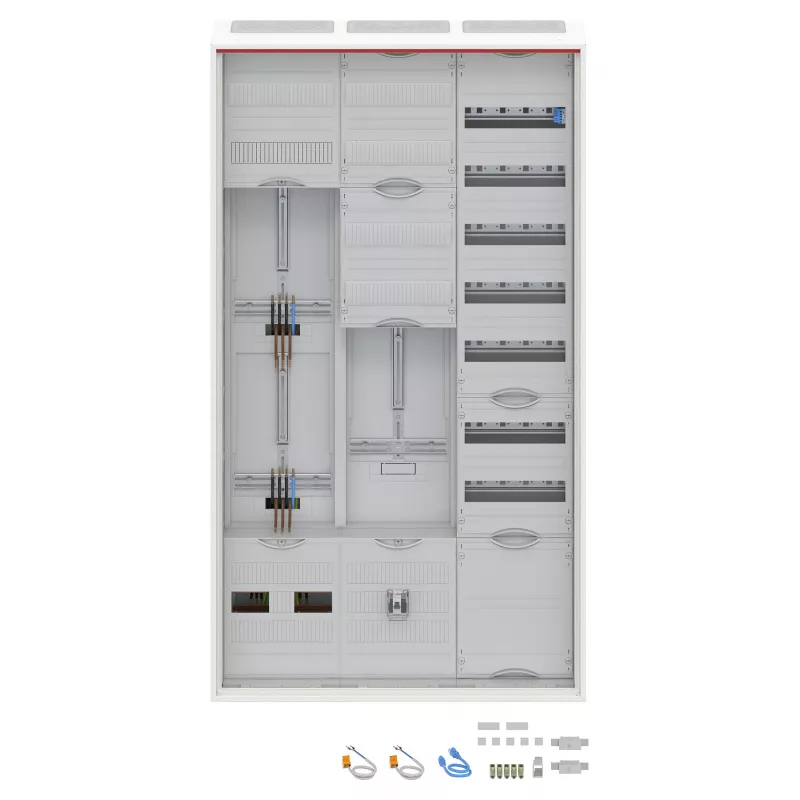

The Striebel & John DA39CY is a high-quality complete universal distribution cabinet designed for residential and light commercial electrical installations. This surface-mounted cabinet offers a robust and reliable solution for meter and distribution applications, complying with DIN VDE 0603-1 and VDE-AR-N 4100 standards.

Advantages

This distribution cabinet provides a pre-configured, ready-to-install solution with integrated wiring space and a 5-pole busbar system. The IP44 protection class makes it suitable for indoor and outdoor use, while the 3-point rod locking ensures secure access. The cabinet is prepared for overvoltage protection devices, enhancing safety and flexibility.

Suitable for

• Residential electrical distribution
• Light commercial buildings
• Meter cabinets for eHZ meters
• Surface-mounted installations

Key specifications

• Product Type: Complete Universal Distribution Cabinet
• Mounting Type: Surface-mounted (AP)
• Number of Meter Fields: 2
• Number of Distribution Fields: 1
• Number of Reserve Fields: 1
• Number of Device Rows: 2
• Material: Sheet steel
• Protection Class: IP44
• Colour: White (RAL 9010)
• Locking Mechanism: 3-point rod locking
• Number of Doors: 2
• Rated Operational Voltage: 230/400 V AC
• Rated Current (max): 63 A
• Meter Mounting Type: BKE-I (for eHZ meters)
• Cable Entry: Top and bottom via flange plates
• Wiring Space: Integrated side wiring space
• Standards Compliance: DIN VDE 0603-1, VDE-AR-N 4100
• Busbar System: 5-pole (L1, L2, L3, N, PE)
• Overvoltage Protection: Prepared for overvoltage protection device

Recommendations

For optimal performance, ensure proper installation by a qualified electrician. This cabinet is designed to accommodate standard eHZ meters and modular devices. Use appropriate cable glands for cable entry.
