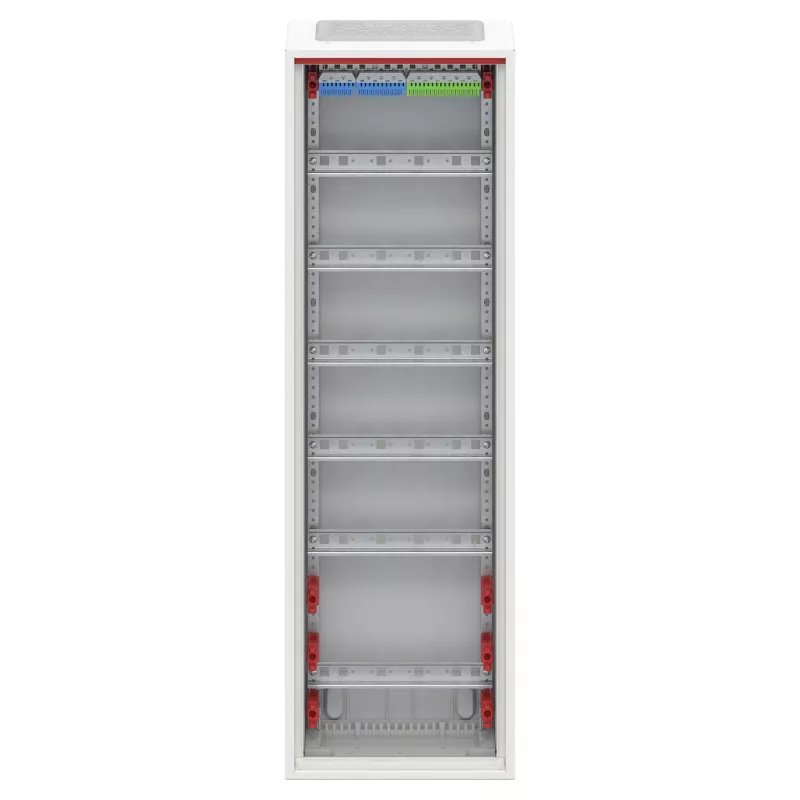

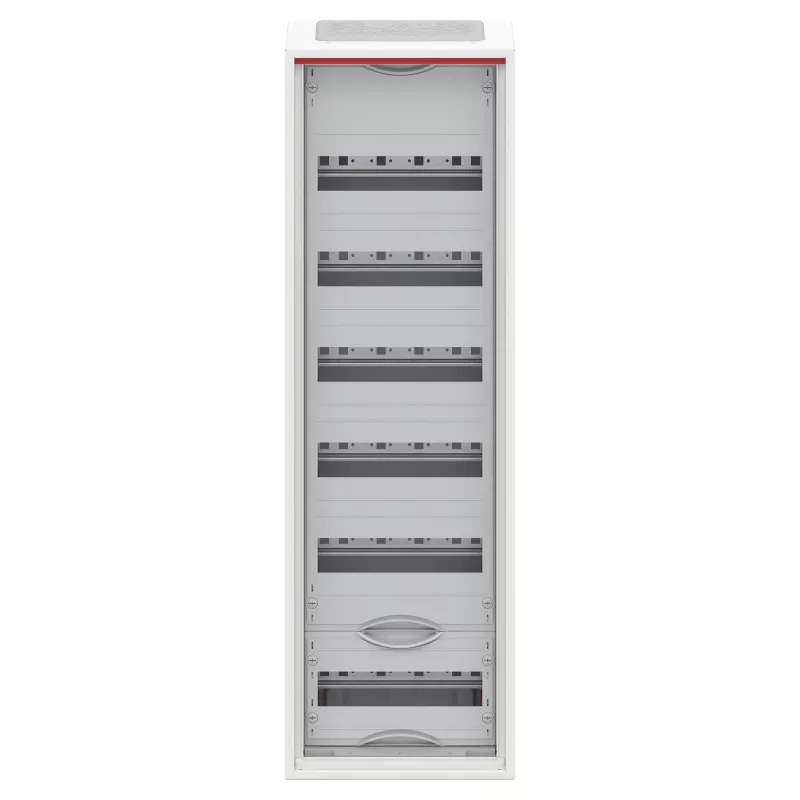

Striebel & John quadro pequeno de sobrepor 1FB 6 filas CA16V

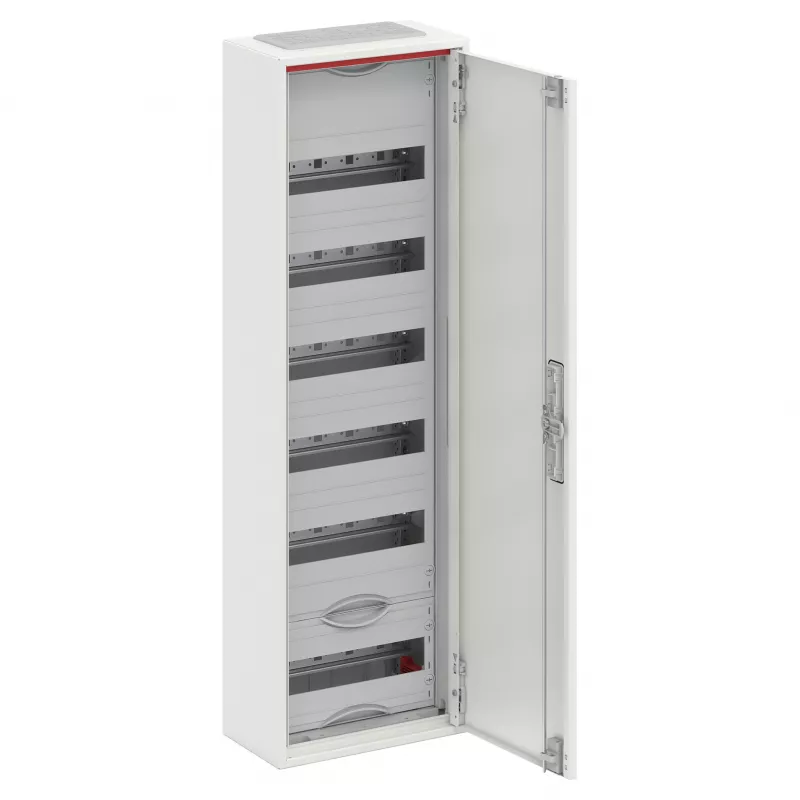

The Striebel & John Kleinverteiler Aufputz 1FB 6-reihig CA16V is a high-quality surface-mounted distribution board designed for efficient and safe electrical distribution in residential and commercial buildings. This 1-field enclosure offers 6 rows with 12 modules per row, providing a total of 72 modules for accommodating circuit breakers, RCDs, and other DIN rail components. Manufactured from durable plastic (polystyrene) in white (RAL 9010), it features an opaque door and complies with DIN VDE 0603-1 and DIN 43871 standards.

Advantages

Robust construction with IP30 protection and IK07 impact resistance ensures long-lasting performance. The included PE/N terminals simplify installation, while top, bottom, and side knockouts offer flexible cable entry options. The 650°C glow wire test confirms high fire safety.

Suitable for

• Electrical distribution in residential buildings
• Commercial and light industrial applications
• Installation of DIN rail components such as MCBs, RCCBs, and contactors

Key specifications

• Mounting Type: Surface-mounted
• Number of Rows: 6
• Modules per Row: 12
• Total Modules: 72
• Protection Class: IP30
• Impact Resistance: IK07
• Material: Plastic (Polystyrene)
• Door Type: Opaque
• Number of Doors: 1
• Colour: White (RAL 9010)
• Rated Voltage: 400 V AC
• Rated Current (max): 63 A
• Glow Wire Test: 650 °C
• PE/N Terminals: Included
• Standards: DIN VDE 0603-1, DIN 43871
• Cable Entry: Top, bottom, and side knockouts
• Field Count: 1-field

Recommendations

For optimal performance, pair this distribution board with Striebel & John accessories and ensure installation by a qualified electrician. Verify local regulations for compliance.
